GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention

GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention
GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention

Large Image :  GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE,ISO9001-2015
Model Number: GM100-445
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day

GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention

Description
Material: 100% HDPE Plastic Thickness: 1.2-1.5mm
Surface: Smooth Or Textured Surface Tensile Strength: 25kN/m
Standard: ASTM; GB Standard; Peel Strength: 14.2 KN/m
Height: 100mm Color: Black;Yellow;Green
Welding Distance: 445mm Density: 0.950 G/cm3
Certificate: CE;ISO;ASTM
Highlight:

HDPE geocell for slope protection

,

GM150 textured geocell soil retention

,

medium load support geocell

GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention



GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax is a specialist in engineering and manufacturing high-performance geocells and geosynthetic solutions, where superior durability and eco-conscious design are core to our product development for soil stabilization and ground reinforcement.

Our HDPE geocell systems are precision-engineered to optimize load distribution, strengthen slope stability and deliver highly effective erosion control, serving as a reliable choice for a full range of civil and infrastructure projects—including road construction, slope and embankment reinforcement, retaining structure builds and green engineering initiatives.

Crafted from premium high-density polyethylene and produced under stringent, full-process quality control, our geocells boast industry-leading durability: engineered to withstand the harshest environmental conditions, from extreme temperatures and persistent UV exposure to abrasive soil and high moisture, they maintain uncompromised structural integrity and consistent performance for an extended service life, free from premature degradation or deformation. What’s more, our products embrace sustainable, eco-friendly principles: by leveraging structural confinement technology paired with natural fill materials, they eliminate the need for large volumes of high-energy-consumption building materials, significantly reducing project carbon emissions and material waste. This dual advantage delivers a ground support solution that is not only long-lasting and low-maintenance but also cost-effective and carbon-efficient, perfectly aligning with the core demands of green infrastructure and sustainable engineering.


SPECIFICATIONS


Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18















































DETAILED PHOTOS

GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention 0 GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention 1

GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention 2 GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention 3

APPLICATIONS

GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention 5

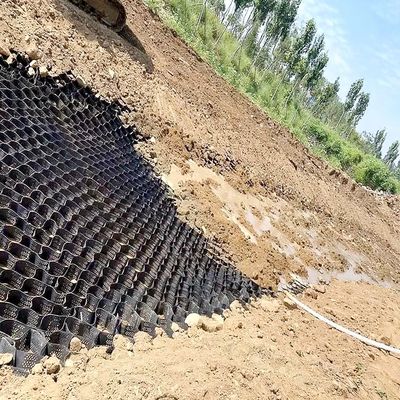

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

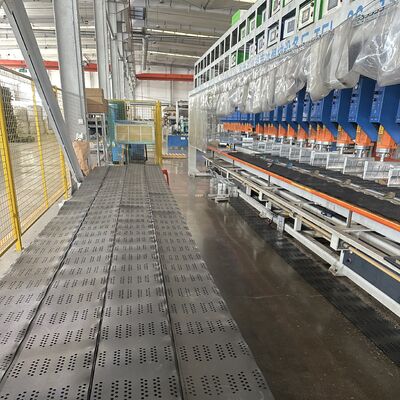

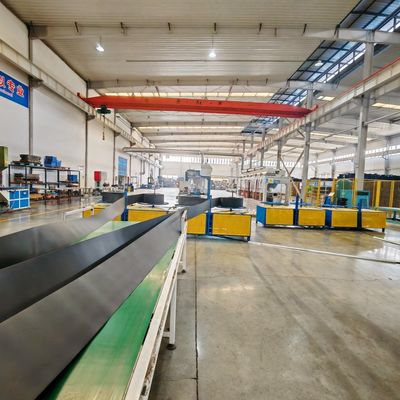

PRODUCTION LINE

GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention 8

INVENTION AND TESTING

GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention 9



PRODUCT AREA

GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention 10

FAQ:

Can geocells be reused?

In some temporary applications, geocells can be removed and reused if not damaged.


What thickness is commonly used for geocells?

Typical sheet thickness ranges from 1.1 mm to 1.8 mm, depending on project requirements.


How do geocells compare to concrete structures?

Geocells offer a flexible, lighter, and more cost-effective alternative to rigid concrete systems.


Can geocells be installed on steep slopes?

Yes. With proper anchoring and design, geocells can be installed on steep inclines.


Do geocells require maintenance?

Geocell systems generally require minimal maintenance after installation.

GM150 445 Textured Geocell For Medium Load Support Slope Protection Soil Retention 11
