GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution

GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution
GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution

Large Image :  GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE,ISO9001-2015
Model Number: GM200-445
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day

GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution

Description
Material: 100% HDPE Plastic Thickness: 1.2-1.5mm
Surface: Smooth Or Textured Surface Tensile Strength: 25kN/m
Standard: ASTM; GB Standard; Peel Strength: 14.2 KN/m
Height: 200mm Color: Black;Yellow;Green
Welding Distance: 445mm Density: 0.950 G/cm3
Certificate: CE;ISO;ASTM
Highlight:

HDPE geocell for slope stability

,

GM200 geocell load distribution

,

HDPE cellular system high stress

GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution



GEOMAX® GEOCELL PRODUCT INTRODUCTION


GeoMax is a premier designer and manufacturer of high-performance geocell and geosynthetic solutions, where superior durability and eco-friendly design are embedded into every product, delivering professional soil stabilization and ground reinforcement for diverse engineering projects worldwide.

Our HDPE geocell systems are precision-engineered to optimize load distribution, fortify slope stability and achieve highly effective erosion control, and they are widely and reliably applied in a full spectrum of civil, infrastructure and ecological projects. These include low-volume rural and high-traffic urban road construction, highway subgrade reinforcement, steep slope stabilization for mountainous areas, riverbank and coastal embankment erosion control, landfill site foundation reinforcement, retaining wall support for industrial and residential zones, as well as green engineering initiatives like ecological slope restoration and sponge city construction.

Crafted from premium high-density polyethylene and produced under stringent full-process quality control, our geocells feature industry-leading durability that stands up to the harshest environmental conditions: extreme temperature fluctuations, prolonged UV exposure, corrosive soil and water, heavy mechanical load and frequent freeze-thaw cycles. They maintain uncompromised structural integrity, resist deformation and degradation, and deliver consistent, reliable performance for decades, ensuring long-term project stability with minimal maintenance. What’s more, our products adhere to rigorous sustainable and eco-friendly principles: by leveraging advanced structural confinement technology paired with locally sourced natural fill materials (e.g., sand, gravel, soil), they eliminate the need for large quantities of high-energy-consumption, non-recyclable building materials, significantly reducing project carbon emissions, material transportation costs and construction waste. This dual advantage of durability and eco-friendship makes our geocells a cost-effective, low-carbon solution that not only guarantees long-term geotechnical stability but also fully aligns with the development concepts of green infrastructure, sustainable construction and ecological protection.

SPECIFICATIONS


Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18















































DETAILED PHOTOS

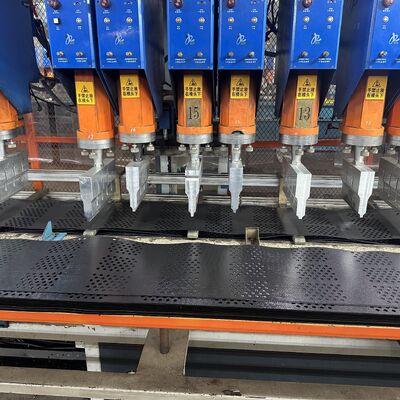

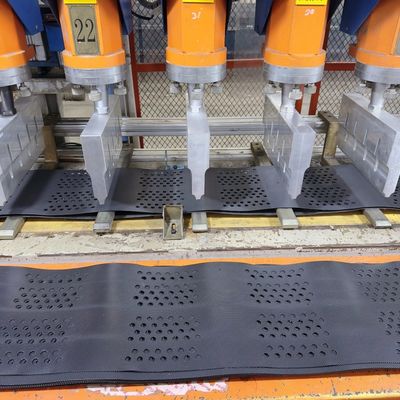

GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution 0 GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution 1

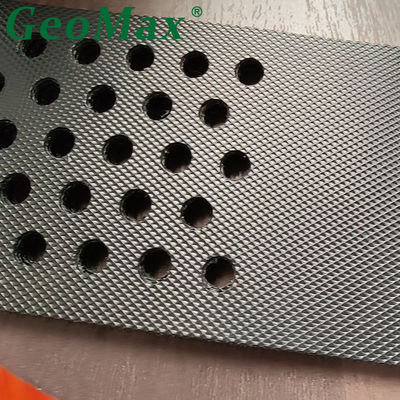

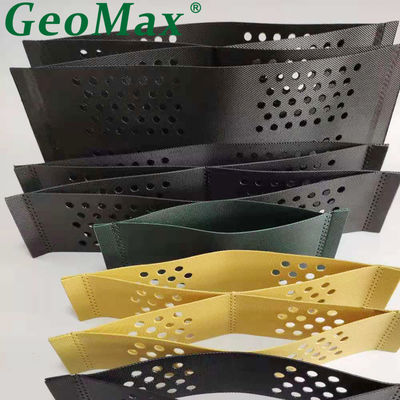

GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution 2 GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution 3

APPLICATIONS

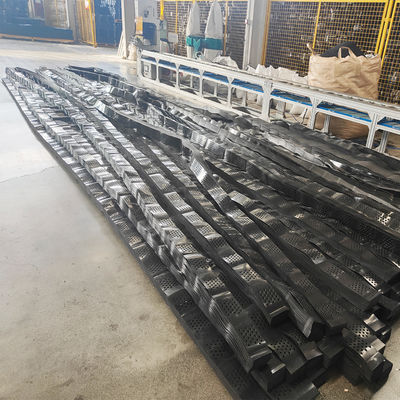

GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution 5

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution 8

INVENTION AND TESTING

GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution 9



PRODUCT AREA

GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution 10

FAQ:

Are geocells suitable for parking areas?

Yes. They are widely used in parking lots, access roads, and load-bearing pavements.


Can vegetation grow through geocells?

Yes. The open-cell structure allows roots to develop naturally.


How do geocells improve slope stability?

They prevent soil slippage by creating a three-dimensional confinement network.


Are geocells cost-effective?

Yes. They reduce material use, construction time, and long-term maintenance costs.


Can geocells be combined with geogrids?

Yes. Combining geocells and geogrids can further enhance reinforcement performance.

GM200 445 HDPE Cellular System For High Stress Slopes Long Term Stability Load Distribution 11
