GM150 445 HDPE Geocell For Erosion Control Root Development Green Infrastructure

Large Image : GM150 445 HDPE Geocell For Erosion Control Root Development Green Infrastructure

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM150-445

Payment & Shipping Terms:

Minimum Order Quantity:	3000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

GM150 445 HDPE Geocell For Erosion Control Root Development Green Infrastructure

Description

Material:	100% HDPE Plastic	Thickness:	1.2-1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard；	Peel Strength:	14.2 KN/m
Height:	150mm	Color:	Black;Yellow;Green
Welding Distance:	445mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM
Highlight:	HDPE geocell for erosion control , green infrastructure geocell grid , geocell for root development

GM150 445 HDPE Geocell For Erosion Control Root Development Green Infrastructure

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax produces high-performance HDPE geocells and geosynthetic solutions for soil stabilization and ground reinforcement, built with unmatched durability and eco-focused design at their core.

Engineered for optimal load distribution, strong slope stability and efficient erosion control, our products are proven for use in urban/rural roads, highway subgrades, mountain slopes, river/coastal embankments, landfill foundations, retaining walls, ecological restoration and sponge city projects.

Crafted from premium HDPE and rigorously quality-checked, our geocells stand up to extreme temperatures, UV exposure, corrosion and freeze-thaw cycles—offering long service life, deformation resistance and low upkeep for enduring performance. Designed for sustainability, they work with local natural fill (sand, gravel, soil) to cut high-energy material use, lower carbon emissions and reduce construction waste, delivering an economical, green solution for all green infrastructure needs.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

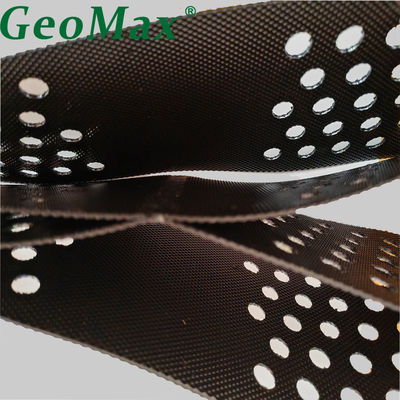

DETAILED PHOTOS

GM150 445 HDPE Geocell For Erosion Control Root Development Green Infrastructure 0

GM150 445 HDPE Geocell For Erosion Control Root Development Green Infrastructure 2

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

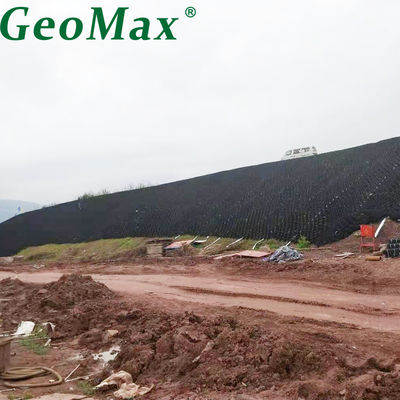

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

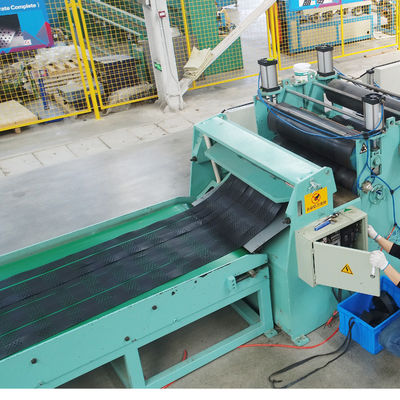

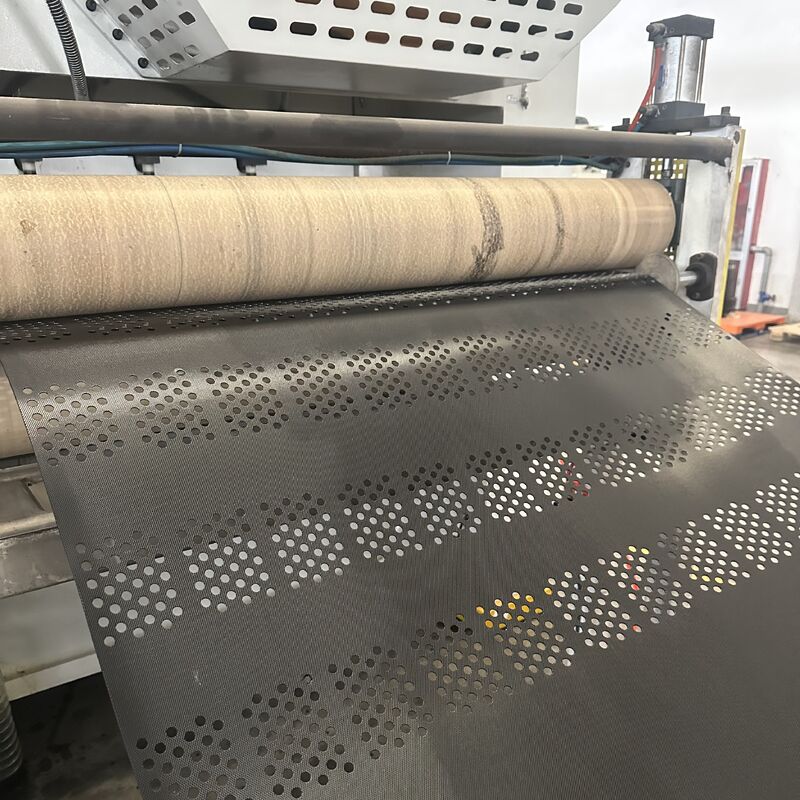

PRODUCTION LINE

INVENTION AND TESTING

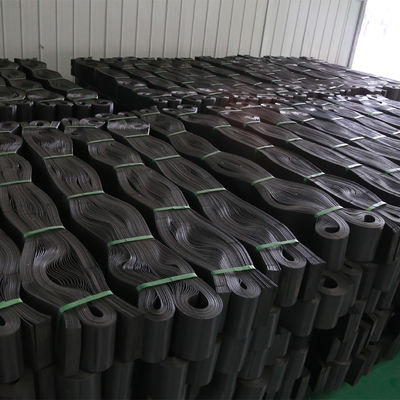

PRODUCT AREA

FAQ:

Is geocell suitable for long-term infrastructure projects?

Yes. When manufactured with virgin HDPE and proper additives, geocells are designed for long-term use in permanent infrastructure.

How does geocell perform under repeated traffic loading?

Geocells perform well under cyclic loading by limiting aggregate movement and maintaining structural integrity over time.

Can geocells reduce pavement thickness?

Yes. Geocell confinement improves load distribution, allowing designers to reduce the thickness of traditional base layers.

Is geocell effective in areas with poor drainage?

Yes. When combined with proper drainage design, geocells help maintain structural stability even in wet conditions.

Can geocells be installed on uneven ground?

Yes. The flexible nature of geocells allows them to adapt to irregular or uneven subgrade surfaces.
