GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth

GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth
GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth
GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth

Large Image :  GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE,ISO9001-2015
Model Number: GM150-445
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day
Contact Now

GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth

Description
Material: 100% HDPE Plastic Thickness: 1.2-1.5mm
Surface: Smooth Or Textured Surface Tensile Strength: 25kN/m
Standard: ASTM; GB Standard； Peel Strength: 14.2 KN/m
Height: 150mm Color: Black;Yellow;Green
Welding Distance: 445mm Density: 0.950 G/cm3
Certificate: CE;ISO;ASTM
Highlight:

HDPE geocell for soil confinement

,

geocell for steep slope stabilization

,

HDPE geocell vegetation growth support

GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth



GEOMAX® GEOCELL PRODUCT INTRODUCTION


GeoMax delivers high-performance HDPE geocell and geosynthetic solutions for soil stabilization and ground reinforcement, engineered to excel in durability and eco-sustainability.

Optimized for superior load distribution, robust slope stability and effective erosion control, our products are ideal for urban/rural roads, highway subgrades, mountain slopes, river/coastal embankments, landfill foundations, retaining walls, ecological restoration and sponge city initiatives.

Made from high-grade HDPE with strict quality control, our geocells resist extreme temperatures, UV damage, corrosion and freeze-thaw cycles, ensuring long service life, anti-deformation and low maintenance. With a green design, they integrate structural confinement with local natural fill (sand, gravel, soil), minimizing high-energy material consumption, cutting carbon emissions and construction waste—an economical, sustainable choice for green infrastructure projects.


SPECIFICATIONS


Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

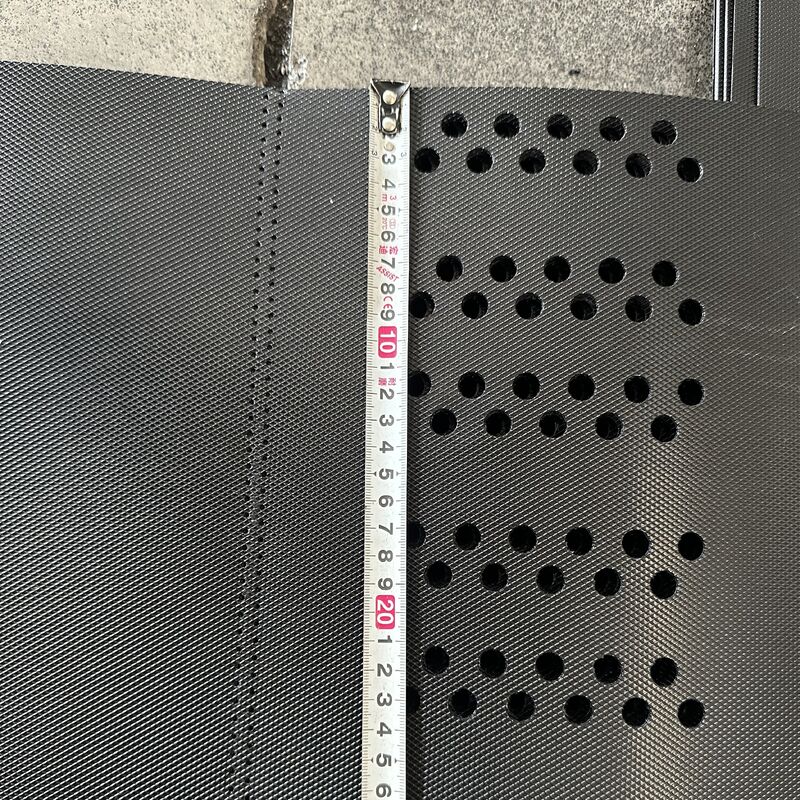

DETAILED PHOTOS

GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth 0 GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth 1

GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth 2 GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth 3

APPLICATIONS

GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth 4

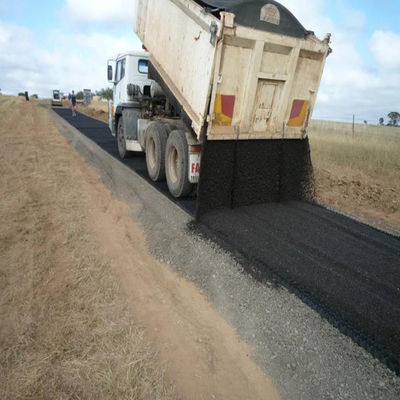

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth 5

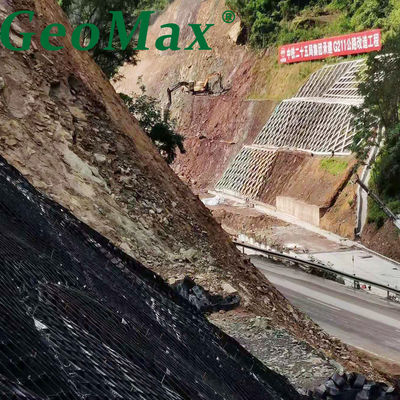

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth 8

INVENTION AND TESTING

GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth 9



PRODUCT AREA

GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth 10

FAQ:

What role does cell geometry play in performance?

Cell geometry influences confinement efficiency, load transfer, and interaction with infill materials.

Are geocells suitable for desert or sandy environments?

Yes. Geocells are commonly used in sandy soils to prevent displacement and improve load-bearing capacity.

Can local soil be used as infill?

In many cases, locally available soil can be used, which significantly reduces construction costs.

How does geocell reduce lateral soil movement?

The three-dimensional cell structure restricts horizontal soil displacement within each cell.

Is geocell installation affected by weather?

Installation can proceed in most weather conditions, though heavy rain may require temporary protection measures.

GM100 254 HDPE Geocell For Steep Slopes Soil Confinement Vegetation Growth 11
