GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading

GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading
GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading

Large Image :  GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE,ISO9001-2015
Model Number: GM100-600
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation

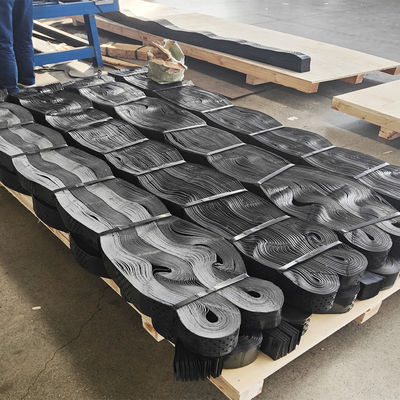

Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day

GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading

Description
Material: 100% HDPE Plastic Thickness: 1.2-1.5mm
Surface: Smooth Or Textured Surface Tensile Strength: 25kN/m
Standard: ASTM; GB Standard; Peel Strength: 14.2 KN/m
Height: 100mm Color: Black;Yellow;Green
Welding Distance: 600mm Density: 0.950 G/cm3
Certificate: CE;ISO;ASTM
Highlight:

HDPE geocell for soil improvement

,

660 geocell for drainage balance

,

GM100 geocell for load spreading

GM150 254 Cellular HDPE System For Load Transfer Slope Reinforcement Ground Stabilization



GEOMAX® GEOCELL PRODUCT INTRODUCTION


GeoMax offers high-performance HDPE geocell and geosynthetic solutions for soil stabilization and ground reinforcement, expertly engineered to deliver exceptional durability while embodying advanced green design and sustainable functionality.

Optimized for superior load distribution, robust slope stability and dependable erosion control, our products are the preferred choice for a diverse range of projects, including urban and rural roads, highway subgrades, mountainous slope engineering, river and coastal embankments, landfill foundation reinforcement, retaining wall construction, ecological restoration and sponge city development.

Manufactured from high-grade HDPE and under rigorous quality control, our geocells resist extreme temperatures, UV deterioration, corrosion and freeze-thaw cycles—boasting an extended service life, deformation resistance and minimal upkeep for long-lasting structural reliability. Grounded in eco-aware engineering, our geocells combine structural confinement with locally sourced natural fillers such as sand, gravel and native soil, which reduces carbon footprints, lessens dependence on energy-intensive building materials and cuts down construction waste. This thoughtful design aligns with circular building principles, curbs resource usage and provides a cost-efficient solution that upholds environmental responsibility and complies with the most stringent eco-sustainable infrastructure criteria.


SPECIFICATIONS


Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

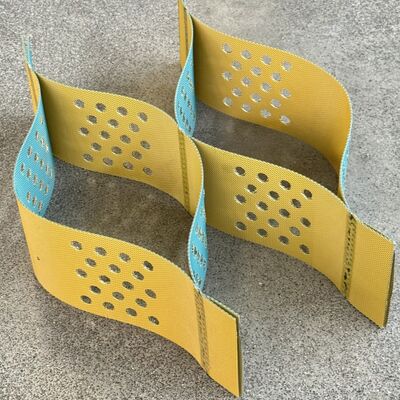

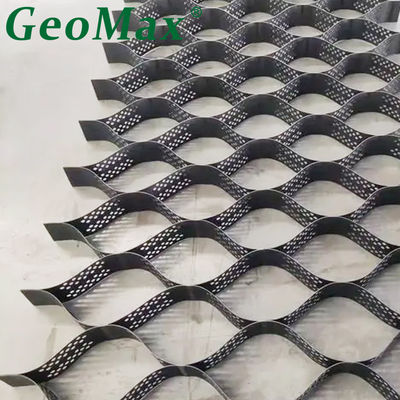

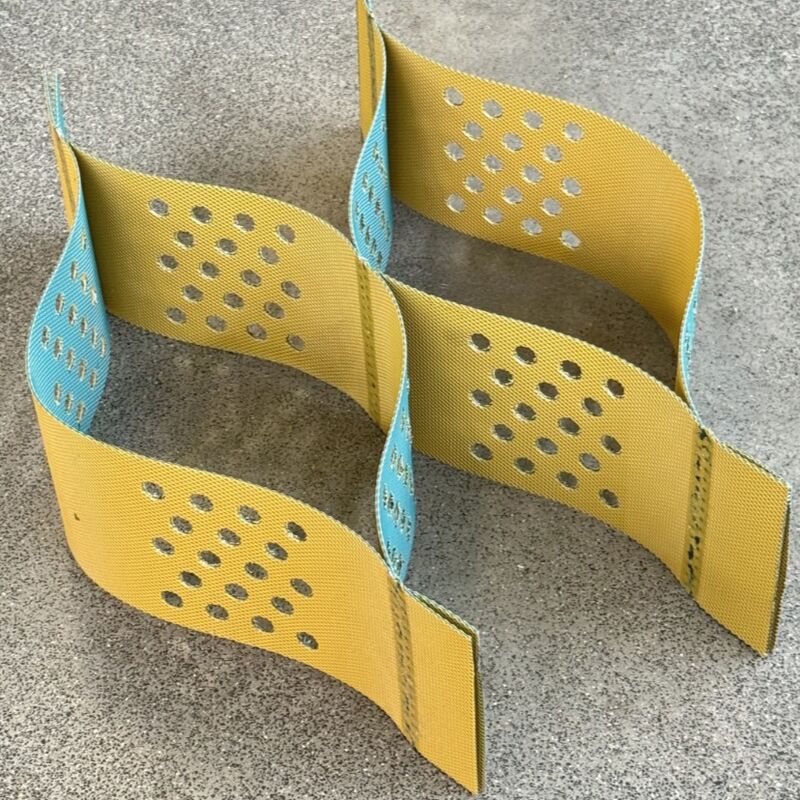

DETAILED PHOTOS

GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 0 GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 1

GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 2 GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 3

APPLICATIONS

GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 5

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

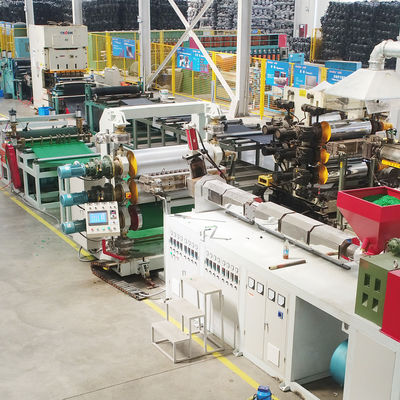

PRODUCTION LINE

GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 8

INVENTION AND TESTING

GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 9



PRODUCT AREA

GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 10

FAQ:

How does geocell compare with thick aggregate layers?

Geocells provide similar or better performance while using less aggregate material.


Can geocells be used for access roads in remote areas?

Yes. Their lightweight transport and simple installation make them ideal for remote locations.


Is special equipment required for geocell installation?

No. Most installations can be completed with basic construction tools.


Can geocells be integrated into modular construction systems?

Yes. Geocells are compatible with modular and phased construction approaches.


How does geocell improve construction speed?

Reduced excavation and faster installation significantly shorten construction timelines.

GM100 660 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 11
