GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance

GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance
GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance

Large Image :  GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE,ISO9001-2015
Model Number: GM150-600
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation

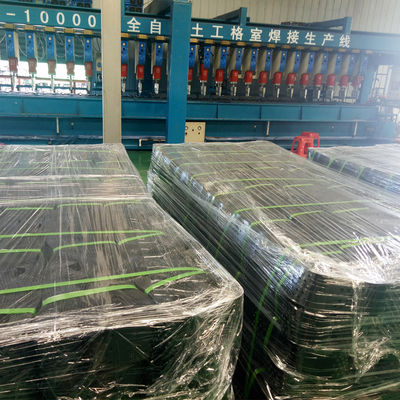

Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day

GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance

Description
Material: 100% HDPE Plastic Thickness: 1.2-1.5mm
Surface: Smooth Or Textured Surface Tensile Strength: 25kN/m
Standard: ASTM; GB Standard; Peel Strength: 14.2 KN/m
Height: 150mm Color: Black;Yellow;Green
Welding Distance: 600mm Density: 0.950 G/cm3
Certificate: CE;ISO;ASTM
Highlight:

HDPE geocell road base system

,

HDPE cellular embankment solution

,

long-term performance geocell grid

GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance



GEOMAX® GEOCELL PRODUCT INTRODUCTION


GeoMax supplies high-performance HDPE geocell and geosynthetic solutions for soil stabilization and ground reinforcement—expertly engineered to deliver unrivaled durability, while fully embodying forward-thinking green design and sustainable operational performance.

Refined for optimal load distribution, rock-solid slope stability and consistent erosion control, our products are the top selection for a wide array of engineering projects: urban and rural road construction, highway subgrade reinforcement, mountain slope stabilization, river and coastal embankment works, landfill foundation upgrading, retaining wall projects, ecological remediation and sponge city construction.

Produced from premium-grade HDPE and governed by strict quality assurance measures, our geocells are highly resistant to extreme temperatures, UV damage, corrosion and freeze-thaw cycles. They feature an extended service life, excellent deformation resistance and low maintenance requirements, ensuring enduring structural dependability in all working conditions. Designed with eco-centric engineering at its core, our geocells integrate structural confinement technology with locally sourced natural fillers (sand, gravel, native soil). This design cuts carbon emissions, reduces reliance on energy-heavy construction materials and minimizes building waste, aligning with the tenets of circular construction, curbing resource depletion and delivering a cost-effective solution that upholds environmental stewardship and meets the most rigorous sustainability standards for infrastructure projects.



SPECIFICATIONS


Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

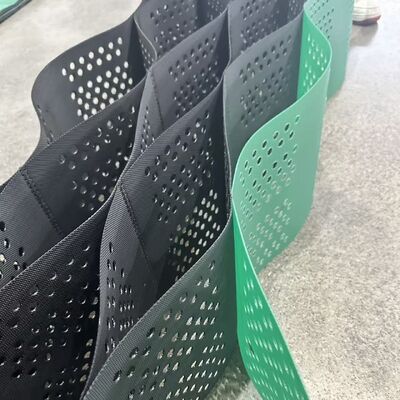

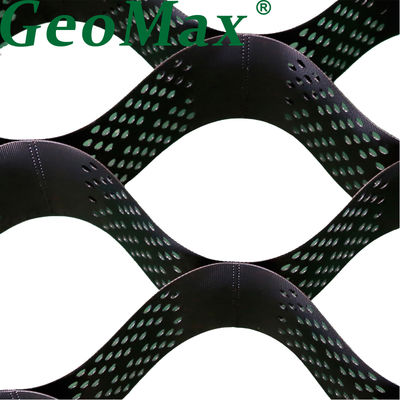

DETAILED PHOTOS

GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance 0 GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance 1

GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance 2 GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance 3

APPLICATIONS

GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance 5

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

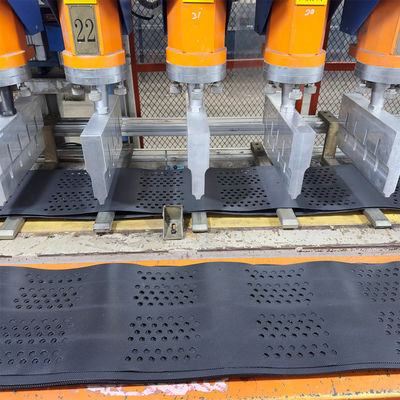

PRODUCTION LINE

GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance 8

INVENTION AND TESTING

GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance 9



PRODUCT AREA

GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance 10

FAQ:

Are geocells suitable for temporary load platforms?

Yes. They are often used for temporary crane pads and working platforms.


Can geocells reduce construction costs?

Yes. Savings come from reduced material usage, transportation, and labor requirements.


How do geocells behave under seismic conditions?

The flexible structure allows geocells to absorb ground movement better than rigid systems.


Can geocells be installed in confined spaces?

Yes. Their collapsible panels are easy to handle in limited-access areas.


What quality checks are performed during geocell production?

Typical checks include raw material inspection, thickness control, weld strength testing, and dimensional verification.

GM150 660 HDPE Cellular System For Road Bases Embankments Long Term Performance 11
