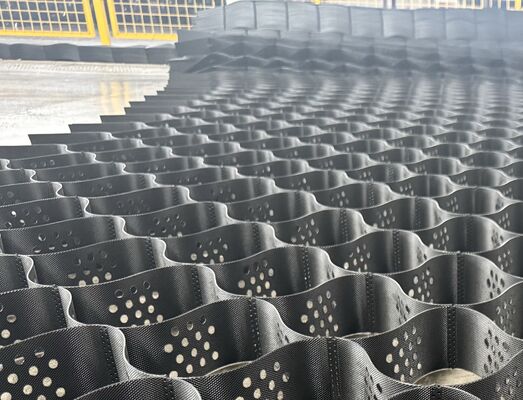

Black HDPE Geocell 100mm 330mm Weld Distance For Railway Subgrade Support

Black HDPE Geocell 100mm 330mm Weld Distance For Railway Subgrade Support

GeoMax 100mm HDPE geocell is suitable for railway subgrade reinforcement and transportation infrastructure projects where compact cellular confinement is required. The HDPE geocell expands to form interconnected honeycomb cells that retain gravel and crushed aggregate while helping control horizontal movement under repeated loading.

Product Specifications

The 100mm cell height provides a practical confinement layer for railway and road foundation construction. The 330mm weld distance creates relatively compact cellular openings, allowing the HDPE geocell to provide effective restraint to granular filling materials.

The HDPE geocell is expanded and fixed on the prepared foundation before aggregate is placed. Once the cells are filled and compacted, the cellular walls help reduce sideways movement and maintain the position of gravel within the reinforced layer.

Flexible polyethylene allows the HDPE geocell to follow moderate variations in the underlying foundation. Ultrasonic welded joints provide stable connections between adjacent strips and help preserve the expanded cell geometry.

Applications include railway subgrades, maintenance roads, road foundations, access routes, construction platforms and general ground stabilization. Depending on the design, the HDPE geocell can be filled with gravel, crushed stone or selected soil.

Its folded panel configuration makes transport and on-site handling efficient. GeoMax offers several HDPE geocell specifications for different transportation and infrastructure projects, allowing cell height and welding distance to be matched to engineering requirements.
