100mm HDPE Geocell 330mm Ultrasonic Weld Spacing for Road Base Reinforcement

100mm HDPE Geocell 330mm Ultrasonic Weld Spacing for Road Base Reinforcement

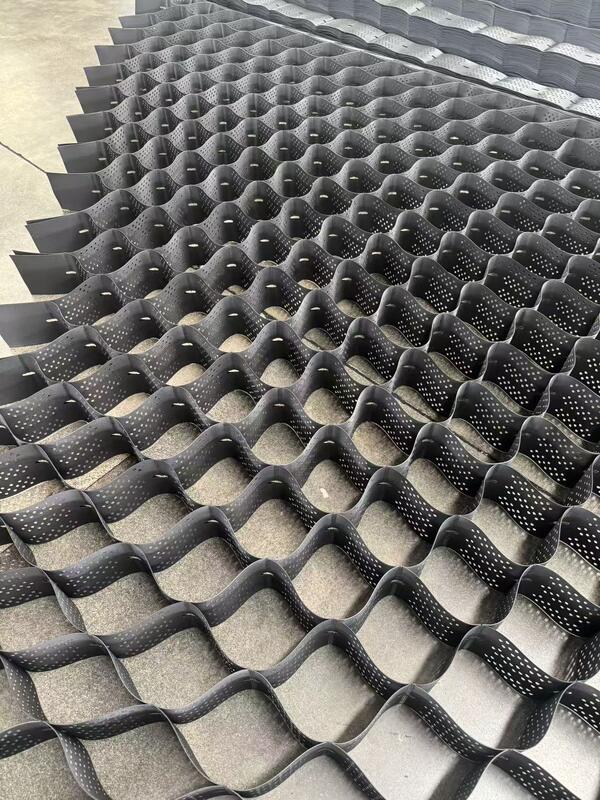

GeoMax GM100-330 is a conventional welded HDPE geocell configured for road base reinforcement and granular material confinement. The combination of a 100mm cell height and compact 330mm welding distance creates a deeper cellular layer than shallow landscaping models, making this specification suitable for road construction and access routes requiring increased infill confinement.

Technical Parameters

In road construction, unconfined granular material can move laterally when exposed to repeated vehicle loading. The cellular walls of the HDPE geocell are designed to restrain the infill within individual interconnected cells. When properly filled and compacted, the system forms an integrated reinforcement layer across the treated area.

The 100mm cell depth allows the geocell to accommodate a substantial layer of crushed stone or gravel. Meanwhile, the 330mm welding interval creates a relatively compact cell configuration. This makes GM100-330 suitable for access roads, rural roads, temporary construction roads, road shoulders and other base stabilization applications.

Each geocell section is manufactured by ultrasonically welding HDPE strips at regular intervals. The completed section can then be compressed for transportation. This folding capability reduces the volume occupied by the geocell during warehouse storage and international shipment.

On site, contractors prepare the subgrade, expand the geocell panels, anchor them in position and connect neighboring sections where necessary. Selected aggregate is then placed into the cells and compacted according to the engineering requirements.

For road contractors, distributors and international geosynthetic buyers, GM100-330 provides a practical HDPE geocell configuration where stronger granular confinement and a deeper reinforcement layer are required.
