Product Details:
|
Material: | HDPE | Type: | 100-330 |
---|---|---|---|
Color: | Black | Welding Space: | 330mm |
Thickness: | 1.0mm | Height: | 75 |

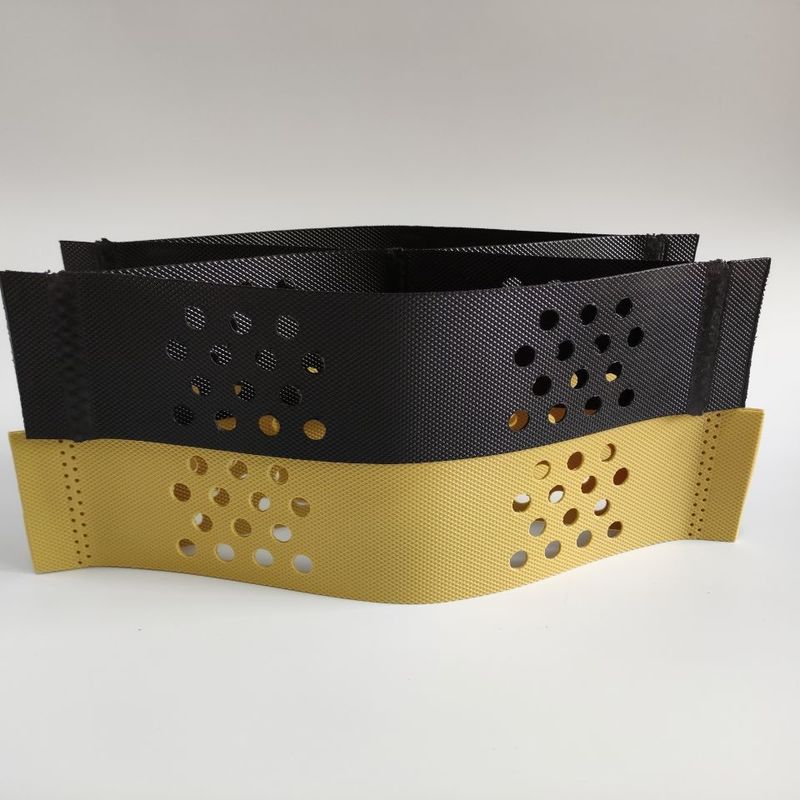

Surface: | Textured & Perforated | Standard: | ASTM |
Highlight: | HDPE gravel stabilizer mat,Honeycomb gravel stabilizer mat,Honeycomb gravel stabilizer grid driveway |
PRODUCT DESCRIPTION
High Honeycomb Black HDPE Geocell Reinforcement Driveway For Road Gravel Stabilizer Grid
Product Introduction
Cellular confinement systems also known as geocells—are widely used in construction for erosion control, soil stabilization on flat ground and steep slopes, channel protection, and structural reinforcement for load support and earth retention.Typical cellular confinement systems are geosynthetics made with ultrasonically welded high-density polyethylene (HDPE) strips and expanded on-site to form a honeycomb-like structure—and filled with sand, soil, rock, gravel or concrete.
Specifications
Index Properties | Test Method | Units | Values | |||||||
Material | - | - | 100% Virgin HDPE | |||||||
Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
Dimensions | ||||||||||
Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 |
![]() |
|
![]() |
|
![]() |
|
![]() |
|
