Product Details:
|
| Material: | HDPE | Type: | 150-330 |
|---|---|---|---|
| Color: | Black | Welding Space: | 330mm |
| Thickness: | 1mm | Height: | 150 |
| Surface: | Perforated | Standard: | ASTM |
| Highlight: | Engineered Erosion Control Geocell,150mm Erosion Control Geocell,Engineered geo geocell |
||
PRODUCT DESCRIPTION
Hdpe Geocell Driveway For Road And Slope Protection HDPE Geocell Geo Cell Gravel Grid Geocells
Product Introduction

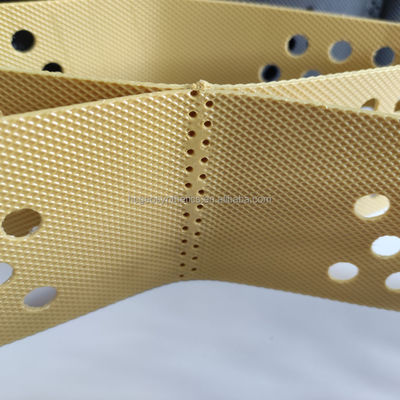

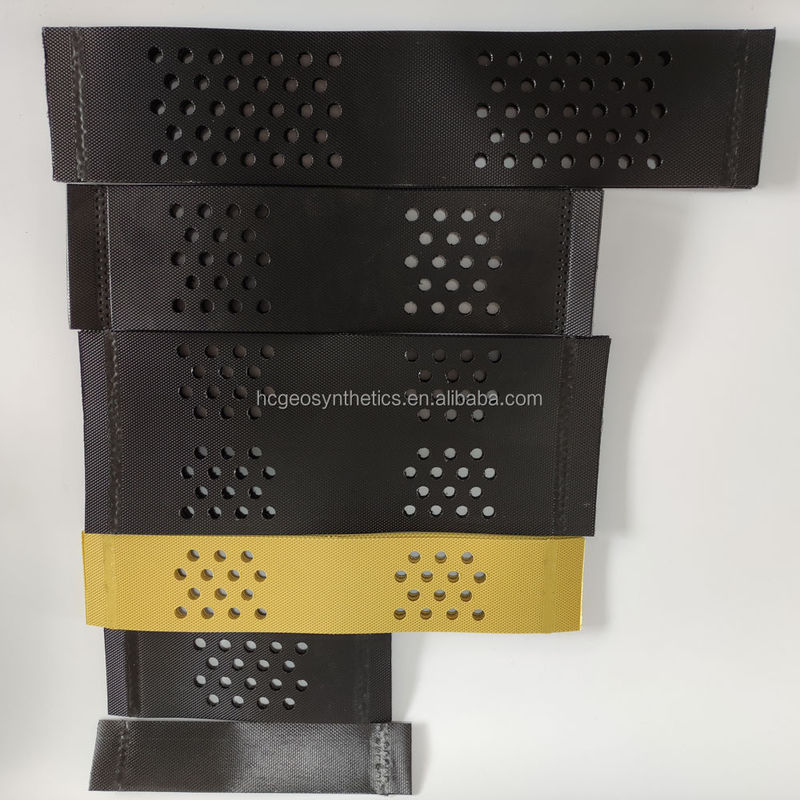

Geocell is a flexible three-dimensional honeycomb like structures made from high-density polyethylene(HDPE) strips, which are ultrasonically bonded together to form an extremely strong configuration. Lin Yuan Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc.
Geocell is engineered for soil stabilization applications, which is used to help improve the performance of standard construction materials and erosion-control treatments.
Specifications
| Index Properties | Test Method | Units | Values | |||||||
| Material | - | - | 100% Virgin HDPE | |||||||
| Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
| Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
| Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
| Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
| Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
| OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
| Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
| Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
| Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
| Dimensions | ||||||||||
| Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
| Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
| Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
| Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 | ||
 |
SOIL REINFORCEMETNGeomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement. |
|
SLOPE PROTECTIONGeomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection. |
|
CHANNEL PROTECTIONGeomax®(Geocell) delivers stability and protection of channels |
|
RETAINING WALLSGeomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff. |
