ODM HDPE Green Geocell For Road Construction Civil Engineering

ODM HDPE Green Geocell For Road Construction Civil Engineering
ODM HDPE Green Geocell For Road Construction Civil Engineering ODM HDPE Green Geocell For Road Construction Civil Engineering

Large Image :  ODM HDPE Green Geocell For Road Construction Civil Engineering

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 75-330
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation

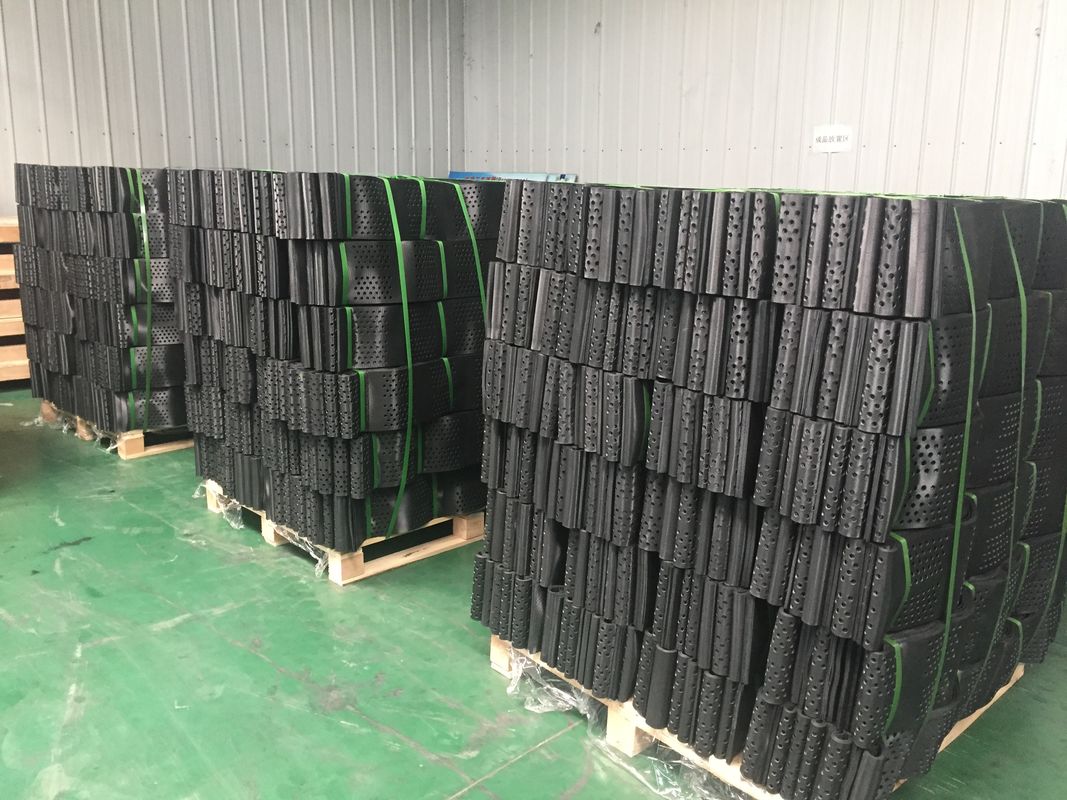

Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

ODM HDPE Green Geocell For Road Construction Civil Engineering

Description
Material: HDPE Type: 75-330
Color: Black Welding Space: 330mm
Thickness: 1.5mm Height: 75
Surface: Perforated Standard: ASTM
High Light:

ODM Geocell For Road Construction

,

Green Geocell For Road Construction

,

Green hdpe geo cell



PRODUCT DESCRIPTION

HDPE Green Geocell Used In Road Construction Geocell



Product Introduction



Geocell Grid Panels are well known that an ideal soil material for use in civil engineering applications is one that compacts well and drains water freely. The problem is that the better draining soils are difficult to confine in place. Our Geo cellular confinement system provides a solution. It is being widely used in construction, such as highway, railway, bridge, dyke, etc.


Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18





 Application



ODM HDPE Green Geocell For Road Construction Civil Engineering 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



ODM HDPE Green Geocell For Road Construction Civil Engineering 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





ODM HDPE Green Geocell For Road Construction Civil Engineering 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





ODM HDPE Green Geocell For Road Construction Civil Engineering 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



HCNS Manufacture                                                                                                                                  ODM HDPE Green Geocell For Road Construction Civil Engineering 4                                                                                     ODM HDPE Green Geocell For Road Construction Civil Engineering 5



Our Certificates and HDPE Geocell Testing reports

ODM HDPE Green Geocell For Road Construction Civil Engineering 6
