Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness

Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness
Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness

Large Image :  Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 150-660
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Contact Now

Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness

Description
Material: HDPE Cell Type: 150-660
Color: Green Weld Distance: 660mm
Thickness: 1.5mm Height: 150mm
Surface Choose: Perforated, Textured Peeling Strength: 14.2kN/m
Uv Resistance: Excellent Tensile Strength: ≥20kN/m
Density: 0.935-0.965 G/cm3 Temperature Resistance: -40°C To 60°C



PRODUCT DESCRIPTION

Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness



Product Introduction




GeoMax® Geocell is a high-performance, three-dimensional, honeycomb-structured sheet made from
Enhanced high-density polyethylene (HDPE) sheets that are ultrasonically welded together to form a sturdy grid.
The cells can be filled with sand, soil, or other local materials, providing a flexible, cost-effective solution for geotechnical engineering applications.
The innovative system provides value-engineering solutions for various infrastructure projects, including roadways, highways, railways, landscaping, landfills, parking lots, and pipelines. It reduces overall project costs, minimizes environmental impact, and simplifies installation processes, significantly saving time and labor costs.





Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









Application



Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness 0

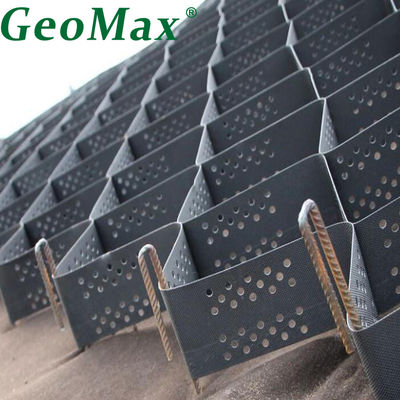

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness 3

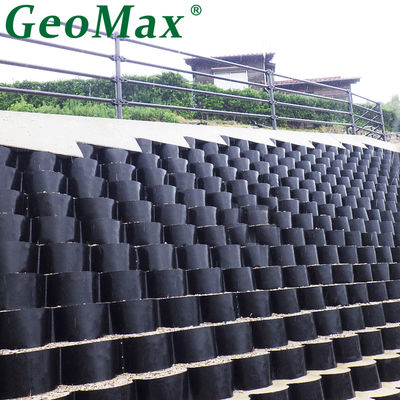

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

                                                                                                      HCNS Manufacture

Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness 4

Exhibition                                                                   Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness 5

Our Certificates and HDPE Geocell Testing reports

Road Construction HDPE Geocell Highway Fastway Stabilizations 1.5mm Thickness 6
