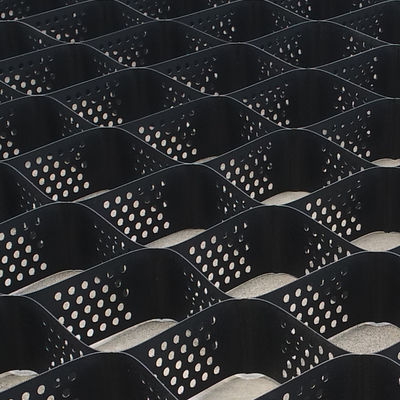

Precision HDPE Gravel Stabilizer 50mm Ground Grid For Farmland Walkway & Driveway

Precision HDPE Gravel Stabilizer 50mm Ground Grid For Farmland Walkway & Driveway
Precision HDPE Gravel Stabilizer 50mm Ground Grid For Farmland Walkway & Driveway Precision HDPE Gravel Stabilizer 50mm Ground Grid For Farmland Walkway & Driveway Precision HDPE Gravel Stabilizer 50mm Ground Grid For Farmland Walkway & Driveway

Large Image :  Precision HDPE Gravel Stabilizer 50mm Ground Grid For Farmland Walkway & Driveway

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.27-150-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Contact Now

Precision HDPE Gravel Stabilizer 50mm Ground Grid For Farmland Walkway & Driveway

Description
Geocell Material: High Density Polyethylene Standard: ASTM Or GB/T
Cell Height: 150 Geocell Model: 150-445
Hdpe Geocell Color: Black Or Customized Welding Space: 445mm
Cell Thickness: 1.27mm Geocell Surface: Textured
Highlight:

Farmland Walkway Geocell

,

50mm Ground Grid Geocell

,

Precision Gravel Stabilizer Geocell

HDPE Geocell Supplier Gravel Stabilizer 50mm Ground Grid For Farmland Walkway & Driveway





Product Introduction

Geocell technology is a visionary 3D honeycomb Cellular Confinement System particularly designed for soil stabilization and assists to prevent geohazards(s). Geocells are vastly utilized in civil engineering and infrastructure regions. They are suppressed by high-density polyethylene (HDPE) or polymer structures and aid in enhancing the performance of erosion control treatments and standard manufacturing materials.


Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

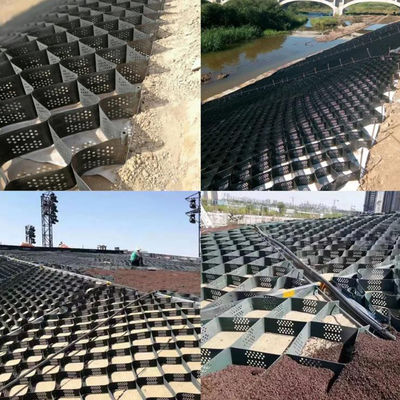

APPLICATION

Precision HDPE Gravel Stabilizer 50mm Ground Grid For Farmland Walkway & Driveway 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Precision HDPE Gravel Stabilizer 50mm Ground Grid For Farmland Walkway & Driveway 1

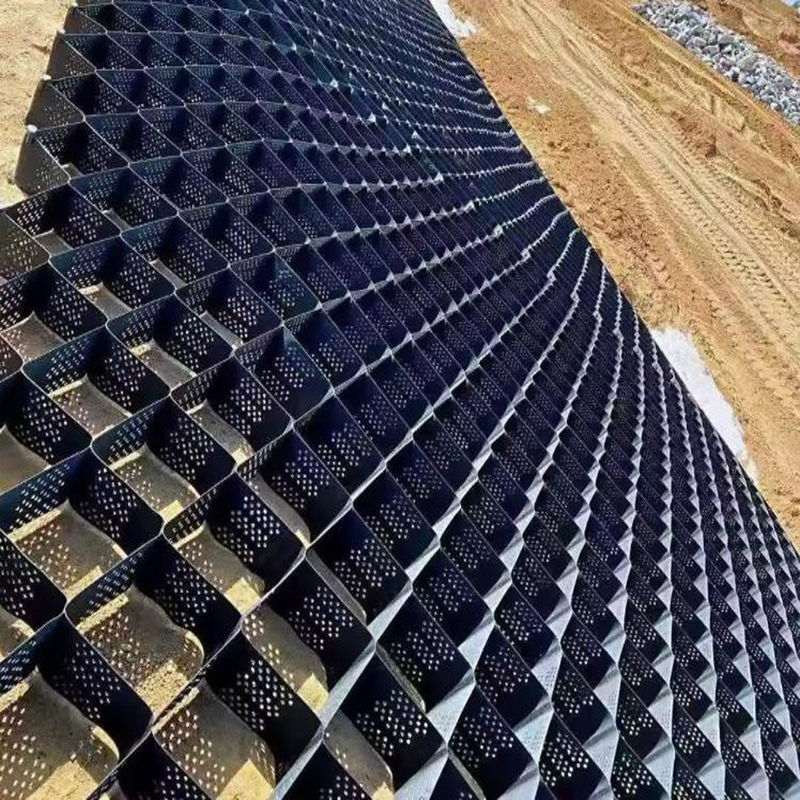

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Precision HDPE Gravel Stabilizer 50mm Ground Grid For Farmland Walkway & Driveway 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Precision HDPE Gravel Stabilizer 50mm Ground Grid For Farmland Walkway & Driveway 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

Precision HDPE Gravel Stabilizer 50mm Ground Grid For Farmland Walkway & Driveway 4



INVENTION AND TESTING

Precision HDPE Gravel Stabilizer 50mm Ground Grid For Farmland Walkway & Driveway 5



PRODUCT AREA

Precision HDPE Gravel Stabilizer 50mm Ground Grid For Farmland Walkway & Driveway 6



CERTIFICATES

Precision HDPE Gravel Stabilizer 50mm Ground Grid For Farmland Walkway & Driveway 7
