Product Details:
|
| Material: | HDPE LDPE LLDPE PVC PE | Length: | 50-200m |
|---|---|---|---|
| Width: | 1m~8m | Thickness: | 0.2mm~3mm |
| Transport Package: | HDPE Geomembrane Liner Is Packed In The Woven Bags | Specification: | 0.5mm 0.75mm 1.0mm 1.5mm 2mm |

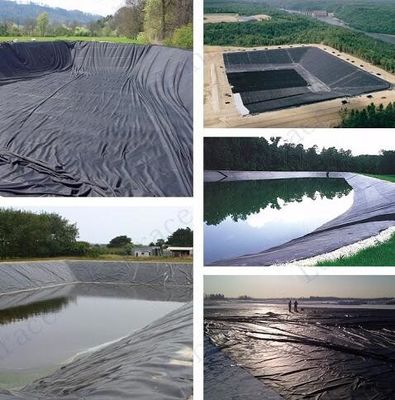

| Origin: | Anhui, China | Application: | Transportation Project, Hydraulic Project, Geotechnical Project, Environmental Project |
| High Light: | Antioxidant geomembrana hdpe 40 mils,Dam geomembrana hdpe 40 mils,40 Mils hdpe dam liners |
||
PRODUCT DESCRIPTION

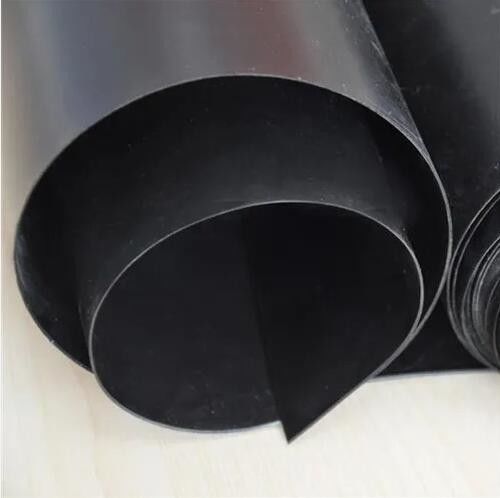

High-Quality Custom Color 0.3mm 0.5mm 0.75mm Smooth HDPE Waterproof Geomembrane Promotion Pond Liner Sheet
Product Introduction
Specifications
| Specification | Test method | Unit | Type | ||||
| thickness | ASTM 05199 | mm | 0.75 | 1 | 1.25 | 1.5 | 2 |
| density | ASTM 0 1505 | g/cm3. min. | 0.939 | 0.939 | 0.939 | 0.939 | 0.939 |
| tensile strength at yield | ASTM 06693 | KN/m. min. | 11 | 15 | 18 | 22 | 29 |
| tensile strength at break | ASTM 06693 | KN/m. min. | 20 | 27 | 33 | 40 | 53 |
| elongation at yield | ASTM 06693 | %.max. | 12 | 12 | 12 | 12 | 12 |
| elongation at break | ASTM 06693 | %.max. | 700 | 700 | 700 | 700 | 700 |
| tear resistance | ASTM 0 1004 | N | 93 | 125 | 156 | 187 | 249 |
| puncture resistance | ASTM 04833 | N | 240 | 320 | 400 | 480 | 640 |
| environment stress cracking resistance | ASTM 05397 | hr | 300 | 300 | 300 | 300 | 300 |
| carbon black content | ASTM 0 1603 | % | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 |
| oxidation induction time (OIT) | ASTM 03895 | minute | 100 | 100 | 100 | 100 | 100 |
| low temperature (-70'C)impact brittle |
ASTM 02136 | pass | pass | pass | pass | pass | |
| stream hydraulic conductivity | g.cm/(cm².s.Pa), max. |
1x10¯13 | 1x10¯13 | 1x10¯13 | 1x10¯13 | 1x10¯13 | |
| dimension stability after 2 storge 1 h/100'C | ASTM 0 1204 | %.max | 2 | 2 | 2 | 2 | 2 |
