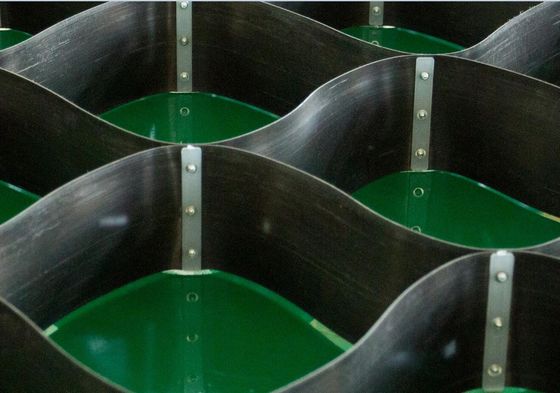

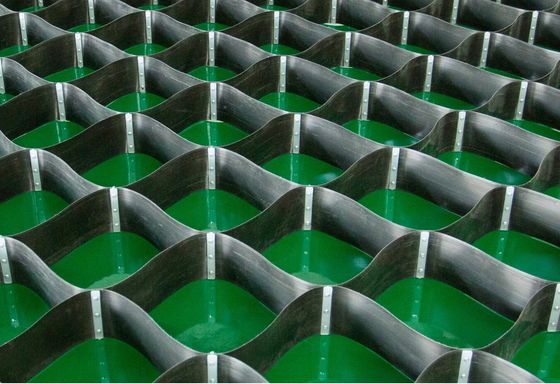

PET High Strength Riveted Geo Cell Grid Gravel Grid Mat For Road Envirogrid

PET High Strength Riveted Geo Cell Grid Gravel Grid Mat For Road Envirogrid
PET High Strength Riveted Geo Cell Grid Gravel Grid Mat For Road Envirogrid PET High Strength Riveted Geo Cell Grid Gravel Grid Mat For Road Envirogrid

Large Image :  PET High Strength Riveted Geo Cell Grid Gravel Grid Mat For Road Envirogrid

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: High Strength Riveted Geocell
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: as requested
Delivery Time: 7-15days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

PET High Strength Riveted Geo Cell Grid Gravel Grid Mat For Road Envirogrid

Description
Material: PP/PET/HDPE Standard Color: Black
Height: 50-200mm Space: 500-800mm
Section Size: 12.5*4m Certificate: CE/ISO9001
High Light:

PET Geo Cell Grid

,

Envirogrid Geo Cell Grid

,

Envirogrid geocell mat



PRODUCT DESCRIPTION

PET High Strength Riveted Geocell Gravel Grid Driveway For Road Envirogrid



Product Introduction

The high-strength geocell is developed and produced by a special processing methods to meet the requirements of different civil engineering for ultra-high tensile strength and low elongation of the cell based on the common geocell processing technology. The cell is made by riveting the whole ribbed strip. Its maximum tensile strength can reach 250Mpa, but its elongation is less than 15%. It has been widely used in the reinforcement of high-speed railways, highway subgrade backfill, loess collapsible subgrade, saline soil and other subgrades.



Specifications

PP High Strength Riveted Geocell



Model Height(mm)

Space

(mm)

Section size(m)

Sheet Longitudinal tensile strength

(≥Mpa)

Sheet horizontal tensile strength

(≥kn/m)

Elongation ≤%

Jointing tensile strength

(≥kn/m)

TGGS50 50 500-800 12.5*4 150 / 15 15
TGGS75 75 500-800 12.5*4 150 / 15 15
TGGS100 100 500-800 12.5*4 150 / 15 15
TGGS150 150 500-800 12.5*4 150 / 15 15
TGGS200 200 500-800 12.5*4 150 / 15 15



PET  High Strength Riveted Geocell

Model Height(mm)

Space

(mm)

Section size(m)

Sheet Longitudinal tensile strength

(≥kn/m)

Sheet horizontal tensile strength

(≥kn/m)

Elongation ≤%

Jointing tensile strength

(≥kn/m)

TGGS50 50 500-800 12.5*4 100 15 10 15
TGGS75 75 500-800 12.5*4 100 15 10 15
TGGS100 100 500-800 12.5*4 100 15 10 15
TGGS150 150 500-800 12.5*4 100

15

10 15
TGGS200 200 500-800 12.5*4 100 15 10 15



HDPE High Strength Riveted Geocell

Model Height(mm)

Space

(mm)

Section size(m)

Sheet Longitudinal tensile strength

(≥kn/m)

Sheet horizontal tensile strength

(≥kn/m)

Elongation ≤%

Jointing tensile strength

(≥kn/m)

TGGS50 50 500-800 12.5*4 30 20 3 15
TGGS75 75 500-800 12.5*4 30 20 3 15
TGGS100 100 500-800 12.5*4 30 20 3 15
TGGS150 150 500-800 12.5*4 30 20 3 15
TGGS200 200 500-800 12.5*4 30 20 3 15

HCNS Manufacture                                                                                                                                  PET High Strength Riveted Geo Cell Grid Gravel Grid Mat For Road Envirogrid 0                                                                                     PET High Strength Riveted Geo Cell Grid Gravel Grid Mat For Road Envirogrid 1



Our Certificates and HDPE Geocell Testing reports

PET High Strength Riveted Geo Cell Grid Gravel Grid Mat For Road Envirogrid 2
