Product Details:
|
| Material: | PP/PET/HDPE | Standard Color: | Black |
|---|---|---|---|
| Height: | 50-200mm | Space: | 500-800mm |
| Section Size: | 12.5*4m | Certificate: | CE/ISO9001 |
| Highlight: | HDPE Geo Cell Grid,Riveted Geo Cell Grid,HDPE gravel stabilizer grid for patio |
||
PRODUCT DESCRIPTION

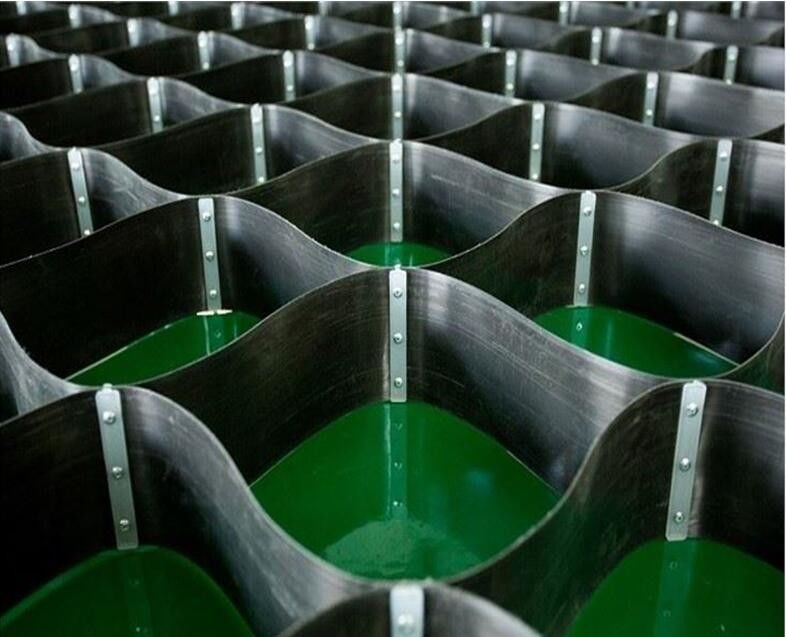

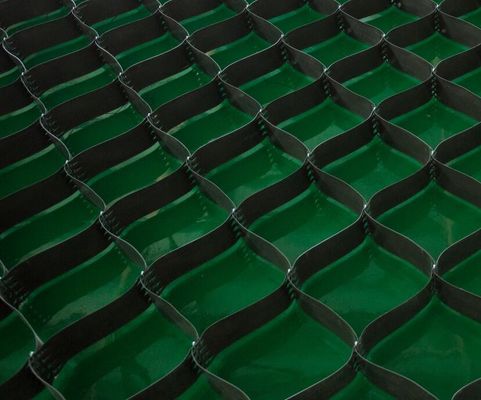

HDPE High Strength Riveted Geocell Plastic Driveway Paver Grid For Soil Stabilization
Product Introduction
It is applied to all kinds of roadbed and soft foundation treatment, Such as highways,railways,deserts, swamps,tidal flats, airports, ports, docks, etc. It can also be used inloess collapsible roadbed, expansive soil and other roadbed reinforcement.
Specifications
PP High Strength Riveted Geocell
| Model | Height(mm) |
Space (mm) |
Section size(m) |
Sheet Longitudinal tensile strength (≥Mpa) |
Sheet horizontal tensile strength (≥kn/m) |
Elongation ≤% |
Jointing tensile strength (≥kn/m) |
| TGGS50 | 50 | 500-800 | 12.5*4 | 150 | / | 15 | 15 |
| TGGS75 | 75 | 500-800 | 12.5*4 | 150 | / | 15 | 15 |
| TGGS100 | 100 | 500-800 | 12.5*4 | 150 | / | 15 | 15 |
| TGGS150 | 150 | 500-800 | 12.5*4 | 150 | / | 15 | 15 |
| TGGS200 | 200 | 500-800 | 12.5*4 | 150 | / | 15 | 15 |
PET High Strength Riveted Geocell
| Model | Height(mm) |
Space (mm) |
Section size(m) |
Sheet Longitudinal tensile strength (≥kn/m) |
Sheet horizontal tensile strength (≥kn/m) |
Elongation ≤% |
Jointing tensile strength (≥kn/m) |
| TGGS50 | 50 | 500-800 | 12.5*4 | 100 | 15 | 10 | 15 |
| TGGS75 | 75 | 500-800 | 12.5*4 | 100 | 15 | 10 | 15 |
| TGGS100 | 100 | 500-800 | 12.5*4 | 100 | 15 | 10 | 15 |
| TGGS150 | 150 | 500-800 | 12.5*4 | 100 |
15 |
10 | 15 |
| TGGS200 | 200 | 500-800 | 12.5*4 | 100 | 15 | 10 | 15 |
HDPE High Strength Riveted Geocell
| Model | Height(mm) |
Space (mm) |
Section size(m) |
Sheet Longitudinal tensile strength (≥kn/m) |
Sheet horizontal tensile strength (≥kn/m) |
Elongation ≤% |
Jointing tensile strength (≥kn/m) |
| TGGS50 | 50 | 500-800 | 12.5*4 | 30 | 20 | 3 | 15 |
| TGGS75 | 75 | 500-800 | 12.5*4 | 30 | 20 | 3 | 15 |
| TGGS100 | 100 | 500-800 | 12.5*4 | 30 | 20 | 3 | 15 |
| TGGS150 | 150 | 500-800 | 12.5*4 | 30 | 20 | 3 | 15 |
| TGGS200 | 200 | 500-800 | 12.5*4 | 30 | 20 | 3 | 15 |
HCNS Manufacture
Our Certificates and HDPE Geocell Testing reports
