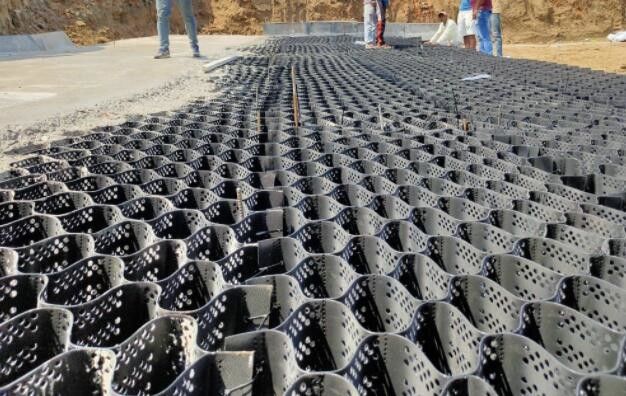

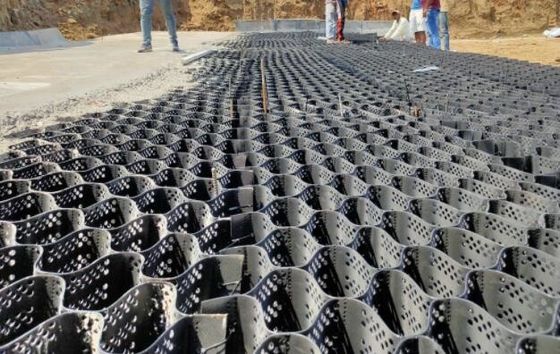

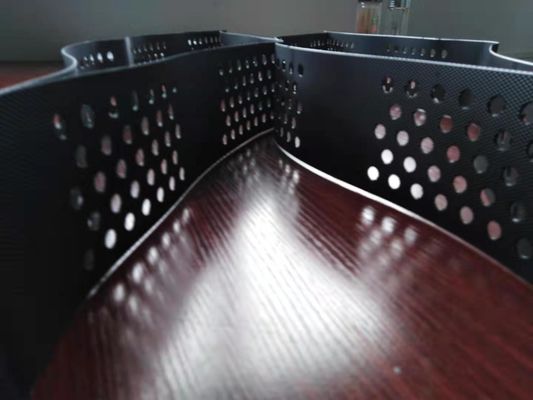

Cellular Confinement Gravel Path Stabilizer Grid Geocell Slope Stabilization

Cellular Confinement Gravel Path Stabilizer Grid Geocell Slope Stabilization
Cellular Confinement Gravel Path Stabilizer Grid Geocell Slope Stabilization Cellular Confinement Gravel Path Stabilizer Grid Geocell Slope Stabilization

Large Image :  Cellular Confinement Gravel Path Stabilizer Grid Geocell Slope Stabilization

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 100-356
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 7-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Cellular Confinement Gravel Path Stabilizer Grid Geocell Slope Stabilization

Description
Material: HDPE Type: 100-356
Color: Black Welding Space: 356mm
Thickness: 1.5mm Height: 100
Surface: Perforated Standard: ASTM
High Light:

gravel path stabilizer grid Cellular

,

Confinement gravel path stabilizer grid

,

geocell slope stabilization Cellular



PRODUCT DESCRIPTION

Smooth Surface Corrosion Resistant 3D Plastic HDPE Geocell For Road Construction



Product Introduction

Plastic geocell cellular confinement system is three dimensional , honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique . It is flexible to fold during the transport and installation on construction site .The geocell nets will be filled with soils , granular, cements or other on-site infill materials when stretched into web structures , which has powerful and rigid confinement in the lateral and vertical sides.







Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









Application



Cellular Confinement Gravel Path Stabilizer Grid Geocell Slope Stabilization 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Cellular Confinement Gravel Path Stabilizer Grid Geocell Slope Stabilization 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Cellular Confinement Gravel Path Stabilizer Grid Geocell Slope Stabilization 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Cellular Confinement Gravel Path Stabilizer Grid Geocell Slope Stabilization 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

                                                                                                      HCNS Manufacture

Cellular Confinement Gravel Path Stabilizer Grid Geocell Slope Stabilization 4

Exhibition                                                                   Cellular Confinement Gravel Path Stabilizer Grid Geocell Slope Stabilization 5

Our Certificates and HDPE Geocell Testing reports

Cellular Confinement Gravel Path Stabilizer Grid Geocell Slope Stabilization 6
