Product Details:
|
| Material: | HDPE | Type: | 100-356 |
|---|---|---|---|
| Color: | Black | Welding Space: | 356mm |
| Thickness: | 1.5mm | Height: | 100 |
| Surface: | Perforated | Standard: | ASTM |
| High Light: | HDPE Plastic Geocell For Road Construction,Geowebs Geocell For Road Construction,HDPE Plastic geocell grid paver |
||
PRODUCT DESCRIPTION
HDPE Plastic Geocell Perforated Geowebs For Road Construction
Product Introduction
INSTALLATION Methods

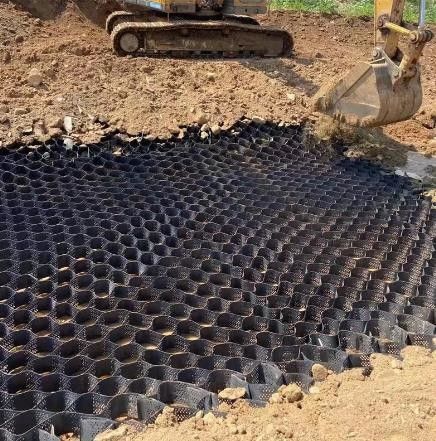

In construction, the geocell can be pulled into a network and launched into a three-dimensional honeycomb grid, then filled with soil, macadam, concrete or other granular materials to constitute to be a structure with strong lateral restriction and large stiffness.
Concrete construction method

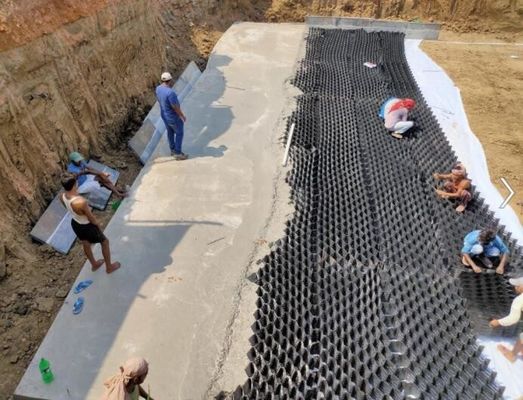

1.Open the superimposed geocell.
2.Fixed with nails or connected with the framework of stretching device.
3.Fill the particle filler until the full and beyond standard room to the top, then vibrate or roll to finish the primary work.
4.At this point, cell chamber system can support all kinds of construction equipment. The construction can be done directly in the above.
Specifications
| Index Properties | Test Method | Units | Values | |||||||
| Material | - | - | 100% Virgin HDPE | |||||||
| Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
| Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
| Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
| Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
| Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
| OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
| Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
| Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
| Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
| Dimensions | ||||||||||
| Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
| Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
| Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
| Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 | ||
 |
SOIL REINFORCEMETNGeomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement. |
|

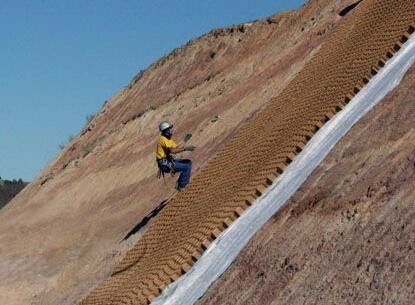

SLOPE PROTECTIONGeomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection. |
|
CHANNEL PROTECTIONGeomax®(Geocell) delivers stability and protection of channels |
|
RETAINING WALLSGeomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff. |
