ASTM Standard Geomembrane Sheet 60 Mil Hdpe Liner 1mm 2mm For Mining Projects Root Barrier

ASTM Standard Geomembrane Sheet 60 Mil Hdpe Liner 1mm 2mm For Mining Projects Root Barrier
ASTM Standard Geomembrane Sheet 60 Mil Hdpe Liner 1mm 2mm For Mining Projects Root Barrier ASTM Standard Geomembrane Sheet 60 Mil Hdpe Liner 1mm 2mm For Mining Projects Root Barrier

Large Image :  ASTM Standard Geomembrane Sheet 60 Mil Hdpe Liner 1mm 2mm For Mining Projects Root Barrier

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: Geomembrane
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Square Meter
Price: Negotiation
Packaging Details: Packed in The Woven Bags orCcustomized
Delivery Time: 7 -20days
Payment Terms: T/T, L/C
Supply Ability: 10000suqre Mater/Day
Contact Now

ASTM Standard Geomembrane Sheet 60 Mil Hdpe Liner 1mm 2mm For Mining Projects Root Barrier

Description
Material: HDPE LDPE LLDPE PVC PE Length: 50-200m
Width: 1m~8m Thickness: 0.2mm~3mm
Transport Package: HDPE Geomembrane Liner Is Packed In The Woven Bags Specification: 0.5mm 0.75mm 1.0mm 1.5mm 2mm
Origin: Anhui, China Application: Transportation Project, Hydraulic Project, Geotechnical Project, Environmental Project
Highlight:

ASTM geomembrane sheet

,

60 Mil geomembrane sheet

,

ASTM 60 mil hdpe liner



PRODUCT DESCRIPTION

ASTMStandard HDPE Liner 1mm 2mm Geomembrane For Mining Projects Root Barrier



Product Introduction

HDPE Geomembrane
The polyethylene geomembrane is made of high-quality polyethylene virgin resin, the main component is 97.5% polyethylene, 2.5% carbon black. The finished product has excellent resistance to chemical acid and alkali, UV resistance, strength, durability and stress tear resistance. It is widely used in waterproof industry, such as landfill, fish ponds, mining projects.



Specifications



Specification Test method Unit Type
thickness ASTM 05199 mm 0.75 1 1.25 1.5 2
density ASTM 0 1505 g/cm3. min. 0.939 0.939 0.939 0.939 0.939
tensile strength at yield ASTM 06693 KN/m. min. 11 15 18 22 29
tensile strength at break ASTM 06693 KN/m. min. 20 27 33 40 53
elongation at yield ASTM 06693 %.max. 12 12 12 12 12
elongation at break ASTM 06693 %.max. 700 700 700 700 700
tear resistance ASTM 0 1004 N 93 125 156 187 249
puncture resistance ASTM 04833 N 240 320 400 480 640
environment stress cracking resistance ASTM 05397 hr 300 300 300 300 300
carbon black content ASTM 0 1603 % 2-3 2-3 2-3 2-3 2-3
oxidation induction time (OIT) ASTM 03895 minute 100 100 100 100 100
low temperature
(-70'C)impact brittle		 ASTM 02136   pass pass pass pass pass
stream hydraulic conductivity   g.cm/(cm².s.Pa),
max.		 1x10¯13 1x10¯13 1x10¯13 1x10¯13 1x10¯13
dimension stability after 2 storge 1 h/100'C ASTM 0 1204 %.max 2 2 2 2 2

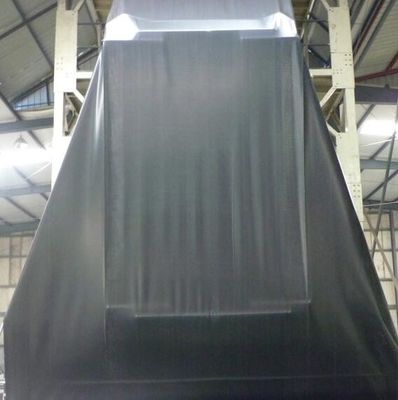

ASTM Standard Geomembrane Sheet 60 Mil Hdpe Liner 1mm 2mm For Mining Projects Root Barrier 0


 HCNS Manufacture

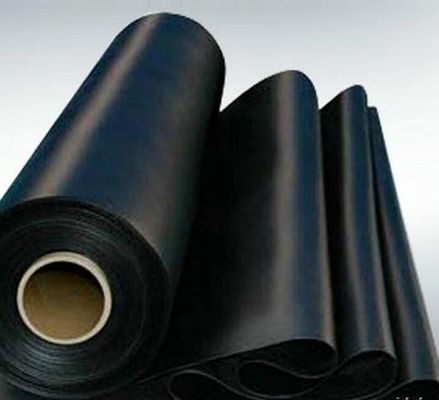

ASTM Standard Geomembrane Sheet 60 Mil Hdpe Liner 1mm 2mm For Mining Projects Root Barrier 1



Exhibition ASTM Standard Geomembrane Sheet 60 Mil Hdpe Liner 1mm 2mm For Mining Projects Root Barrier 2

Our Certificates and HDPE Geocell Testing reports

ASTM Standard Geomembrane Sheet 60 Mil Hdpe Liner 1mm 2mm For Mining Projects Root Barrier 3
