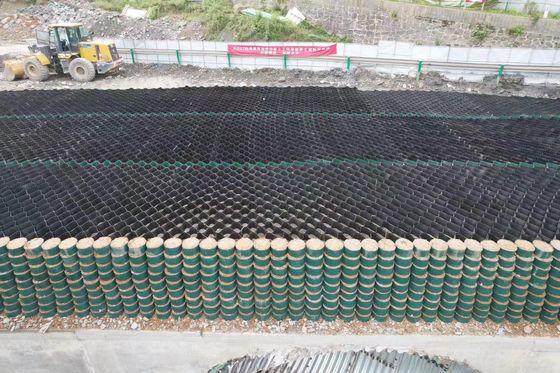

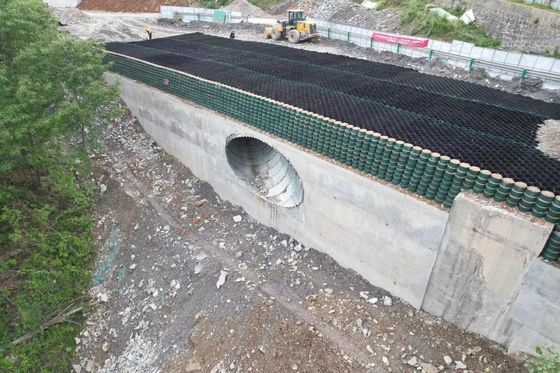

Earth Retention Structures Smooth / Perforated Plastic PP Geocell For Steep Slopes Retaining Wall

Earth Retention Structures Smooth / Perforated Plastic PP Geocell For Steep Slopes Retaining Wall
Earth Retention Structures Smooth / Perforated Plastic PP Geocell For Steep Slopes Retaining Wall Earth Retention Structures Smooth / Perforated Plastic PP Geocell For Steep Slopes Retaining Wall

Large Image :  Earth Retention Structures Smooth / Perforated Plastic PP Geocell For Steep Slopes Retaining Wall

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 150-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Contact Now

Earth Retention Structures Smooth / Perforated Plastic PP Geocell For Steep Slopes Retaining Wall

Description
Material: HDPE Type: 150-445
Color: Black Welding Space: 445mm
Thickness: 1.5mm Height: 150
Surface: Perforated Standard: ASTM
Highlight:

Perforated Plastic PP Geocell

,

Earth Retention Structures Plastic Gravel Grids

,

Steep Slopes Retaining Wall PP Geocell



PRODUCT DESCRIPTION

Plastic PP Geocell Earth Retention Structures Smooth/Perforated Geocell For Steep Slopes Retaining Wall



Product Introduction



Design green retaining walls that retain structural integrity even in poor base conditions. Construct low-impact development walls that reduce stormwater runoff and help meet green building goals.
Typical wall structures are Steepened Slopes, Reinforced Walls, Gravity Walls and Multi-Layered Channel Systems.
Why contractors prefer geocell retaining wall systems:
Sustainable Vegetation
The retaining wall system's open-celled horizontal terraces create a natural environment for sustainable vegetation. The vegetated system allows rain water to collect through the wall fascia, maximizing stormwater collection, and minimizing runoff.


Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









Application



Earth Retention Structures Smooth / Perforated Plastic PP Geocell For Steep Slopes Retaining Wall 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Earth Retention Structures Smooth / Perforated Plastic PP Geocell For Steep Slopes Retaining Wall 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Earth Retention Structures Smooth / Perforated Plastic PP Geocell For Steep Slopes Retaining Wall 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Earth Retention Structures Smooth / Perforated Plastic PP Geocell For Steep Slopes Retaining Wall 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

                                                                                                      HCNS Manufacture

Earth Retention Structures Smooth / Perforated Plastic PP Geocell For Steep Slopes Retaining Wall 4

Exhibition                                                                   Earth Retention Structures Smooth / Perforated Plastic PP Geocell For Steep Slopes Retaining Wall 5

Our Certificates and HDPE Geocell Testing reports

Earth Retention Structures Smooth / Perforated Plastic PP Geocell For Steep Slopes Retaining Wall 6
