1.5mm Thickness HDPE Plastic Geocell For Erosion Control And Road Construction

Certification
China Anhui Hechuang New Synthetic Materials Co., Ltd certification
China Anhui Hechuang New Synthetic Materials Co., Ltd certification
Customer Reviews
HCNS team is trustworthy, I have a project that needs Geocells, they offer me the right Geocell type and send free samples to us, after checking their samples, we buy and do our project very perfectly. Once we have a project for Geocell in the future, we will definitely cooperate with you again.

—— Tony

I'm Online Chat Now

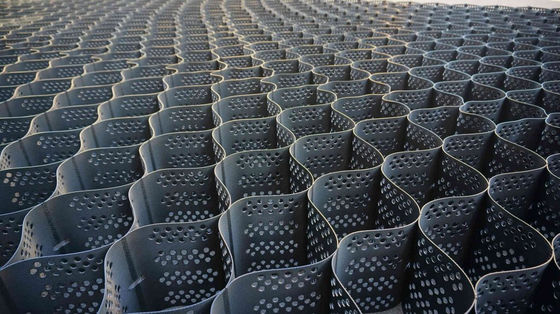

1.5mm Thickness HDPE Plastic Geocell For Erosion Control And Road Construction

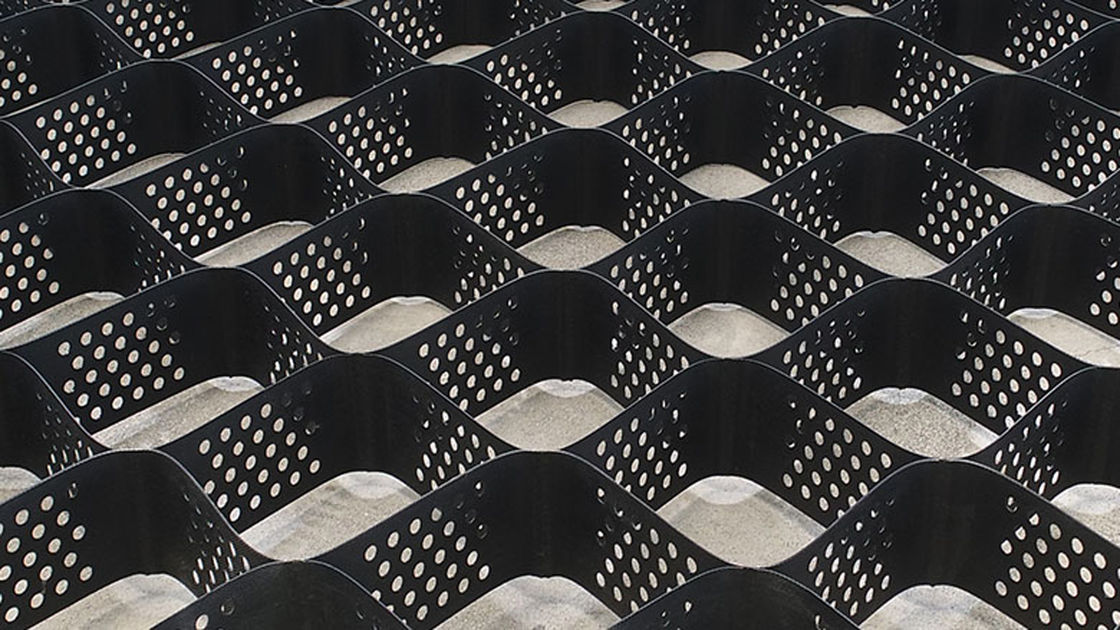

1.5mm Thickness HDPE Plastic Geocell For Erosion Control And Road Construction
1.5mm Thickness HDPE Plastic Geocell For Erosion Control And Road Construction 1.5mm Thickness HDPE Plastic Geocell For Erosion Control And Road Construction

Large Image :  1.5mm Thickness HDPE Plastic Geocell For Erosion Control And Road Construction

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 150-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

1.5mm Thickness HDPE Plastic Geocell For Erosion Control And Road Construction

Description
Material: HDPE Type: 150-445
Color: Black Welding Space: 445mm
Thickness: 1.5mm Height: 150
Surface: Perforated Standard: ASTM
High Light:

1.5mm Thickness HDPE Plastic Geocell

,

Road Construction HDPE Plastic Geocell

,

Erosion Control Perforated HDPE Geocell



PRODUCT DESCRIPTION

HDPE Plastic Geocell Erosion Control And Road Construction



Product Introduction

Geocell is also called "cellular confinement systems" academically .It is widely used in construction for erosion control, soil stabilization on flat ground and steep slopes, channel protection, and structural reinforcement for load support and earth retention.Typical cellular confinement systems are geosynthetics made with ultrasonically welded high-density polyethylene (HDPE) strips or PP and expanded on-site to form a honeycomb-like structure—and filled with sand, soil, rock, gravel or concrete.
Geocell strip widths, hence the on-site height, come in various sizes from 50 to 300 mm. Geocell walls are usually made from textured or structured polymer sheet so as to increase frictional resistance against the infill soil from displacement. Geocell are made of HDPE, PP, low-density polyethylene and nonwoven heat-bonded geotextiles. Geocell walls are typically perforated so as to allow for drainage from one cell to another. On steep slopes Geocell may have a tendon or cable extending through the central region up the slope and anchored to, or within, a concrete plinth so as to resist downgradient sliding of the system. The backfilling of Geocell on long and wide slopes is quite labor-intensive. Construction equipment called phneumatic sand-slingers or stone-slingers have been used advantageously.



Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









Application



1.5mm Thickness HDPE Plastic Geocell For Erosion Control And Road Construction 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



1.5mm Thickness HDPE Plastic Geocell For Erosion Control And Road Construction 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





1.5mm Thickness HDPE Plastic Geocell For Erosion Control And Road Construction 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





1.5mm Thickness HDPE Plastic Geocell For Erosion Control And Road Construction 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

                                                                                                      HCNS Manufacture

1.5mm Thickness HDPE Plastic Geocell For Erosion Control And Road Construction 4

Exhibition                                                                   1.5mm Thickness HDPE Plastic Geocell For Erosion Control And Road Construction 5

Our Certificates and HDPE Geocell Testing reports

1.5mm Thickness HDPE Plastic Geocell For Erosion Control And Road Construction 6
