HDPE Geocell Used In Road Construction, Ultrasonic Welding Geocell For Soil Stabilization

HDPE Geocell Used In Road Construction, Ultrasonic Welding Geocell For Soil Stabilization
HDPE Geocell Used In Road Construction, Ultrasonic Welding Geocell For Soil Stabilization HDPE Geocell Used In Road Construction, Ultrasonic Welding Geocell For Soil Stabilization

Large Image :  HDPE Geocell Used In Road Construction, Ultrasonic Welding Geocell For Soil Stabilization

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 150-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

HDPE Geocell Used In Road Construction, Ultrasonic Welding Geocell For Soil Stabilization

Description
Material: HDPE Type: 150-445
Color: Black Welding Space: 445mm
Thickness: 1.5mm Height: 150
Surface: Perforated Standard: ASTM
High Light:

Road Construction HDPE Geo Cell Grid

,

HDPE Ultrasonic Welding Geocell

,

Soil Stabilization Ultrasonic Welding Geocell



PRODUCT DESCRIPTION

HDPE Geocell Used In Road Construction Ultrasonic Welding Geocell For Soil-Stabilation



Product Introduction



Our main products include Geocell , Geomembrane , Cement blanket , Geotextile , Geogrid , 3D Geomat , GCL , etc.
We are a powerful manufacturer , stable supply of goods , the quality of products are guaranteed!
We have a professional sales team to provide you with good pre-sale and after-sale service.
Welcome your inquiry!



Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









Application



HDPE Geocell Used In Road Construction, Ultrasonic Welding Geocell For Soil Stabilization 0

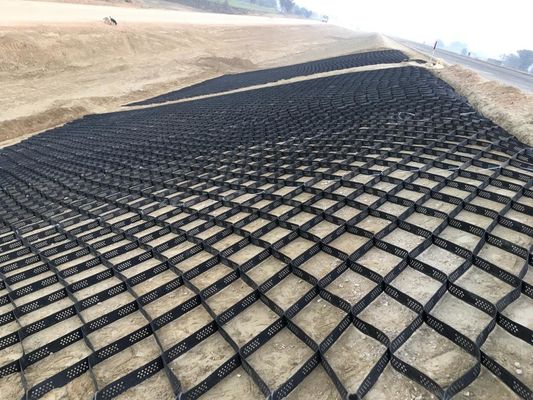

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



HDPE Geocell Used In Road Construction, Ultrasonic Welding Geocell For Soil Stabilization 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





HDPE Geocell Used In Road Construction, Ultrasonic Welding Geocell For Soil Stabilization 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





HDPE Geocell Used In Road Construction, Ultrasonic Welding Geocell For Soil Stabilization 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

                                                                                                      HCNS Manufacture

HDPE Geocell Used In Road Construction, Ultrasonic Welding Geocell For Soil Stabilization 4

Exhibition                                                                   HDPE Geocell Used In Road Construction, Ultrasonic Welding Geocell For Soil Stabilization 5

Our Certificates and HDPE Geocell Testing reports

HDPE Geocell Used In Road Construction, Ultrasonic Welding Geocell For Soil Stabilization 6
