HDPE Geocell Driveway For Road And Slope Protection, Gravel Grid Geocells

HDPE Geocell Driveway For Road And Slope Protection, Gravel Grid Geocells
HDPE Geocell Driveway For Road And Slope Protection, Gravel Grid Geocells HDPE Geocell Driveway For Road And Slope Protection, Gravel Grid Geocells

Large Image :  HDPE Geocell Driveway For Road And Slope Protection, Gravel Grid Geocells

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 200-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

HDPE Geocell Driveway For Road And Slope Protection, Gravel Grid Geocells

Description
Material: HDPE Type: 200-445
Color: Black Welding Space: 445mm
Thickness: 1.5mm Height: 200
Surface: Perforated Standard: ASTM
High Light:

HDPE Geocell Driveway For Road

,

HDPE geocell driveway

,

Slope Protection Gravel Grid Geocells



PRODUCT DESCRIPTION

HDPE Geocell driveway for road and slope protection HDPE geocell gravel grid Geocells



Product Introduction



1, Height:

From 50mm to 300mm, regular types are 50mm, 75mm, 100mm, 150mm, and 200mm, which are the most popular heights used on different kinds of Geocell projects.

2, Welding Distance:

From 300mm to 1000mm, regular types are 330mm, 356mm, 445mm, 660mm, and 712mm which are widely used on different kinds of Geocell projects.

3, Smooth & Textured Surface

Perforations and a textured surface increase the friction angle between aggregate infill and the cell wall, generating better aggregate lockup and greater overall load distribution.

4, Perforated & No-Perforated type

Perforations facilitate parallel slope drainage of the infilled cell. In saturated conditions, the removal of excess water increases infill friction, reducing downslope sliding forces, resulting in a more stable system.

5, Colors

Black, green, gray, sand, and yellow colors are available for us.





Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









Application



HDPE Geocell Driveway For Road And Slope Protection, Gravel Grid Geocells 0

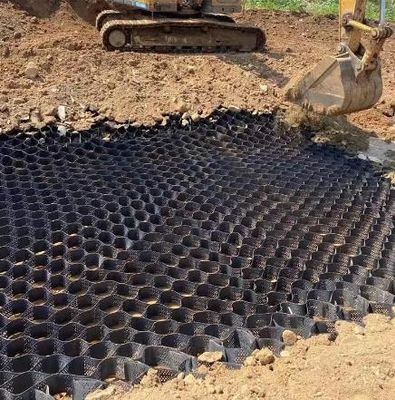

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



HDPE Geocell Driveway For Road And Slope Protection, Gravel Grid Geocells 1

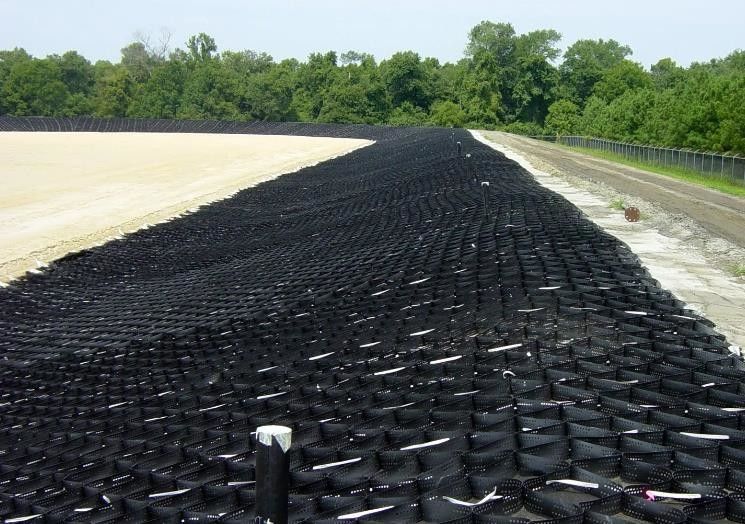

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





HDPE Geocell Driveway For Road And Slope Protection, Gravel Grid Geocells 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





HDPE Geocell Driveway For Road And Slope Protection, Gravel Grid Geocells 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

                                                                                                      HCNS Manufacture

HDPE Geocell Driveway For Road And Slope Protection, Gravel Grid Geocells 4

Exhibition                                                                   HDPE Geocell Driveway For Road And Slope Protection, Gravel Grid Geocells 5

Our Certificates and HDPE Geocell Testing reports

HDPE Geocell Driveway For Road And Slope Protection, Gravel Grid Geocells 6
