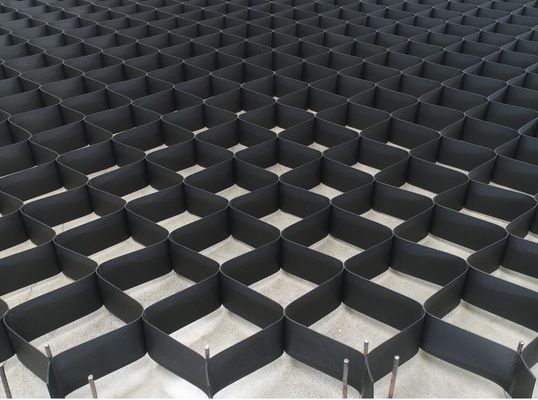

Large Image :  Smooth Surface Textured Surface HDPE 3D Geocell For Road Geocell Gravel Grid Geocell Driveway

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 150-445
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation

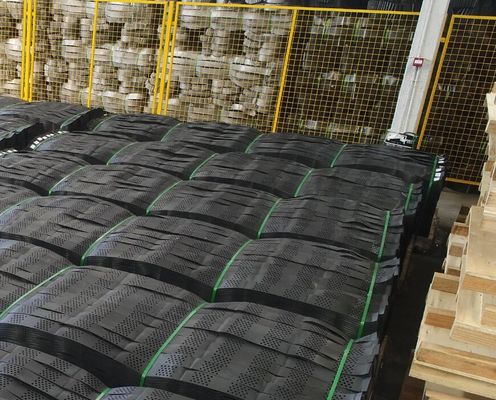

Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Smooth Surface Textured Surface HDPE 3D Geocell For Road Geocell Gravel Grid Geocell Driveway

Description
Material: HDPE Type: 150-445
Color: Black Welding Space: 445mm
Thickness: 1.5mm Height: 150
Surface: Perforated Standard: ASTM



PRODUCT DESCRIPTION

Smooth Surface Textured Surface HDPE 3D Geocell For Road Geocell Gravel Grid Geocell Driveway



Product Introduction



Geocell is a three-dimensional mesh cell structure formed by high strength welding of REINFORCED HDPE sheet material. It is generally made by ultrasonic needle welding. Due to engineering needs, some holes are drilled on the membrane. From the appearance of geocell, it can be classified into several types, including smooth geocell, punching geocell and textured geocell. There are national standard and non-standard geocells.





Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









Application



Smooth Surface Textured Surface HDPE 3D Geocell For Road Geocell Gravel Grid Geocell Driveway 0

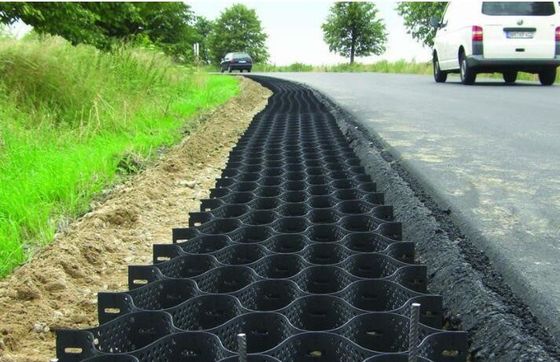

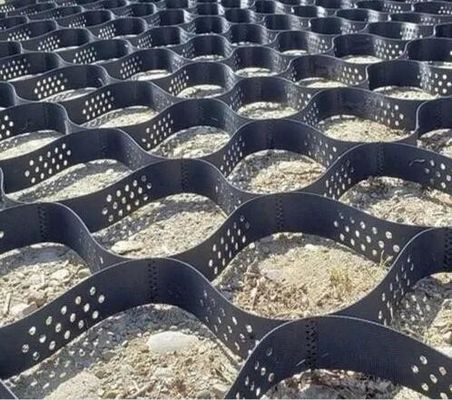

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Smooth Surface Textured Surface HDPE 3D Geocell For Road Geocell Gravel Grid Geocell Driveway 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Smooth Surface Textured Surface HDPE 3D Geocell For Road Geocell Gravel Grid Geocell Driveway 2

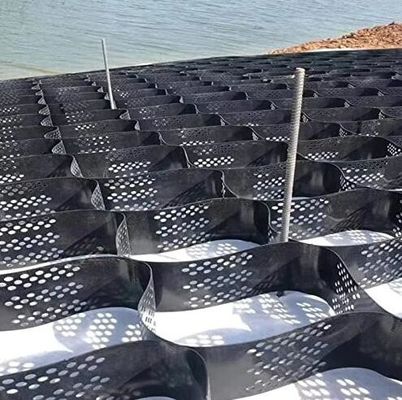

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Smooth Surface Textured Surface HDPE 3D Geocell For Road Geocell Gravel Grid Geocell Driveway 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

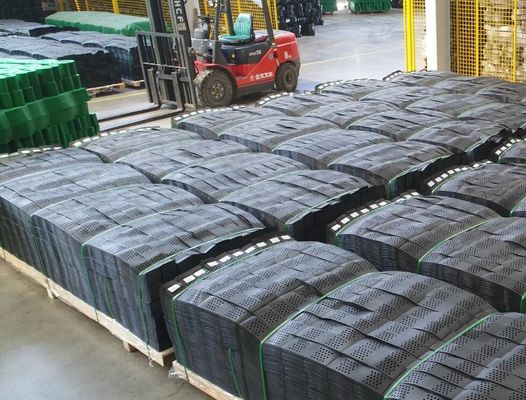

                                                                                                      HCNS Manufacture

Smooth Surface Textured Surface HDPE 3D Geocell For Road Geocell Gravel Grid Geocell Driveway 4

Exhibition                                                                   Smooth Surface Textured Surface HDPE 3D Geocell For Road Geocell Gravel Grid Geocell Driveway 5

Our Certificates and HDPE Geocell Testing reports

Smooth Surface Textured Surface HDPE 3D Geocell For Road Geocell Gravel Grid Geocell Driveway 6
