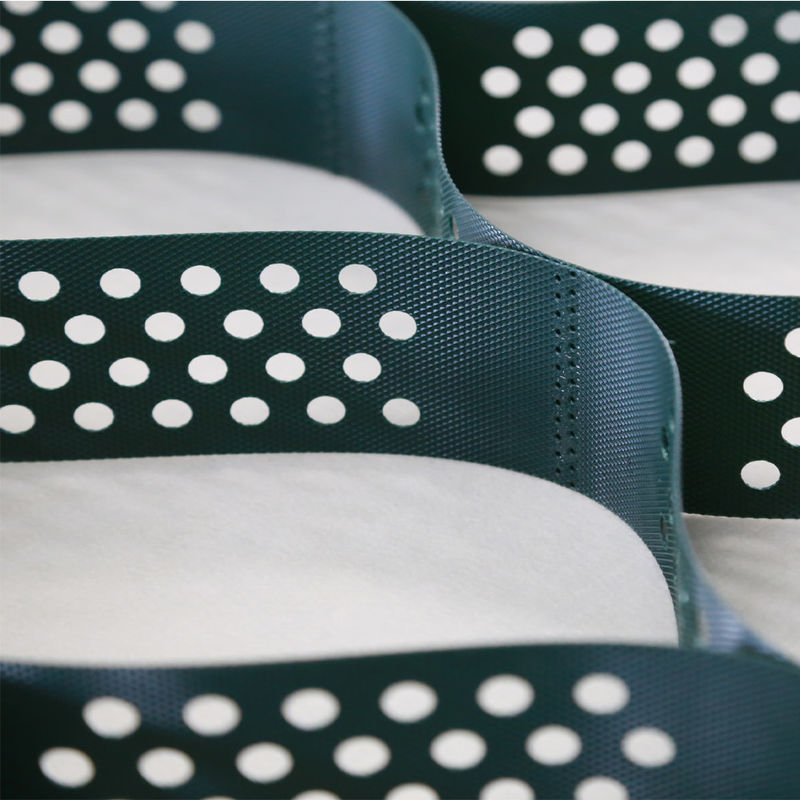

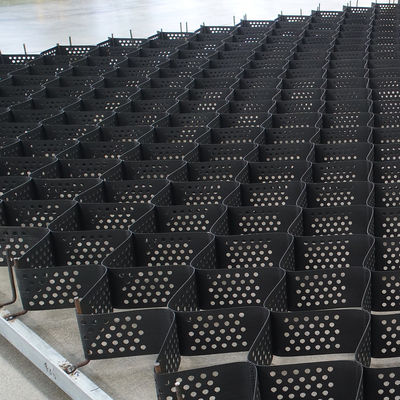

Height 100mm Hdpe Geocell Retaining Wall Geocell 445mm Road Construction

Height 100mm Hdpe Geocell Retaining Wall Geocell 445mm Road Construction
Height 100mm Hdpe Geocell Retaining Wall Geocell 445mm Road Construction Height 100mm Hdpe Geocell Retaining Wall Geocell 445mm Road Construction Height 100mm Hdpe Geocell Retaining Wall Geocell 445mm Road Construction

Large Image :  Height 100mm Hdpe Geocell Retaining Wall Geocell 445mm Road Construction

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.27-100-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Height 100mm Hdpe Geocell Retaining Wall Geocell 445mm Road Construction

Description
Material: High Density Polyethylene Standard: ASTM
Geocell Height: 100 Geocell Type: 100-445
Color: Green Or Customized Welding Space: 445mm
Geocell Thickness: 1.27mm Surface: Perforated

Height 100mm Hdpe Geocell Retaining Wall Geocell 445mm Road Construction





Product Introduction

The GEOMAX HDPE geocells are efficient and economical for fast-built unpaved roadways and retaining walls, erosion control of slopes, and stormwater control in channels. Infill options include sand, aggregate, grass/vegetation, or concrete. Applications using the GEOMAX HDPE GEOCELLS system can be designed using specific plants to meet unique climate conditions.

Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

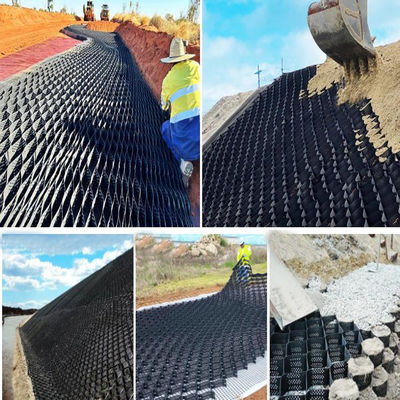

APPLICATION

Height 100mm Hdpe Geocell Retaining Wall Geocell 445mm Road Construction 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Height 100mm Hdpe Geocell Retaining Wall Geocell 445mm Road Construction 1

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Height 100mm Hdpe Geocell Retaining Wall Geocell 445mm Road Construction 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Height 100mm Hdpe Geocell Retaining Wall Geocell 445mm Road Construction 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

Height 100mm Hdpe Geocell Retaining Wall Geocell 445mm Road Construction 4



INVENTION AND TESTING

Height 100mm Hdpe Geocell Retaining Wall Geocell 445mm Road Construction 5



PRODUCT AREA

Height 100mm Hdpe Geocell Retaining Wall Geocell 445mm Road Construction 6



CERTIFICATES

Height 100mm Hdpe Geocell Retaining Wall Geocell 445mm Road Construction 7
