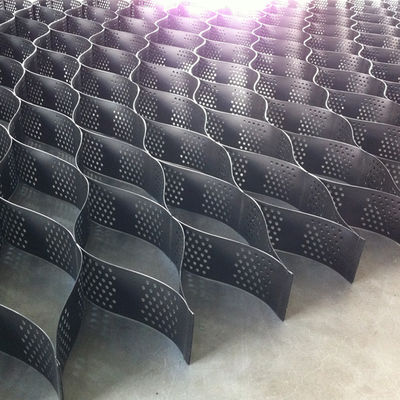

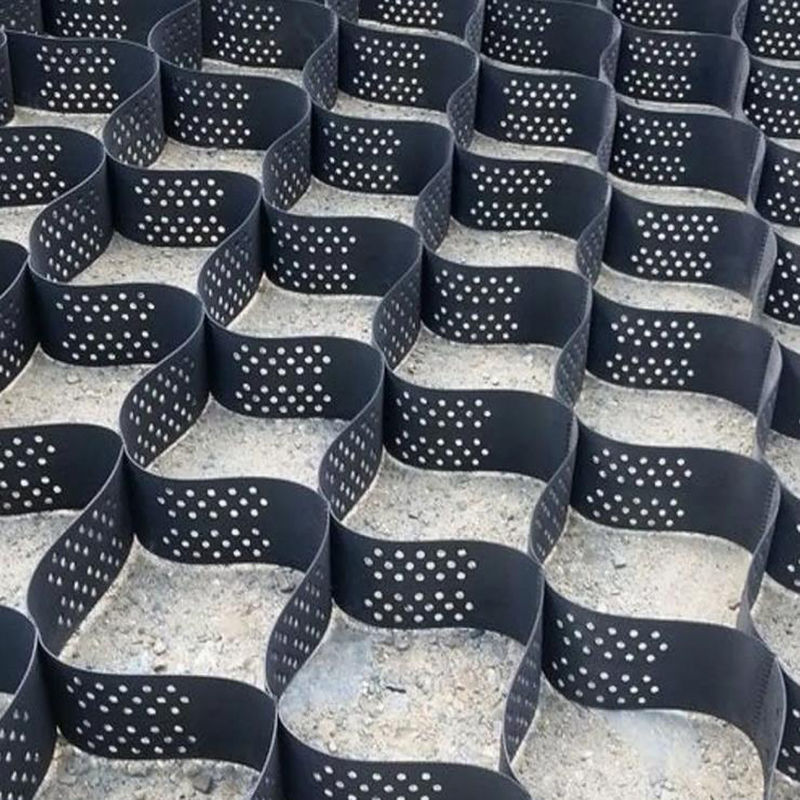

Hdpe Geocell High Quality Honeycomb Gravel Stabilizer Driveway Retaining Wall Geocell 330mm

Hdpe Geocell High Quality Honeycomb Gravel Stabilizer Driveway Retaining Wall Geocell 330mm
Hdpe Geocell High Quality Honeycomb Gravel Stabilizer Driveway Retaining Wall Geocell 330mm Hdpe Geocell High Quality Honeycomb Gravel Stabilizer Driveway Retaining Wall Geocell 330mm Hdpe Geocell High Quality Honeycomb Gravel Stabilizer Driveway Retaining Wall Geocell 330mm

Large Image :  Hdpe Geocell High Quality Honeycomb Gravel Stabilizer Driveway Retaining Wall Geocell 330mm

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-150-330
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Hdpe Geocell High Quality Honeycomb Gravel Stabilizer Driveway Retaining Wall Geocell 330mm

Description
Material: HDPE Plastic Geocell Standard: ASTM
Height: 150 Model: 150-330
Geocell Color: Black Or Customized Welding Space: 330mm
Thickness: 1.5mm Surface: Smooth&Perforated

Hdpe Geocell High Quality Honeycomb Gravel Stabilizer Driveway Retaining Wall Geocell 330mm





Product Introduction

Design vegetated reinforced and gravity walls that retain structural integrity even in poor base conditions with GEOMAX retaining walls. The GEOMAX hdpe geocell open-celled terraces create a natural environment for sustainable vegetation and allow stormwater infiltration. GEOMAX walls conform well to landscape contours, are resistant to environmental degradation, and install 25-30% faster than MSE block walls. HCNS hdpe geocell offers free design software to create GEOMAX Retaining Walls

Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









APPLICATION

Hdpe Geocell High Quality Honeycomb Gravel Stabilizer Driveway Retaining Wall Geocell 330mm 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Hdpe Geocell High Quality Honeycomb Gravel Stabilizer Driveway Retaining Wall Geocell 330mm 1

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Hdpe Geocell High Quality Honeycomb Gravel Stabilizer Driveway Retaining Wall Geocell 330mm 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Hdpe Geocell High Quality Honeycomb Gravel Stabilizer Driveway Retaining Wall Geocell 330mm 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

Hdpe Geocell High Quality Honeycomb Gravel Stabilizer Driveway Retaining Wall Geocell 330mm 4



INVENTION AND TESTING

Hdpe Geocell High Quality Honeycomb Gravel Stabilizer Driveway Retaining Wall Geocell 330mm 5



PRODUCT AREA

Hdpe Geocell High Quality Honeycomb Gravel Stabilizer Driveway Retaining Wall Geocell 330mm 6



CERTIFICATES

Hdpe Geocell High Quality Honeycomb Gravel Stabilizer Driveway Retaining Wall Geocell 330mm 7
