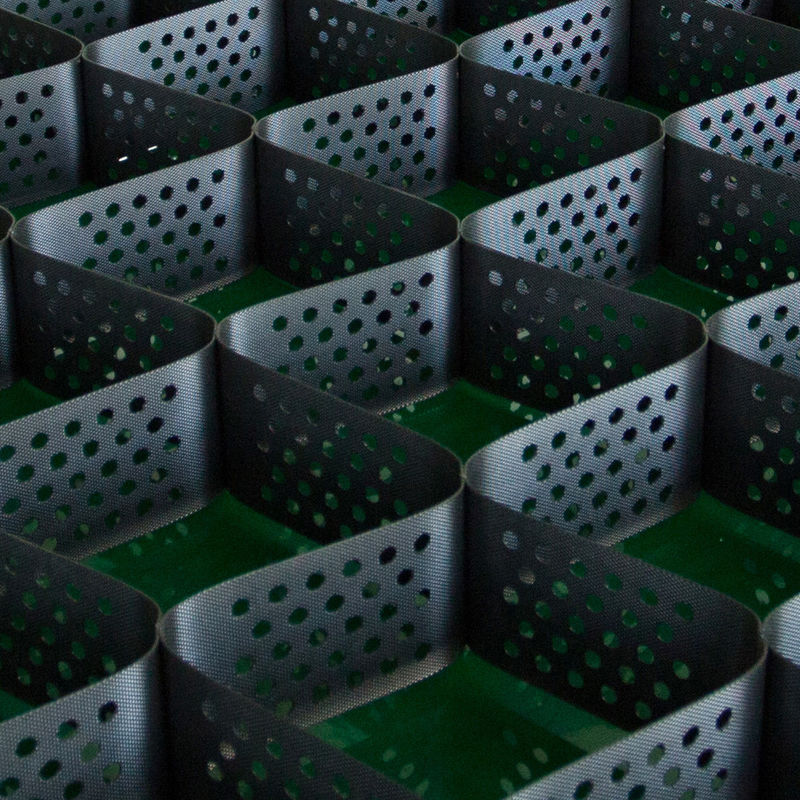

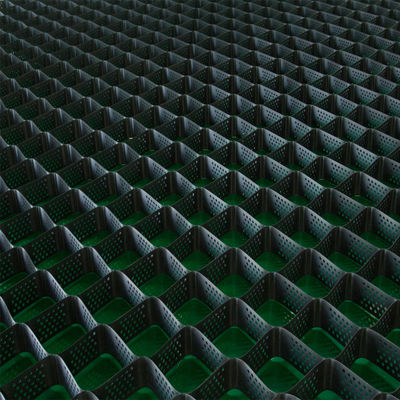

100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell

100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell
100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell
100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell 100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell 100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell 100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell

Large Image :  100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-100-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell

Description
Raw Material: HDPE Plastic GeoMax Standard: ASTM
Cell Height: 50mm-300mm Geomax Model: GM445
Color: Black, Green, Brown, Black Yellow White Green, Green Or As Per Request Welding Space: 445mm
Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated
Highlight:

100mm Plastic HDPE Gravel Stabilizer

,

Smooth Textured HDPE Gravel Stabilizer

,

200mm Plastic HDPE Gravel Stabilizer

100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell





Product Introduction

High strength and stability: GEOMAX high-strength geocell has excellent strength and stability, and can withstand various complex environmental tests. Whether in mountainous areas, river management, or highway construction, it can effectively prevent soil erosion and landslides, ensuring the long-term stability of the project.

Environmentally friendly materials: GEOMAX  high-strength geogrid is made of environmentally friendly materials, which are also recyclable and reusable. This is not only beneficial for protecting the environment, but also in line with the green and sustainable development concept of modern engineering construction.

Easy construction: Due to its unique structural design, the installation of GEOMAX high-strength geogrid is simple and does not require special tools or skills. This greatly reduces the difficulty of construction, shortens the project cycle, and saves costs.

Wide adaptability: Whether on plains, mountains, or riverbanks, GEOMAX high-strength geogrids can be adjusted appropriately according to terrain and landforms to achieve perfect soil stability.

Durable and long-lasting: High quality materials and advanced production processes give GEOMAX high-strength geocell a long service life. After reasonable maintenance, it can maintain good performance for a long time, greatly reducing maintenance costs.

Good drainage performance: The open structure of the high-strength geocell in GEOMAX helps improve the drainage performance of the soil and prevent problems caused by high soil moisture. This is very important for many types of soil stabilization projects.

Reducing engineering costs: Due to its excellent performance and simple construction method, the use of GEOMAX high-strength geocell can effectively reduce engineering costs and improve the economic benefits of the project.



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

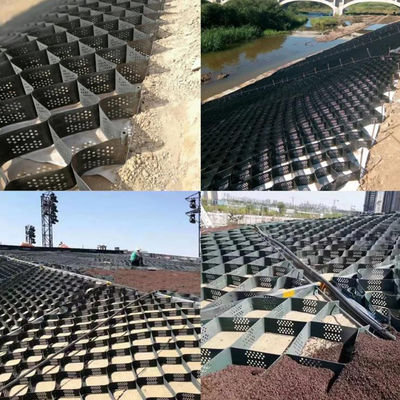

APPLICATION

100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell 1

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell 4



INVENTION AND TESTING

100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell 5



PRODUCT AREA

100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell 6



CERTIFICATES

100mm Plastic HDPE Gravel Stabilizer HDPE Smooth Textured 200mm Plastic Hdpe Geocell 7
