HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm

HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm
HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm
HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm

Large Image :  HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-100-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Contact Now

HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm

Description
Raw Material: HDPE Plastic GeoMax Standard: ASTM
Cell Height: 50mm-300mm Geomax Model: GM445
Color: Black, Green, Brown, Black Yellow White Green, Green Or As Per Request Welding Space: 445mm
Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated
Highlight:

Perforated Gravel Grid HDPE Plastic Geocell

,

445mm HDPE Plastic Geocell

,

Honeycomb Textured HDPE Plastic Geocell

HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm





Product Introduction

When choosing hdpe geocell, the following factors need to be considered:

Engineering requirements: Different engineering projects have different requirements for hdpe geocell, and suitable specifications and models need to be selected according to specific needs.

Material quality: Choose high-quality plastic materials to ensure the durability and stability of the compartment.

Welding quality: Welding quality directly affects the bearing capacity of hdpe geocell. Choose products with smooth welding, no virtual welding, and no burrs to ensure welding quality.

Size and thickness: Select appropriate size and thickness according to engineering requirements to ensure that the hdpe geocell can meet the requirements of bearing capacity and stability.

Environmental requirements: Consider selecting recyclable and reusable hdpe geocell to meet environmental requirements.



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

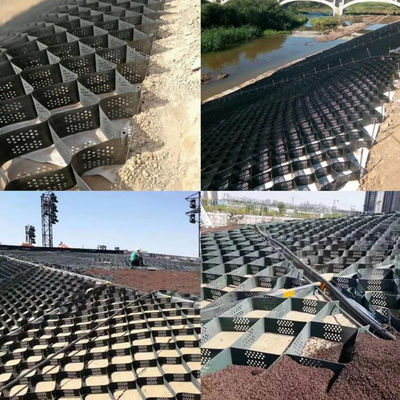

APPLICATION

HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm 1

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm 4



INVENTION AND TESTING

HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm 5



PRODUCT AREA

HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm 6



CERTIFICATES

HDPE Plastic Geocell Honeycomb Textured Perforated Gravel Grid Geocells 100-445mm 7
