HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength

HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength
HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength
HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength

Large Image :  HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE
Model Number: GM100-330
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day
Contact Now

HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength

Description
Material: 100% HDPE Plastic Cell Thickness: 1.2mm
Surface: Smooth Or Textured Surface Tensile Strength: 25kN/m
Standard: ASTM; GB Standard Peel Strength: 14.2 KN/m
Height: 100mm Color: Black
Welding Distance: 330mm Density: 0.950 G/cm3

HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® HDPE Geocells provide a robust cellular confinement system engineered to enhance ground stability in challenging applications. Constructed from high-grade, UV-stabilized high-density polyethylene (HDPE), these units deliver superior resistance to chemical degradation, mechanical stress, and ultraviolet radiation, ensuring longevity for both permanent infrastructure and temporary stabilization projects. Manufactured under strict quality assurance protocols and certified to ISO and CE standards, GeoMax® guarantees consistent performance and extended service life under severe conditions. Typical applications include reinforcing roadbeds and railway foundations, stabilizing slopes and embankments, strengthening mine access roads, supporting retaining structures, facilitating green construction, and securing waste containment areas. By effectively distributing loads and restricting soil displacement, GeoMax® minimizes the requirement for imported fill, leading to significant reductions in project expenditure and construction duration, particularly on poor or compressible subsoils.

SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

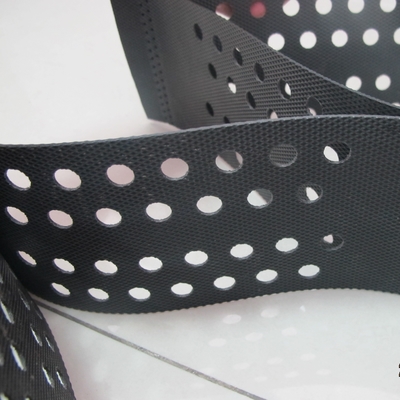

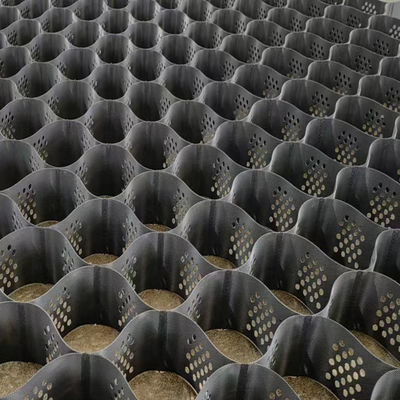

DETAILED PHOTOS

HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength 0 HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength 1

HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength 2 HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength 3

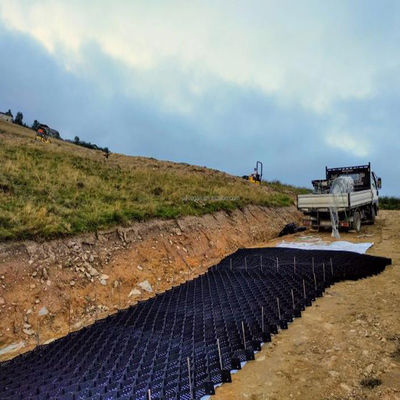

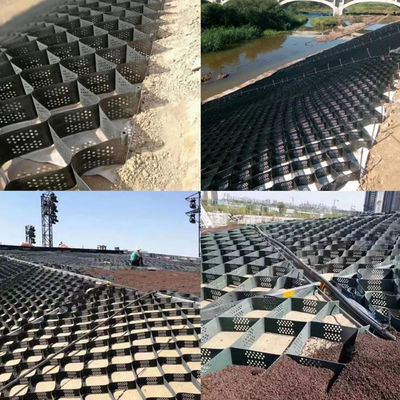

APPLICATIONS

HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength 5

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

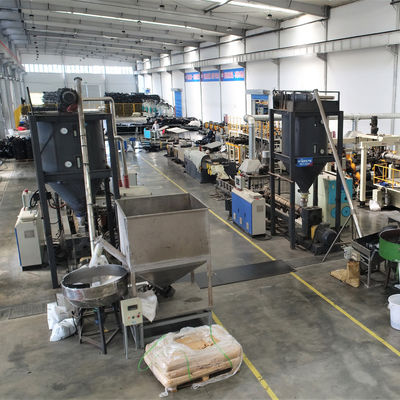

PRODUCTION LINE

HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength 8

INVENTION AND TESTING

HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength 9



PRODUCT AREA

HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength 10

CERTIFICATES

HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength 11

PHOTO OF THE EXHIBITION

HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength 12



FAQ:

Q: What is Geocell made from?
A: GeoMax® Geocells are made from high-density polyethylene (HDPE), offering excellent strength and durability. Ultrasonic welding ensures structural integrity, while perforations allow for natural drainage and soil stability.



Q: What if my project dimensions don’t match the Geocell panels?
A: No worries! We offer custom-designed Geocell grids tailored to your project’s specifications. The flexible design allows them to fit around obstacles such as drainage pipes, trees, and structures—something rigid materials like concrete or steel cannot accommodate.



Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.



Q: Where is GeoMax Geocell produced?
A: GeoMax Geocell is produced in Anhui, China.


Q: Do you offer customized sizes?
A: Yes, we manufacture Geocell panels in custom sizes to meet your specific project requirements.



Q: What standards do you follow?
A: We conduct extensive testing to meet ASTM and GB standards. We’re happy to share product specifications or provide a free commercial evaluation tailored to your project’s needs.

HDPE Geocell 100mm Depth 330x330mm Cells 1.2mm Soil Stabilization UV ESCR Erosion Control Grid High Tensile Strength 13
