Yellow Hdpe Geocell 50mm Height 660mm Welded Distance Slope Protection High Quality Strong Tensile Strength

Name: Yellow Hdpe Geocell 50mm Height 660mm Welded Distance Slope Protection High Quality Strong Tensile Strength
Brand: Anhui Hechuang New Synthetic Materials Co., Ltd
SKU: GM50-660
Price: 9.50 USD
Availability: InStock

All Products

HDPE Geocell
(260)

Slope Protection Geocell
(81)

Geocell For Road Construction
(85)

Erosion Control Geocell
(27)

Geocell Ground Grid
(6)

Geo Cell Grid
(7)

Geobin Compost Bin
(10)

HDPE Liner Sheet
(11)

Soil Reinforcement Geogrid
(20)

HDPE Geomembrane Sheet
(11)

Geotextile Fabric
(18)

Certification

Customer Reviews

HCNS team is trustworthy, I have a project that needs Geocells, they offer me the right Geocell type and send free samples to us, after checking their samples, we buy and do our project very perfectly. Once we have a project for Geocell in the future, we will definitely cooperate with you again.

—— Tony

I'm Online Chat Now

Yellow Hdpe Geocell 50mm Height 660mm Welded Distance Slope Protection High Quality Strong Tensile Strength

Large Image : Yellow Hdpe Geocell 50mm Height 660mm Welded Distance Slope Protection High Quality Strong Tensile Strength

Product Details:

Place of Origin:	ANHUI
Brand Name:	GeoMax
Certification:	CE;ISO
Model Number:	GM50-660

Payment & Shipping Terms:

Minimum Order Quantity:	3500 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

Yellow Hdpe Geocell 50mm Height 660mm Welded Distance Slope Protection High Quality Strong Tensile Strength

Description

Geocell Material:	HDPE	HDPE Geocell Thickness:	1.5mm
Standard:	ASTM Or GB Standard	Geocell Height:	50mm
Cell Size:	75-445	Surface:	Textured
Welding Space:	660mm	Density:	0.950 G/cm3
Carbon Black:	1.5%	Peeling Strength:	10-14.2kN/m
Tensile Strength:	25kN/m

Yellow Hdpe Geocell 50mm Height 660mm Welded Distance Slope Protection High Quality Strong Tensile Strength

GEOCELL PRODUCT INTRODUCTION

GeoMax® is a top innovator in geotechnical engineering, with over 20 years of experience in cellular confinement systems. We've got over 100 patented technologies backing us up, so we can deliver top-notch solutions for ground stabilization, erosion control, and soil reinforcement.

Our geocells are designed for exceptional strength, flexibility, and long-term performance, meeting the demands of modern infrastructure and environmental challenges. All our products are ISO and CE certified, and we manufacture them under rigorous quality standards to make sure they're reliable and meet global compliance.

GeoMax® offers fully customized solutions that are tailored to fit your project's specific needs. We're all about engineering excellence and making sure our clients succeed. We help build smarter, stronger, and more sustainable ground systems around the world.

This innovative system offers value-engineered solutions for a wide range of infrastructure applications, including driveways, highways, railways, landscapes, landfills, parking lots, and pipelines. By reducing overall project costs, minimizing environmental impact, and streamlining installation, it delivers significant savings in both time and labor.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

DETAILED PHOTOS

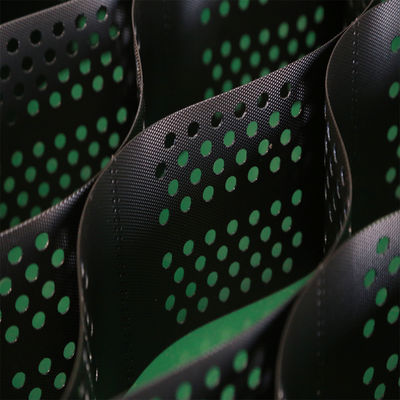

Yellow Hdpe Geocell 50mm Height 660mm Welded Distance Slope Protection High Quality Strong Tensile Strength 0

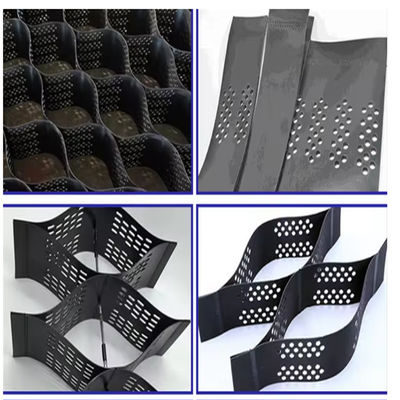

Yellow Hdpe Geocell 50mm Height 660mm Welded Distance Slope Protection High Quality Strong Tensile Strength 2

GEOCELL APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

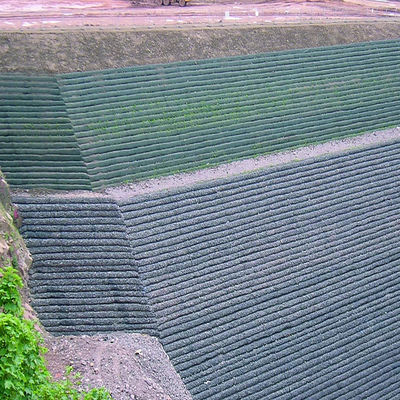

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

GEOCELL PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

CERTIFICATES

PHOTO OF THE EXHIBITION

Yellow Hdpe Geocell 50mm Height 660mm Welded Distance Slope Protection High Quality Strong Tensile Strength 12

FAQ:

Q: What is Geocell made from?
A: GeoMax® Geocells are made from high-density polyethylene (HDPE), offering excellent strength and durability. Ultrasonic welding ensures structural integrity, while perforations allow for natural drainage and soil stability.

Q: How to prevent infill loss?
A:Top Layer Geotextile: Prevents washout.

Use Cohesive Soil-Crushed Stone Mix.

Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.

Q: Do you offer customized sizes?
A: Yes, we manufacture Geocell panels in custom sizes to meet your specific project requirements.

Q: Where can Geocells be used?
A:Roads/Railways: Load distribution over weak subgrades.

Slopes: Erosion control and vegetation support.

Temporary Access Roads: Rapid deployment on soft ground.

Retaining Walls: Cost-effective alternative to gabions.

Q: Are Geocells eco-friendly?
A:

Recyclable: HDPE can be repurposed.
Vegetation-Compatible: Some designs allow root penetration.
