Slope Stabilization Welded Geocell HDPE 150mm Height Perforated Black ESCR High OIT

Large Image : Slope Stabilization Welded Geocell HDPE 150mm Height Perforated Black ESCR High OIT

Product Details:

Place of Origin:	ANHUI,CHINA
Brand Name:	GeoMax
Certification:	ISO9001-2015;CE
Model Number:	GM150-445

Payment & Shipping Terms:

Minimum Order Quantity:	3600 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

Slope Stabilization Welded Geocell HDPE 150mm Height Perforated Black ESCR High OIT

Description

Geocell Material:	High Density Polyethylene	Thickness:	1.2mm-1.5mm
Geocell Standard:	ASTM Or GB Standard	HDPE Geocell Height:	100mm
Geocell Surface:	Textured& Perforated	Welded Distance:	445mm
HDPE Geocell Density:	0.950 G/cm3	Geocell Carbon Black:	1.5%
Geocell Peeling Strength:	10-14.2kN/m	HDPE Geocell Tensile Strength:	25kN/m
Quantity:	3600m2	Environmental Stress Crack Resistance:	5000 Hours
Oxidation Induction Time:	150

Slope Stabilization Welded Geocell HDPE 150mm Height Perforated Black ESCR High OIT

PRODUCT INTRODUCTION

GeoMax® Geocells are incredibly strong 3D honeycomb structures made of high-density polyethylene (HDPE) sheets that are welded together using ultrasound.

These honeycombs can be filled with whatever you like—sand, soil, or other materials from your area. This makes them an incredibly useful and affordable solution for a wide range of geotechnical projects.

This innovative system is an incredible value for the money! It's perfect for driveways, highways, railroads, landscaping, landfills, parking lots, and pipelines. This system is incredible! It saves a ton of time and labor by reducing project costs, reducing environmental impact, and making installation a breeze.

GEOCELL SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

GEOMAX DETAILED PHOTOS

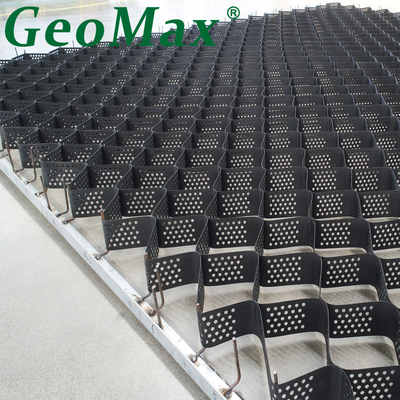

Slope Stabilization Welded Geocell HDPE 150mm Height Perforated Black ESCR High OIT 0

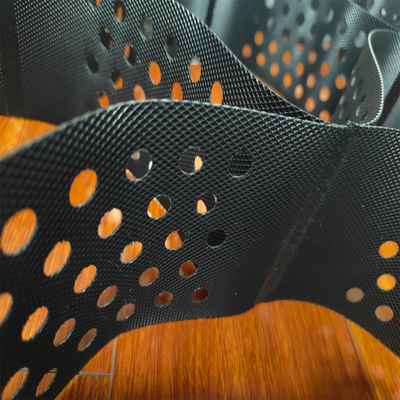

Slope Stabilization Welded Geocell HDPE 150mm Height Perforated Black ESCR High OIT 2

GEOCELL APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

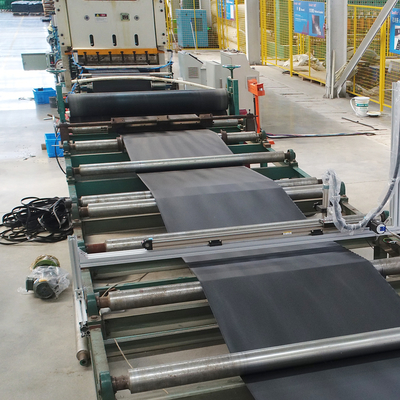

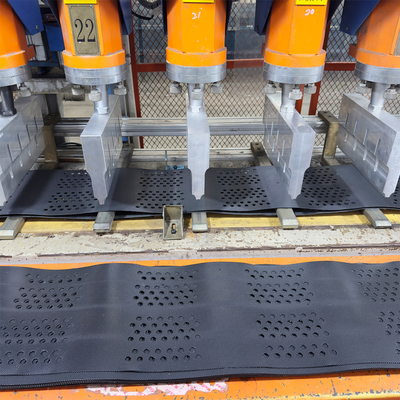

GEOCELL PRODUCT AREA

GEOMAX CERTIFICATES

PHOTO OF THE EXHIBITION

Slope Stabilization Welded Geocell HDPE 150mm Height Perforated Black ESCR High OIT 10

FAQ:

Q: Does the product have a warranty? How does after-sales service work during the warranty period?
A: A 10-year warranty is offered. For damage due to material defects within the warranty period, free replacement is provided. The after-sales team responds within 24 hours and provides solutions within 48 hours.

Q: Has Geocell passed third-party testing? What certifications does it have?
A: Products are tested by third parties (e.g., SGS, Intertek) and certified with CE, ISO9001, ISO14001, etc. Complete test reports and certification documents are available

Q: In which specific projects is Geocell suitable?
A: Widely used in road subbases, parking lots, riverbank revetments, golf courses, airport runway foundations, mine storage areas, etc.—especially for projects requiring fast construction or high environmental standards.

Q:How much cost can Geocell reduce compared to traditional concrete foundations?
A: Costs can be reduced by 30%–60%, depending on project scale. The comprehensive cost advantage is more significant in projects with high earthwork volumes or complex terrain.

Q: How does Geocell perform in terms of UV resistance?
A: The HDPE material is added with UV-resistant additives, effectively preventing material aging caused by long-term sunlight. Its service life is not affected by outdoor lighting.

Q: Will Geocell deform in low or high temperatures?
A: HDPE has a temperature resistance range of -70°C to +110°C, maintaining structural stability in extreme temperatures. It is suitable for cold regions or high-temperature industrial scenarios.

Q: Are Geocells eco-friendly?
A:Recyclable: HDPE can be repurposed.

Vegetation-Compatible: Some designs allow root penetration.
