Channel Lining & Erosion Control Welded Geocell 75mm Height HDPE ESCR OIT

Large Image : Channel Lining & Erosion Control Welded Geocell 75mm Height HDPE ESCR OIT

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE And ISO9001-2015
Model Number:	GM75-330

Payment & Shipping Terms:

Minimum Order Quantity:	3500 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

Channel Lining & Erosion Control Welded Geocell 75mm Height HDPE ESCR OIT

Description

Material:	100% HDPE Plastic	Cell Thickness:	1.5mm
Standard:	ASTM; GB Standard	Cell Height:	100mm
Geocell Size:	GM100-330	Surface Tone:	Green; Yellow; Black
Welding Distance:	330mm	Surface Choose:	Smooth;Textured Surface
Cell Density:	0.950 G/cm3	Seam Peel Strength:	14.2 KN/m
ESCR:	4999hours

Channel Lining & Erosion Control Welded Geocell 75mm Height HDPE ESCR OIT

GEOMAX® GEOCELL PRODUCT INTRODUCTION

The GeoMax® HDPE Geocell is an engineered cellular confinement system designed to strengthen soil, evenly distribute loads, and prevent erosion on challenging terrain. Made from high-density polyethylene (HDPE), it offers excellent resistance to ultraviolet (UV) rays, chemicals, and environmental stress.

GeoMax® geocells are available in smooth or textured finishes and can be customized in height, wall thickness, and weld spacing to match diverse engineering needs. Each unit is produced using ISO- and CE-certified processes to ensure durability, precision, and consistent performance in demanding applications.

With over 20 years of experience and more than 100 patented innovations, GeoMax® supports customers around the world in road and railway construction, slope protection, mining infrastructure, and green engineering. They deliver proven, economical solutions for ground stabilization challenges.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

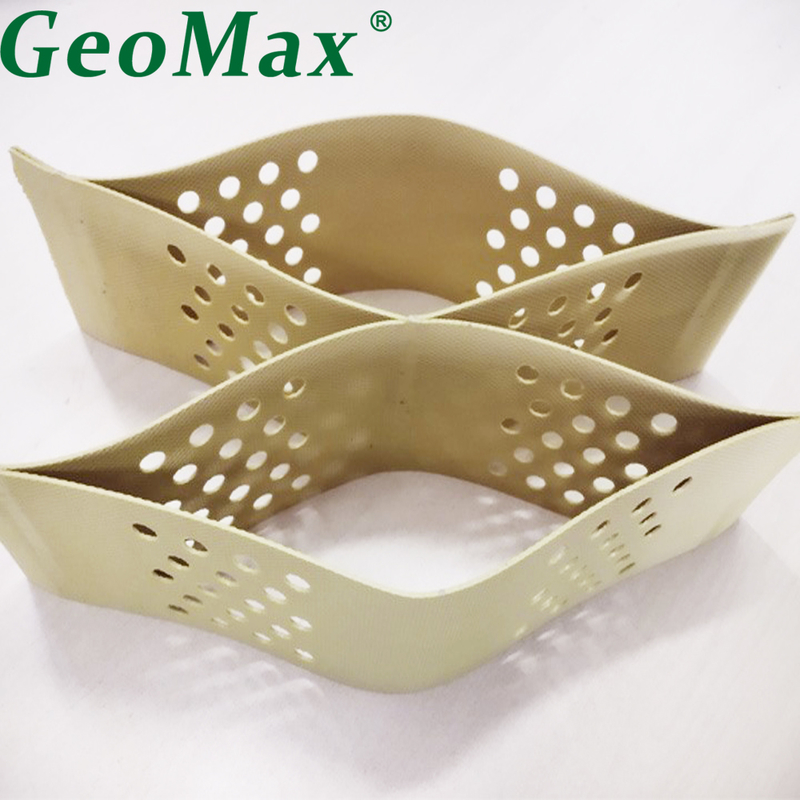

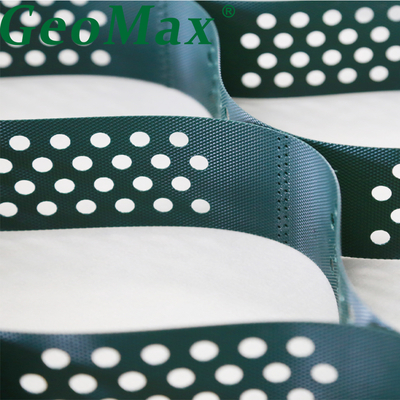

DETAILED PHOTOS

Channel Lining & Erosion Control Welded Geocell 75mm Height HDPE ESCR OIT 0

APPLICATIONS

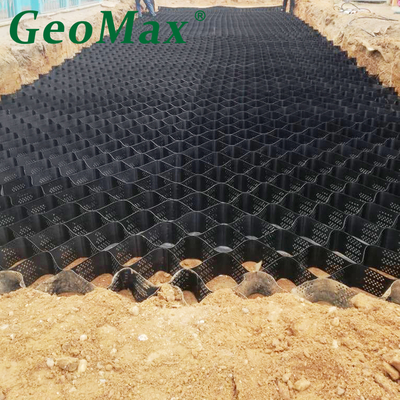

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

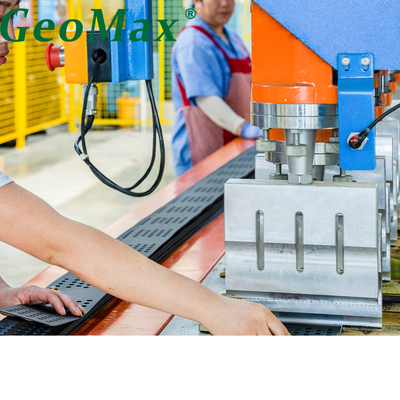

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

CERTIFICATES

FAQ:

Q: What is Geocell made from?
A: GeoMax® Geocells are made from high-density polyethylene (HDPE), offering excellent strength and durability. Ultrasonic welding ensures structural integrity, while perforations allow for natural drainage and soil stability.

Q: What if my project dimensions don’t match the Geocell panels?
A: No worries! We offer custom-designed Geocell grids tailored to your project’s specifications. The flexible design allows them to fit around obstacles such as drainage pipes, trees, and structures—something rigid materials like concrete or steel cannot accommodate.

Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.

Q: Where is GeoMax Geocell produced?
A: GeoMax Geocell is produced in Anhui, China.

Q: Do you offer customized sizes?
A: Yes, we manufacture Geocell panels in custom sizes to meet your specific project requirements.

Q: How does Geocell perform in terms of UV resistance?
A: The HDPE material is added with UV-resistant additives, effectively preventing material aging caused by long-term sunlight. Its service life is not affected by outdoor lighting.

Q: What standards do you follow?
A: We conduct extensive testing to meet ASTM and GB standards. We’re happy to share product specifications or provide a free commercial evaluation tailored to your project’s needs.
