Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green

Large Image : Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green

Product Details:

Place of Origin:	ANHUI,CHINA
Brand Name:	GeoMax
Certification:	CE And ISO9001-2015
Model Number:	GM75-660

Payment & Shipping Terms:

Minimum Order Quantity:	3500 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green

Description

Material:	High Density Polyethylene	Thickness:	1.2mm-1.5mm
Geocell Standard:	ASTM Standard Or GB Standard	Geocell Height:	75mm
Geocell Surface:	Perforated	Welded Distance:	356mm
Geocell Density:	0.950 G/cm3	Carbon Black:	1.5%
Peeling Strength:	10-14.2kN/m	Tensile Strength:	25kN/m
HDPE Geocell Our Minimum Quantity:	3300m2	Elongtation At Break:	6%-15%

Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green

PRODUCT INTRODUCTION

GeoMax® Geocells are high-performance, three-dimensional honeycomb structures made of
Reinforced high-density polyethylene (HDPE) sheets are ultrasonically welded together to form a strong mesh, making it incredibly durable and reliable. These geocells are remarkably versatile and cost-effective, positioning them as a leading solution for a wide range of geotechnical applications. Depending on the client's specifications, the containers can be filled with sand, soil, or locally-sourced materials.

GEOCELL SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

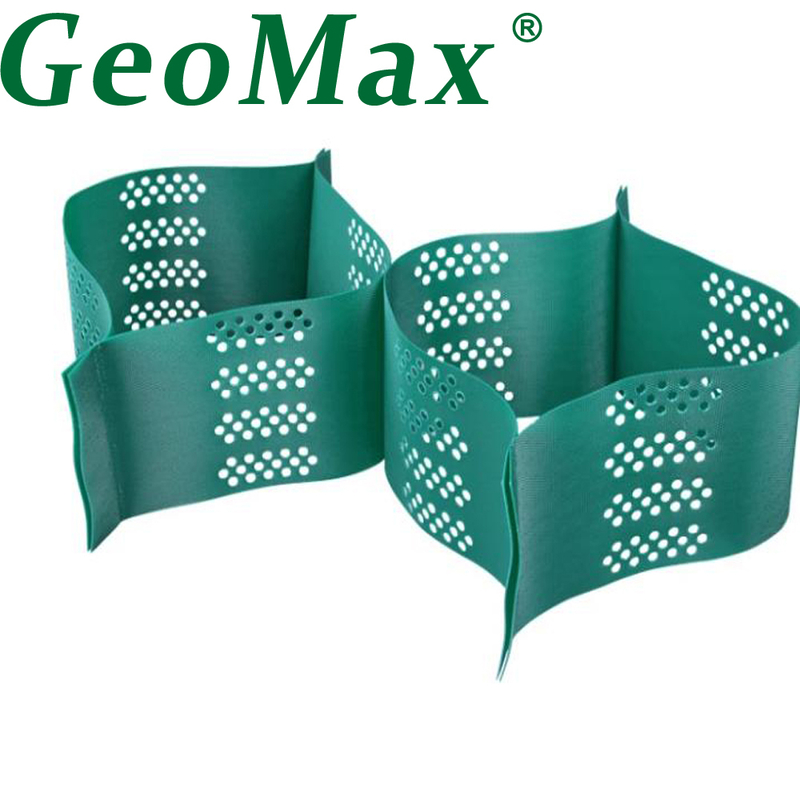

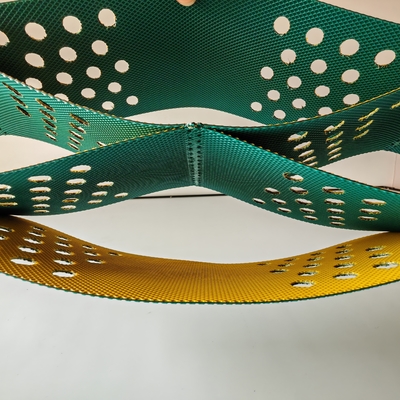

GEOMAX DETAILED PHOTOS

Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green 0

Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green 2

GEOCELL APPLICATIONS

SOIL REINFORCEMENT

Geomax® (HDPE Geocell) is the solution for soil stabilization or reinforcement. This solution enhances pavement durability, mitigates cracking, and ensures the longevity of the infrastructure.

SLOPE PROTECTION

Geomax® (HDPE Geocell) is the preferred solution for slope protection and erosion control. It boasts both effective drainage and slope protection.

CHANNEL PROTECTION

Geomax® (HDPE Geocell) is a reliable solution for ensuring the stability and protection of channels.
It is exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

The Geomax® (HDPE Geocell) product offers high permeability and serves as an effective solution for numerous planting pots, facilitating the absorption of rainwater while reducing runoff.

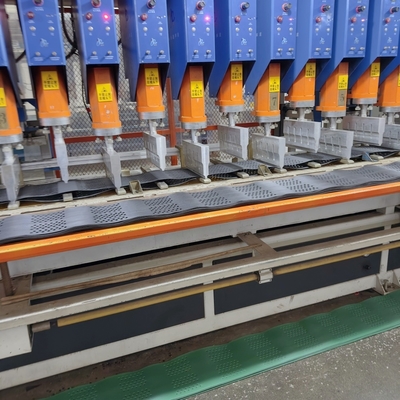

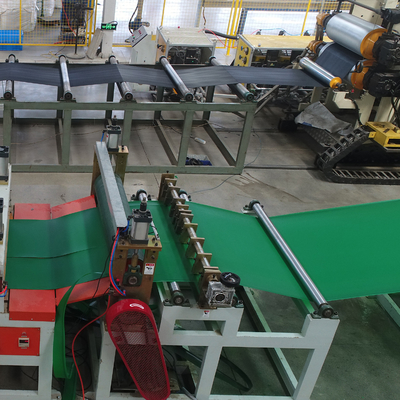

PRODUCTION LINE

GEOCELL INVENTION AND TESTING

GEOCELL PRODUCT AREA

GEOMAX CERTIFICATES

FAQ:

Q: Does the product have a warranty? How does after-sales service work during the warranty period?
A: A 10-year warranty is offered. For damage due to material defects within the warranty period, free replacement is provided. The after-sales team responds within 24 hours and provides solutions within 48 hours.

Q: Has Geocell passed third-party testing? What certifications does it have?
A: Products are tested by third parties (e.g., SGS, Intertek) and certified with CE, ISO9001, ISO14001, etc. Complete test reports and certification documents are available.

Q: How to prevent infill loss?
A:Top Layer Geotextile: Prevents washout.

Use Cohesive Soil-Crushed Stone Mix.

Q: In which specific projects is Geocell suitable?
A: Widely used in road subbases, parking lots, riverbank revetments, golf courses, airport runway foundations, mine storage areas, etc.—especially for projects requiring fast construction or high environmental standards.

Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.

Q: Do you offer customized sizes?
A: Yes, we manufacture Geocell panels in custom sizes to meet your specific project requirements.

Q: Will Geocell deform in low or high temperatures?
A: HDPE has a temperature resistance range of -70°C to +110°C, maintaining structural stability in extreme temperatures. It is suitable for cold regions or high-temperature industrial scenarios.

Q: Where can Geocells be used?
A:Roads/Railways: Load distribution over weak subgrades.

Slopes: Erosion control and vegetation support.

Temporary Access Roads: Rapid deployment on soft ground.

Retaining Walls: Cost-effective alternative to gabions.

Q: Are Geocells eco-friendly?
A:Recyclable: HDPE can be repurposed.

Vegetation-Compatible: Some designs allow root penetration.
