8-inch (200mm)Height Brown HDPE Geocell for Landfill Capping Final Cover Systems High Quality Control

Name: 8-inch (200mm)Height Brown HDPE Geocell for Landfill Capping Final Cover Systems High Quality Control
Brand: Anhui Hechuang New Synthetic Materials Co., Ltd
SKU: GM200-445
Price: 9.50 USD
Availability: InStock

All Products

HDPE Geocell
(294)

Slope Protection Geocell
(85)

Geocell For Road Construction
(85)

Erosion Control Geocell
(27)

Geocell Ground Grid
(6)

Geo Cell Grid
(7)

Geobin Compost Bin
(10)

HDPE Liner Sheet
(11)

Soil Reinforcement Geogrid
(20)

HDPE Geomembrane Sheet
(11)

Geotextile Fabric
(18)

Certification

Customer Reviews

HCNS team is trustworthy, I have a project that needs Geocells, they offer me the right Geocell type and send free samples to us, after checking their samples, we buy and do our project very perfectly. Once we have a project for Geocell in the future, we will definitely cooperate with you again.

—— Tony

I'm Online Chat Now

8-inch (200mm)Height Brown HDPE Geocell for Landfill Capping Final Cover Systems High Quality Control

Large Image : 8-inch (200mm)Height Brown HDPE Geocell for Landfill Capping Final Cover Systems High Quality Control

Product Details:

Place of Origin:	ANHUI Province CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM200-445

Payment & Shipping Terms:

Minimum Order Quantity:	3000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

8-inch (200mm)Height Brown HDPE Geocell for Landfill Capping Final Cover Systems High Quality Control

Description

Geocell Material:	100% Virgin High Density Polyethylene	Geocell Thickness:	1.2-1.5mm
HDPE Geocell Standard:	ASTM; GB Standard	HDPE Geocell Height:	200mm
Geocell Surface:	Textured&Non Perforated	Welded Distance:	445mm
HDPE Geocell Density:	0.950 G/cm3	HDPE Geocell Carbon Black:	1.5%
HDPE Peeling Strength:	12-14.2kN/m	Geocell Tensile Strength:	25kN/m
HDPE Geocell Our Minimum Quantity:	3000m2	ESCR:	4999hours
HPOIT:	400min
Highlight:	8-inch HDPE geocell for landfill , brown HDPE geocell cover system , 200mm geocell with high quality control

8-inch (200mm)Height Brown HDPE Geocell for Landfill Capping Final Cover Systems High Quality Control

HDPE GEOCELL PRODUCT INTRODUCTION

GeoMax® is a global leader in geotechnical engineering, with a proven track record of over 20 years in developing cell-based restraint systems. The company's got over 100 patents for its tech innovations, and it's all about ground stabilisation, erosion control and soil reinforcement.

The geocells are made to last, so you can be sure they're strong, flexible and will perform well for a long time. This makes them perfect for meeting the demands of modern infrastructure and environmental challenges. All our products are ISO- and CE-certified, made to really strict quality standards, and designed to be compatible and reliable all over the world.

GEOMAX SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

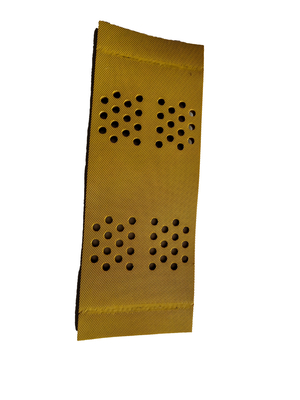

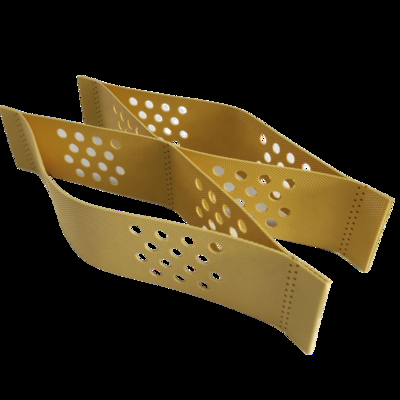

HDPE GEOCELL DETAILED PHOTOS

8-inch (200mm)Height Brown HDPE Geocell for Landfill Capping Final Cover Systems High Quality Control 0

8-inch (200mm)Height Brown HDPE Geocell for Landfill Capping Final Cover Systems High Quality Control 2

HDPE GEOCELL APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

GEOCELL PRODUCTION LINE

GEOMAX INVENTION AND TESTING

GEOMAX PRODUCT AREA

GEOMAX CERTIFICATES

PHOTO OF THE EXHIBITION

8-inch (200mm)Height Brown HDPE Geocell for Landfill Capping Final Cover Systems High Quality Control 12

FAQ:

1. Q: Can Geocell resist chemical corrosion?
A: High-quality Geocell materials like HDPE have good resistance to most common chemicals, such as acids, alkalis, and salts within a certain concentration range. This makes it suitable for applications in environments like coastal areas with salt spray or industrial sites with mild chemical exposure. However, it's advisable to consult manufacturers for specific strong chemical environments.
1. Q: How does the thickness of Geocell affect its performance?
A: Generally, a greater thickness (cell height) provides stronger lateral confinement and better load distribution capacity, making it more suitable for projects with higher load requirements. Thinner Geocell may be sufficient for light-load scenarios or where space is limited.
1. Q: What is the tensile strength of Geocell?
A: The tensile strength varies by material and manufacturing process. HDPE Geocell typically has a tensile strength ranging from 10MPa to 30MPa, which ensures it can withstand the forces generated during installation and use without breaking.
