250mm High-Strength HDPE Geocell for Cost-Effective Retaining Walls ESCR 4999hours HPOIT 400min in South Korea

Large Image : 250mm High-Strength HDPE Geocell for Cost-Effective Retaining Walls ESCR 4999hours HPOIT 400min in South Korea

Product Details:

Place of Origin:	ANHUI Province CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM200-660

Payment & Shipping Terms:

Minimum Order Quantity:	3000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

250mm High-Strength HDPE Geocell for Cost-Effective Retaining Walls ESCR 4999hours HPOIT 400min in South Korea

Description

Geocell Material:	100% Virgin High Density Polyethylene	Geocell Thickness:	1.65mm
HDPE Geocell Standard:	ASTM; GB Standard	HDPE Geocell Height:	250mm
Geocell Surface:	Textured&Non Perforated	Welded Distance:	660mm
HDPE Geocell Density:	0.950 G/cm3	HDPE Geocell Carbon Black:	1.5%
HDPE Peeling Strength:	12-14.2kN/m	Geocell Tensile Strength:	25kN/m
HDPE Geocell Our Minimum Quantity:	3000m2	ESCR:	4999hours
HPOIT:	400min
Highlight:	250mm HDPE geocell retaining wall , high-strength geocell ESCR 4999hours , cost-effective geocell HPOIT 400min

250mm High-Strength HDPE Geocell for Cost-Effective Retaining Walls ESCR 4999hours HPOIT 400min in South Korea

HDPE GEOCELL PRODUCT INTRODUCTION

GeoMax® is a global leader in geotechnical engineering. We have a proven track record of over 20 years in developing cell-based restraint systems. The company holds over 100 patents for its technological innovations. These are focused on ground stabilisation, erosion control and soil reinforcement.

Our geocells are guaranteed to last. They are strong and flexible and will perform well for a long time. This makes them perfect for meeting the demands of modern infrastructure and environmental challenges. All our products are ISO- and CE-certified, made to the strictest quality standards, and designed to be compatible and reliable worldwide.

GEOMAX SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

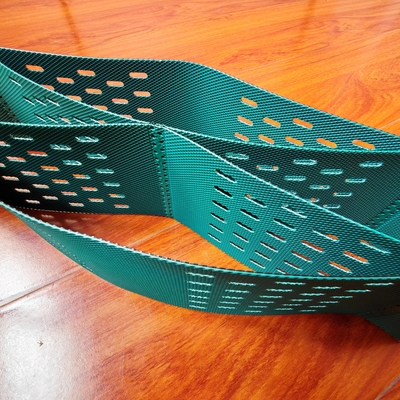

HDPE GEOCELL DETAILED PHOTOS

250mm High-Strength HDPE Geocell for Cost-Effective Retaining Walls ESCR 4999hours HPOIT 400min in South Korea 0

250mm High-Strength HDPE Geocell for Cost-Effective Retaining Walls ESCR 4999hours HPOIT 400min in South Korea 2

HDPE GEOCELL APPLICATIONS

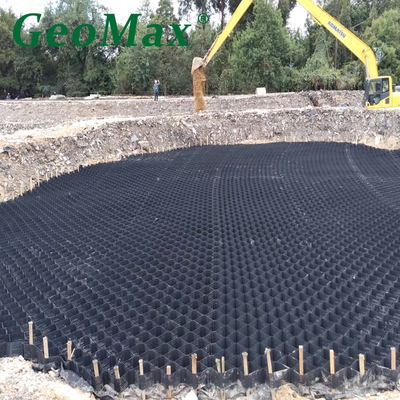

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

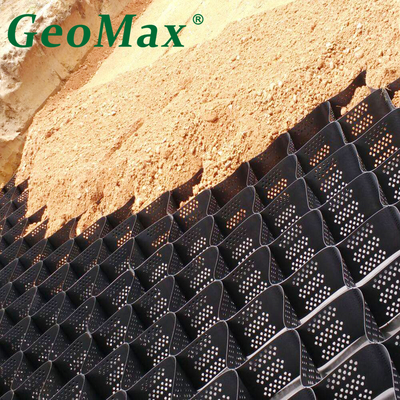

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

GEOCELL PRODUCTION LINE

GEOMAX INVENTION AND TESTING

GEOMAX PRODUCT AREA

GEOMAX CERTIFICATES

PHOTO OF THE EXHIBITION

250mm High-Strength HDPE Geocell for Cost-Effective Retaining Walls ESCR 4999hours HPOIT 400min in South Korea 12

FAQ:

Q: How to connect adjacent Geocell panels?

A: Connection methods include using connectors (such as clips or bolts), welding, or overlapping and stapling. The choice depends on the type of Geocell and project requirements, ensuring a secure connection to prevent separation.

Q: What is the minimum overlap length when connecting Geocell panels?

A: The minimum overlap length is usually 150mm to 300mm, but it may vary depending on the product specifications and engineering design. Following the manufacturer's guidelines is essential to ensure a reliable connection.

Q: How to fix Geocell to the ground?

A: Anchors or stakes made of materials like steel or plastic are used. They are driven through the Geocell into the ground at regular intervals, especially along the edges and corners, to prevent movement during filling and use.
