All-Weather Black 150mm HDPE Geocell for All-Season Erosion Control on Slopes Protection

Large Image : All-Weather Black 150mm HDPE Geocell for All-Season Erosion Control on Slopes Protection

Product Details:

Place of Origin:	ANHUI Province CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM150-356

Payment & Shipping Terms:

Minimum Order Quantity:	3000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

All-Weather Black 150mm HDPE Geocell for All-Season Erosion Control on Slopes Protection

Description

Geocell Material:	100% Virgin High Density Polyethylene	Geocell Thickness:	1.65mm
Geocell Standard:	ASTM; GB Standard	Geocell Height:	150mm
Geocell Surface:	Textured&Non Perforated	Welded Distance:	356mm
HDPE Geocell Density:	0.950 G/cm3	Carbon Black:	1.5%
Peeling Strength:	12-14.2kN/m	HDPE Geocell Our Minimum Quantity:	3000m2
Geocell ESCR:	4999hours	Geocell HPOIT:	400min
Highlight:	HDPE geocell erosion control , 150mm black geocell slope protection , all-weather HDPE geocell

All-Weather Black 150mm HDPE Geocell for All-Season Erosion Control on Slopes Protection

GEOMAX SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

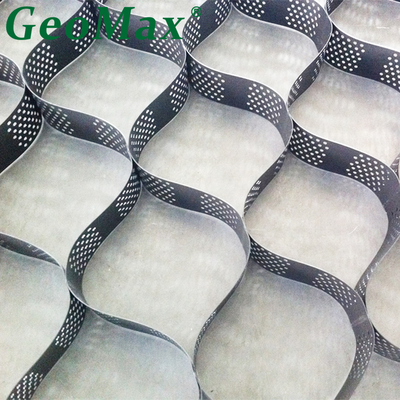

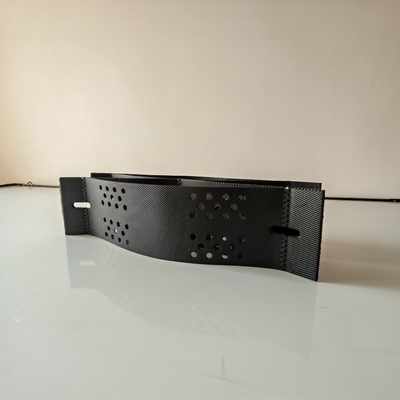

HDPE GEOCELL DETAILED PHOTOS

All-Weather Black 150mm HDPE Geocell for All-Season Erosion Control on Slopes Protection 0

All-Weather Black 150mm HDPE Geocell for All-Season Erosion Control on Slopes Protection 2

HDPE GEOCELL APPLICATIONS

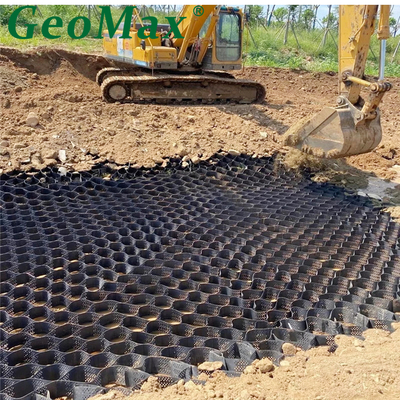

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

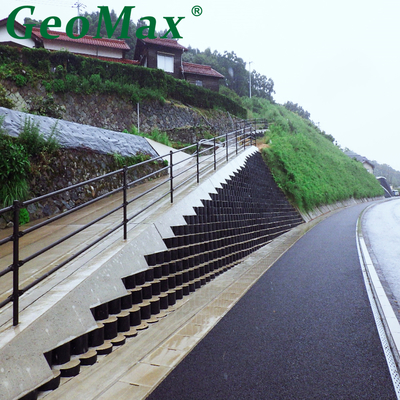

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

GEOCELL PRODUCTION LINE

GEOMAX INVENTION AND TESTING

GEOMAX PRODUCT AREA

GEOMAX CERTIFICATES

PHOTO OF THE EXHIBITION

All-Weather Black 150mm HDPE Geocell for All-Season Erosion Control on Slopes Protection 12

FAQ:

1. Q: Can Geocell be installed in cold climates with frozen ground?
A: Installation on frozen ground is not recommended, as thawing can cause ground settlement. It's better to wait until the ground thaws and stabilizes, or take measures to thaw the ground before installation.
1. Q: What is the compaction requirement for filling materials in Geocell?
A: The filling materials should be compacted to a certain density, usually 90% - 95% of the maximum dry density, to ensure good interaction with the Geocell and provide sufficient strength. The compaction method depends on the type of filling material.
1. Q: How to ensure the flatness of the Geocell surface after filling?
A: During filling, the materials should be spread evenly, and compaction should be done in layers. After filling, the surface can be leveled with a rake or other tools to meet the required flatness for subsequent construction.
1. Q: Can Geocell be cut to fit irregular project shapes?
A: Yes, Geocell can be cut using tools like knives or scissors to fit irregular shapes. Care should be taken to ensure clean cuts and proper connection of the cut edges to adjacent panels.
