75mm HDPE Geocell for Parking Lot Ground Stabilization and Load Support

Large Image : 75mm HDPE Geocell for Parking Lot Ground Stabilization and Load Support

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM75-445

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

75mm HDPE Geocell for Parking Lot Ground Stabilization and Load Support

Description

Material:	100% HDPE Plastic	Thickness:	1.2-1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard；	Peel Strength:	14.2 KN/m
Height:	75mm	Color:	Black;Yellow;Green
Welding Distance:	445mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM
Highlight:	75mm HDPE Geocell for parking lots , HDPE Geocell ground stabilization , geocell load support for stabilization

75mm HDPE Geocell for Parking Lot Ground Stabilization and Load Support

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell delivers advanced soil stabilization and load support for demanding construction environments. Made from durable high-density polyethylene (HDPE), its three-dimensional honeycomb structure confines and strengthens the soil, reducing erosion and improving ground performance.

Engineered for longevity, GeoMax® Geocell withstands UV exposure, chemicals, and extreme weather, ensuring reliable performance even in harsh conditions. It offers an eco-friendly and cost-effective solution for infrastructure applications such as roads, railways, slopes, retaining walls, and landfills — helping engineers build stronger, greener, and longer-lasting foundations.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

DETAILED PHOTOS

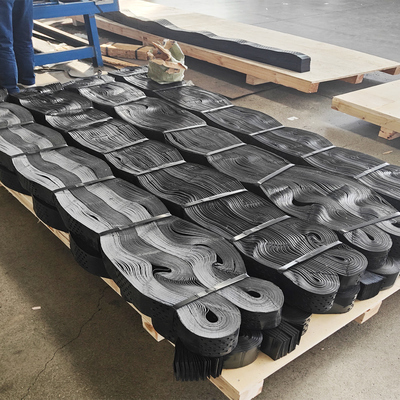

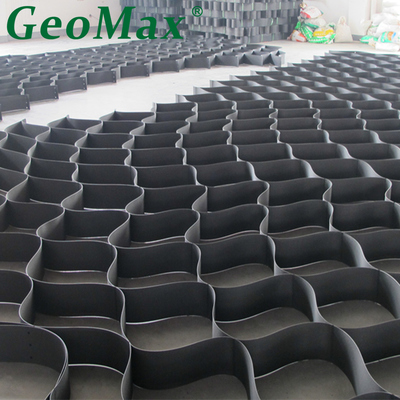

75mm HDPE Geocell for Parking Lot Ground Stabilization and Load Support 0

75mm HDPE Geocell for Parking Lot Ground Stabilization and Load Support 2

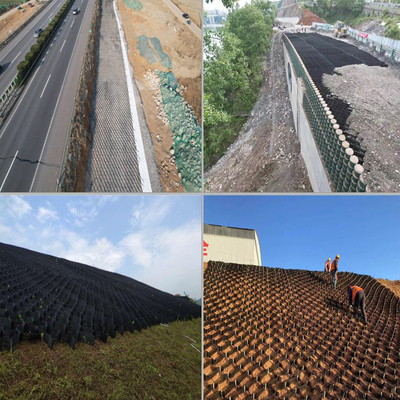

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

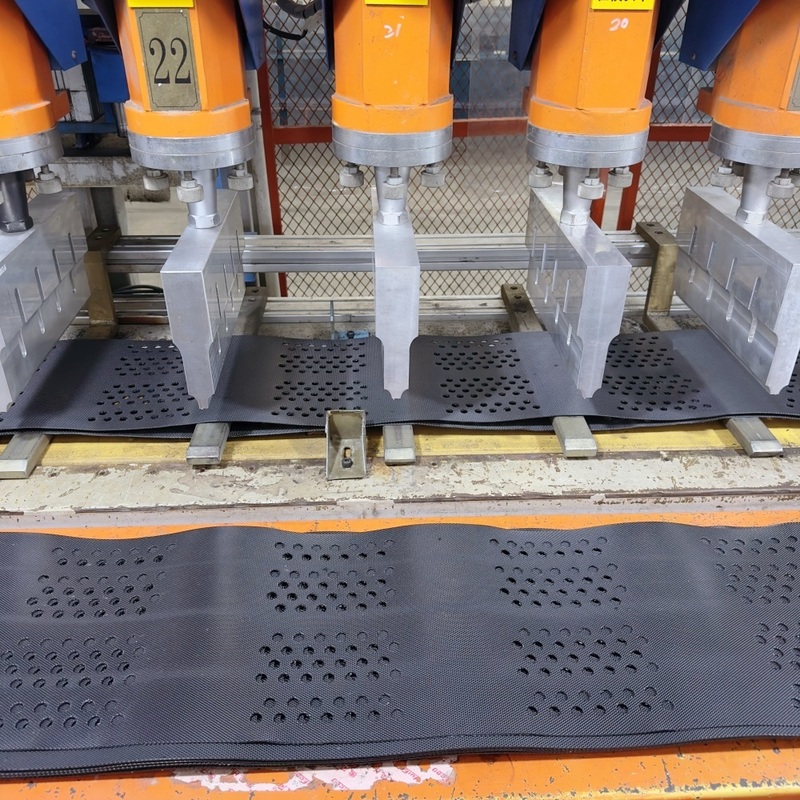

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

What types of infill materials are not recommended?
We discourage:

Highly organic soils
Materials with sharp, angular particles exceeding cell size
Chemically aggressive industrial wastes
Poorly graded uniform materials
Highly expansive clays

32. How do you ensure compatibility with geosynthetic clay liners (GCLs)?
Compatibility measures include:

Interface friction testing
Protection layers where needed
Careful placement procedures
Moisture control during installation
Specific design details for composite systems

Testing & Quality Assurance

33. What accelerated aging tests do you perform?
Our aging tests include:

UV exposure per ASTM D4355
Oxidative induction time testing
High-temperature aging studies
Chemical resistance testing
Stress crack resistance evaluation
