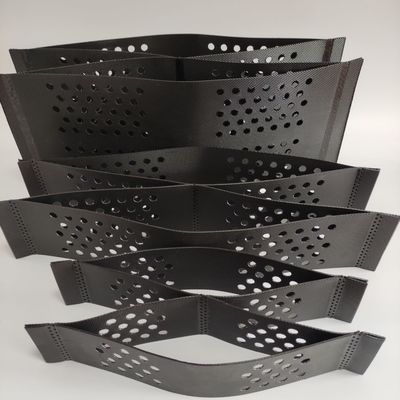

Honeycomb Erosion Control Geocell Grid Gravel Stabilizer Grid For Patio 50mm

Honeycomb Erosion Control Geocell Grid Gravel Stabilizer Grid For Patio 50mm
Honeycomb Erosion Control Geocell Grid Gravel Stabilizer Grid For Patio 50mm Honeycomb Erosion Control Geocell Grid Gravel Stabilizer Grid For Patio 50mm

Large Image :  Honeycomb Erosion Control Geocell Grid Gravel Stabilizer Grid For Patio 50mm

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 50-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Honeycomb Erosion Control Geocell Grid Gravel Stabilizer Grid For Patio 50mm

Description
Material: HDPE Type: 50-445
Color: Black Welding Space: 445mm

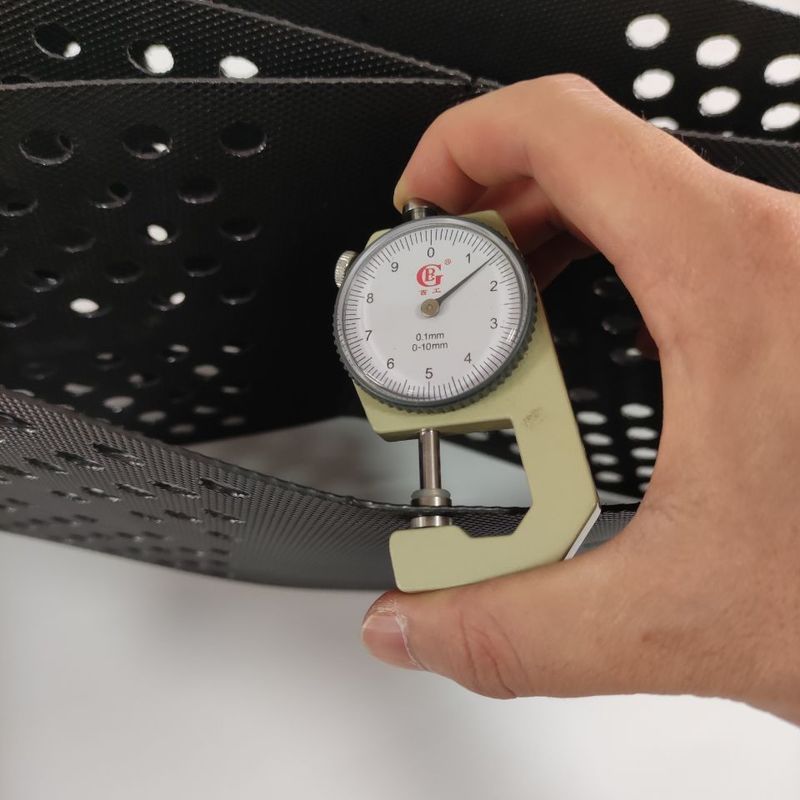

Thickness: 1.5mm Height: 50
Surface: Textured Standard: ASTM
High Light:

Patio Erosion Control Geocell

,

50mm Erosion Control Geocell

,

50mm gravel stabilizer grid for patio



PRODUCT DESCRIPTION



ASTM Standard HDPE Geocell 50mm Height Geo Cell Road Grid Honeycomb Gravel Driveway



Product Introduction



Plastic geocell cellular confinement system is three dimensional , honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique . It is flexible to fold during the transport and installation on construction site .The geocell nets will be filled with soils , granular, cements or other on-site infill materials when stretched into web structures , which has powerful and rigid confinement in the lateral and vertical sides



Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









Application



Honeycomb Erosion Control Geocell Grid Gravel Stabilizer Grid For Patio 50mm 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Honeycomb Erosion Control Geocell Grid Gravel Stabilizer Grid For Patio 50mm 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Honeycomb Erosion Control Geocell Grid Gravel Stabilizer Grid For Patio 50mm 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Honeycomb Erosion Control Geocell Grid Gravel Stabilizer Grid For Patio 50mm 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

                                                                                                      HCNS Manufacture

Honeycomb Erosion Control Geocell Grid Gravel Stabilizer Grid For Patio 50mm 4

Exhibition                                                                   Honeycomb Erosion Control Geocell Grid Gravel Stabilizer Grid For Patio 50mm 5

Our Certificates and HDPE Geocell Testing reports

Honeycomb Erosion Control Geocell Grid Gravel Stabilizer Grid For Patio 50mm 6
