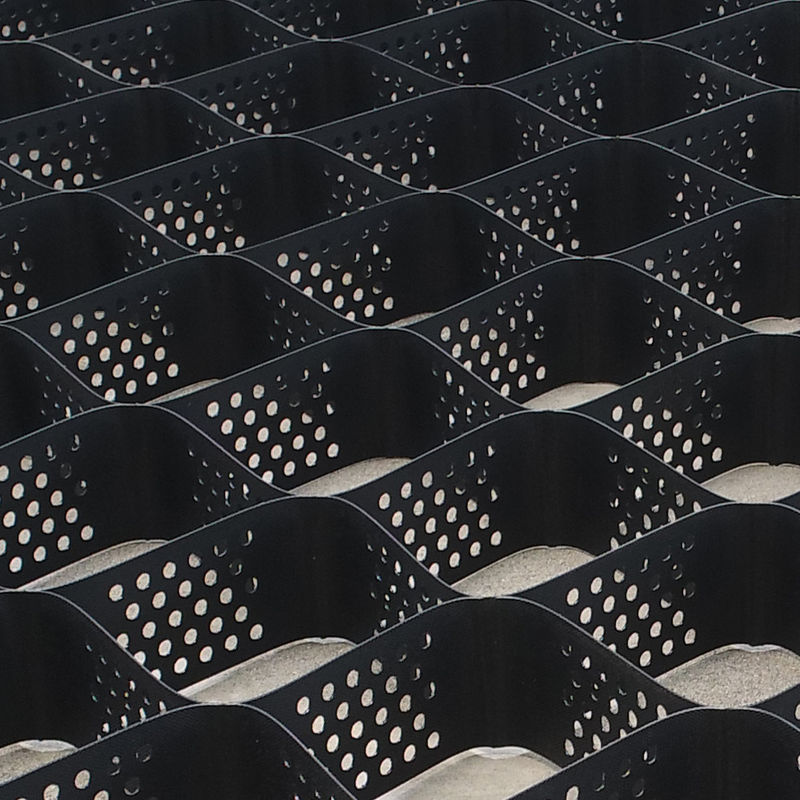

ASTM Standard 445mm HDPE Yellow Black Textured Geocell Manufacturer Road Construction

ASTM Standard 445mm HDPE Yellow Black Textured Geocell Manufacturer Road Construction
ASTM Standard 445mm HDPE Yellow Black Textured Geocell Manufacturer Road Construction ASTM Standard 445mm HDPE Yellow Black Textured Geocell Manufacturer Road Construction ASTM Standard 445mm HDPE Yellow Black Textured Geocell Manufacturer Road Construction

Large Image :  ASTM Standard 445mm HDPE Yellow Black Textured Geocell Manufacturer Road Construction

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.27-100-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

ASTM Standard 445mm HDPE Yellow Black Textured Geocell Manufacturer Road Construction

Description
Geocell Material: High Density Polyethylene Standard: ASTM Or GB/T
Height: 100 Model: 100-445
Hdpe Geocell Color: Black Or Customized Welding Space: 445mm
Geocell Thickness: 1.27mm Surface: Perforated

ASTM Standard 445mm HDPE Yellow Black Textured Geocell Manufacturer Road Construction





Product Introduction

Hdpe Geocells are three-dimensional synthetic materials mostly made of polymer strips placed in a honeycomb shape. The Hdpe geocell forms an interlocking system in the honeycomb creating an interlocking system to secure sand, rocks, and other materials to stop erosion while offering load support. Hdpe Geocells were originally designed for military roads but are now used for a large range of traffic and foot activities such as pathways, trails, landscaping architecture, green roofing, golf courses, and walkways. Hdpe geocell is also used in construction as well as many other applications .

Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









APPLICATION

ASTM Standard 445mm HDPE Yellow Black Textured Geocell Manufacturer Road Construction 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



ASTM Standard 445mm HDPE Yellow Black Textured Geocell Manufacturer Road Construction 1

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





ASTM Standard 445mm HDPE Yellow Black Textured Geocell Manufacturer Road Construction 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





ASTM Standard 445mm HDPE Yellow Black Textured Geocell Manufacturer Road Construction 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

ASTM Standard 445mm HDPE Yellow Black Textured Geocell Manufacturer Road Construction 4



INVENTION AND TESTING

ASTM Standard 445mm HDPE Yellow Black Textured Geocell Manufacturer Road Construction 5



PRODUCT AREA

ASTM Standard 445mm HDPE Yellow Black Textured Geocell Manufacturer Road Construction 6



CERTIFICATES

ASTM Standard 445mm HDPE Yellow Black Textured Geocell Manufacturer Road Construction 7
