Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection

Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection
Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection
Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection

Large Image :  Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-100-712
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection

Description
Raw Material: HDPE Plastic Geocell Standard: ASTM
Cell Height: 50mm-300mm Geocell Model: GM712
Geocell Color: Black, Green, Brown, Black Yellow White Green, Green Or As Per Request Welding Space: 712mm
Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated&smooth
Highlight:

1420n HDPE Geocell

,

Slop Protection HDPE Geocell

,

Black Textured HDPE Geocell

Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection





Product Introduction

The use of hdpe geocells allows materials to be collected on site or nearby, and materials that are not normally available can also be used, which can significantly reduce material purchase and transportation costs. Since the hdpe geocell chamber is mostly filled with non-adhesive materials such as crushed stone and gravel, and the hdpe geocell reinforcement layer is also a horizontal drainage channel, it can speed up the dissipation of pore water pressure during the consolidation of saturated soil and accelerate soil consolidation. In short, hdpe geocells have the comprehensive effects of adjusting cushion layers, reinforcement, drainage, stress and deformation, and improving the anti-seepage capacity of soil.



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









APPLICATION

Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection 0

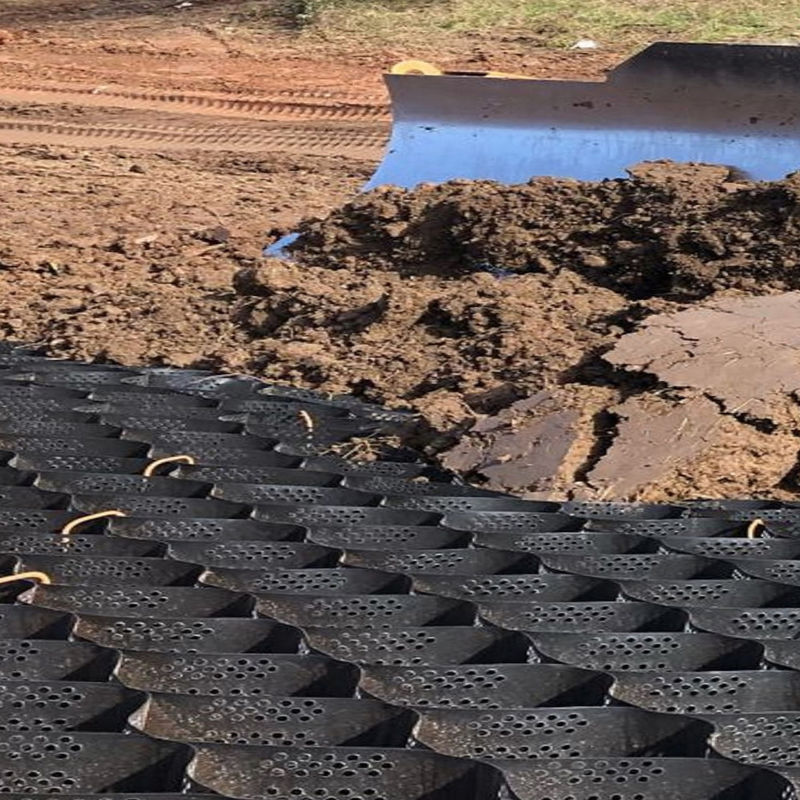

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection 1

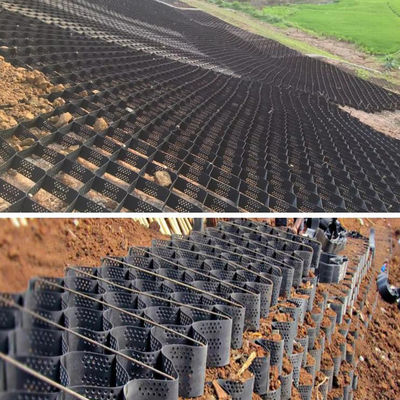

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection 2

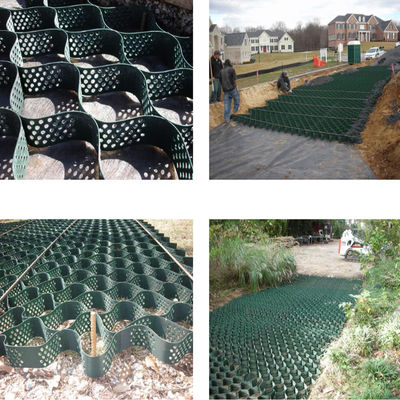

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection 4



INVENTION AND TESTING

Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection 5



PRODUCT AREA

Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection 6



CERTIFICATES

Black Textured Perforated Soil Stabilizer HDPE Geocell 1420n For Slop Protection 7
