Green Retaining Wall For HDPE Geocell 150mm Height 445 Welded Space With 400min OIT 4999Hours ESCR

Name: Green Retaining Wall For HDPE Geocell 150mm Height 445 Welded Space With 400min OIT 4999Hours ESCR
Brand: Anhui Hechuang New Synthetic Materials Co., Ltd
SKU: GM150-445
Price: 9.50 USD
Availability: InStock

All Products

HDPE Geocell
(280)

Slope Protection Geocell
(81)

Geocell For Road Construction
(85)

Erosion Control Geocell
(27)

Geocell Ground Grid
(6)

Geo Cell Grid
(7)

Geobin Compost Bin
(10)

HDPE Liner Sheet
(11)

Soil Reinforcement Geogrid
(20)

HDPE Geomembrane Sheet
(11)

Geotextile Fabric
(18)

Customer Reviews

HCNS team is trustworthy, I have a project that needs Geocells, they offer me the right Geocell type and send free samples to us, after checking their samples, we buy and do our project very perfectly. Once we have a project for Geocell in the future, we will definitely cooperate with you again.

—— Tony

I'm Online Chat Now

Green Retaining Wall For HDPE Geocell 150mm Height 445 Welded Space With 400min OIT 4999Hours ESCR

Large Image : Green Retaining Wall For HDPE Geocell 150mm Height 445 Welded Space With 400min OIT 4999Hours ESCR

Product Details:

Place of Origin:	ANHUI,CHINA
Brand Name:	GeoMax
Certification:	ISO9001-2015;CE
Model Number:	GM150-445

Payment & Shipping Terms:

Minimum Order Quantity:	3600 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

Green Retaining Wall For HDPE Geocell 150mm Height 445 Welded Space With 400min OIT 4999Hours ESCR

Description

Geocell Material:	High Density Polyethylene	Thickness Geocell:	1.2mm-1.5mm
HDPE Geocell Standard:	GB Standard	HDPE Geocell Height:	150mm
Geocell Surface:	Textured	Welded Distance:	445mm
HDPE Geocell Density:	0.950 G/cm3	Geocell Carbon Black:	1.5%
HDPE Geocell Peeling Strength:	10-14.2kN/m	Geocell Tensile Strength:	25kN/m
HDPE Geocell Our Minimum Quantity:	3600m2	Environmental Stress Crack Resistance:	4999 Hours
Oxidation Induction Time:	150	Elongation At Break:	≤15%

Green Retaining Wall For HDPE Geocell 150mm Height 445 Welded Space With 400min OIT 4999Hours ESCR

PRODUCT INTRODUCTION

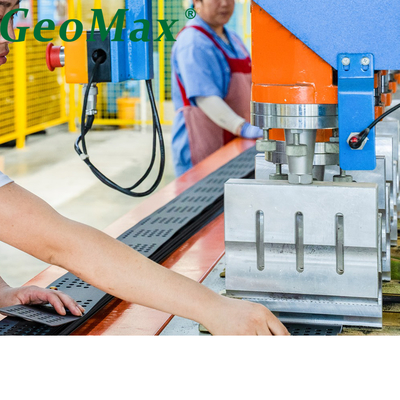

GeoMax® Geocells are strong, 3D honeycomb structures made of high-density polyethylene (HDPE) sheets that are welded together using ultrasound.

You can fill these honeycombs with sand, soil, or whatever other materials you have on hand. That makes them a really useful and affordable solution for a lot of geotechnical projects.

Whether you're dealing with driveways, highways, railroads, landscaping, landfills, parking lots, or pipelines, this innovative system is an excellent choice. The system is great because it saves a lot of time and labor by reducing project costs, minimizing environmental impact, and making installation a breeze.

GEOCELL SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

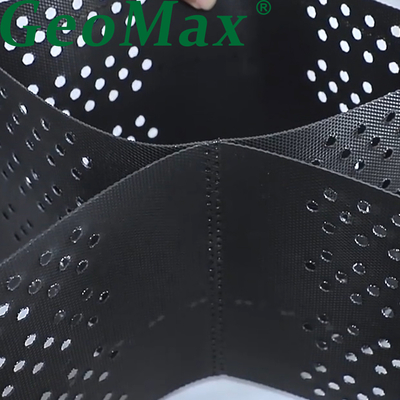

GEOMAX DETAILED PHOTOS

Green Retaining Wall For HDPE Geocell 150mm Height 445 Welded Space With 400min OIT 4999Hours ESCR 0

Green Retaining Wall For HDPE Geocell 150mm Height 445 Welded Space With 400min OIT 4999Hours ESCR 2

GEOCELL APPLICATIONS

SOIL REINFORCEMENT

Geomax® (Hdpe Geocell) is a possible solution to soil stabilization or soil reinforcement. It has the potential to enhance the load-bearing capacity of the pavement, thereby helping to prevent cracking.

SLOPE PROTECTION

Geomax® (Hdpe Geocell) is an excellent option for slope protection or erosion control. It has been observed to have both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax® (Hdpe Geocell) has been found to offer stability and protection for channels that are exposed to erosive conditions ranging from low to high flows, whether intermittent or continuous.

RETAINING WALLS

Geomax® (HDPE Geocell) has been found to offer highly permeable properties and act as a great number of planting pots, allowing rainwater to infiltrate and minimizing runoff.

GEOCELL PRODUCT AREA

GEOMAX CERTIFICATES

PHOTO OF THE EXHIBITION

Green Retaining Wall For HDPE Geocell 150mm Height 445 Welded Space With 400min OIT 4999Hours ESCR 10

FAQ:

Q: Does the product have a warranty? How does after-sales service work during the warranty period?
A: A 10-year warranty is offered. For damage due to material defects within the warranty period, free replacement is provided. The after-sales team responds within 24 hours and provides solutions within 48 hours.

Q: Has Geocell passed third-party testing? What certifications does it have?
A: Products are tested by third parties (e.g., SGS, Intertek) and certified with CE, ISO9001, ISO14001, etc. Complete test reports and certification documents are available

Q: In which specific projects is Geocell suitable?
A: Widely used in road subbases, parking lots, riverbank revetments, golf courses, airport runway foundations, mine storage areas, etc.—especially for projects requiring fast construction or high environmental standards.

Q: What are the advantages of Geocell's honeycomb structure design?
A: The honeycomb structure distributes load pressure, reducing material usage by over 50% compared to traditional materials (e.g., concrete). It also enhances foundation stability and deformation resistance, making it ideal for soft soil reinforcement.

Q: Will Geocell deform in low or high temperatures?
A: HDPE has a temperature resistance range of -70°C to +110°C, maintaining structural stability in extreme temperatures. It is suitable for cold regions or high-temperature industrial scenarios.

Q: Where can Geocells be used?
A:Roads/Railways: Load distribution over weak subgrades.

Slopes: Erosion control and vegetation support.

Temporary Access Roads: Rapid deployment on soft ground.

Retaining Walls: Cost-effective alternative to gabions.

Q: Are Geocells eco-friendly?
A:Recyclable: HDPE can be repurposed.

Vegetation-Compatible: Some designs allow root penetration.
