Perforated Drainage Geocell Welded HDPE 100mm Height for Landscaping & Erosion Control Green

Large Image : Perforated Drainage Geocell Welded HDPE 100mm Height for Landscaping & Erosion Control Green

Product Details:

Place of Origin:	ANHUI,CHINA
Brand Name:	GeoMax
Certification:	ISO9001-2015
Model Number:	GM 100-330

Payment & Shipping Terms:

Minimum Order Quantity:	3600 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

Perforated Drainage Geocell Welded HDPE 100mm Height for Landscaping & Erosion Control Green

Description

Material:	High Density Polyethylene	Thickness About Geocell:	1.2mm-1.5mm
Geocell Standard:	ASTM Or GB Standard	Height:	100mm
Geocell Surface:	Textured& Perforated	Welded Distance:	445mm
Density:	0.950 G/cm3	Carbon Black:	1.5%
HDPE Geocell Peeling Strength:	10-14.2kN/m	HDPE Geocell Tensile Strength:	25kN/m
HDPE Geocell Our Minimum Quantity:	3600m2	Colors:	Black, Green

Perforated Drainage Geocell Welded HDPE 100mm Height for Landscaping & Erosion Control Green

PRODUCT INTRODUCTION

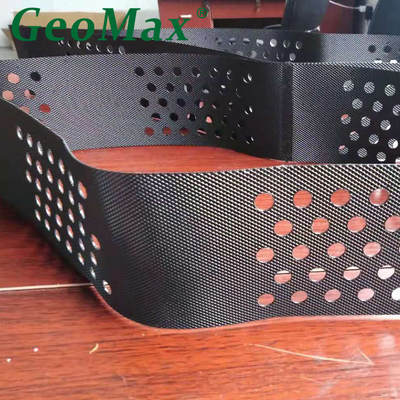

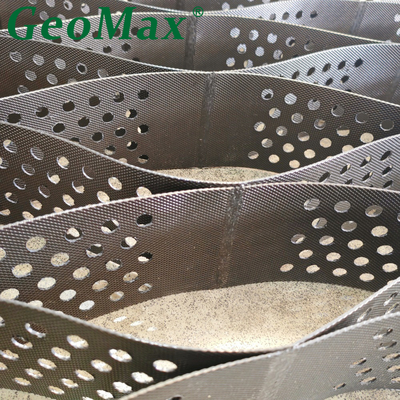

GeoMax® Geocells are high-performance, three-dimensional honeycomb structures made of reinforced high-density polyethylene (HDPE) sheets ultrasonically welded to form a strong mesh.

These cells are incredibly versatile and cost-effective, making them a fantastic solution for a wide range of geotechnical applications. You can fill them with sand, soil, or local materials, depending on your needs.

This innovative system is an incredible value! It's the perfect solution for a variety of infrastructure applications, including driveways, highways, railroads, landscaping, landfills, parking lots, and pipelines. The system offers incredible time and labor savings by reducing overall project costs, minimizing environmental impact, and simplifying installation.

GEOCELL SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

GEOCELL APPLICATIONS

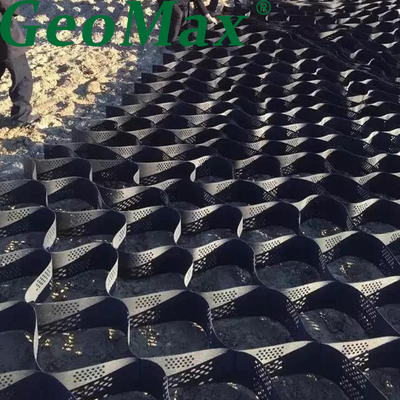

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

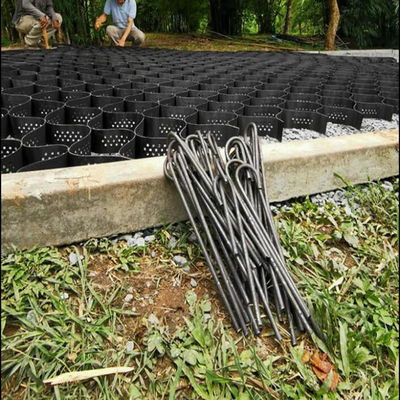

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

GEOCELL INVENTION AND TESTING

GEOCELL PRODUCT AREA

FAQ:

Q: Does the product have a warranty? How does after-sales service work during the warranty period?
A: A 10-year warranty is offered. For damage due to material defects within the warranty period, free replacement is provided. The after-sales team responds within 24 hours and provides solutions within 48 hours.

Q: How to prevent infill loss?
A:Top Layer Geotextile: Prevents washout.

Use Cohesive Soil-Crushed Stone Mix.

Q: What are the advantages of Geocell's honeycomb structure design?
A: The honeycomb structure distributes load pressure, reducing material usage by over 50% compared to traditional materials (e.g., concrete). It also enhances foundation stability and deformation resistance, making it ideal for soft soil reinforcement.

Q: How does Geocell perform in terms of UV resistance?
A: The HDPE material is added with UV-resistant additives, effectively preventing material aging caused by long-term sunlight. Its service life is not affected by outdoor lighting.

Q: Will Geocell deform in low or high temperatures?
A: HDPE has a temperature resistance range of -70°C to +110°C, maintaining structural stability in extreme temperatures. It is suitable for cold regions or high-temperature industrial scenarios.

Q: Will Geocell deform in low or high temperatures?
A: HDPE has a temperature resistance range of -70°C to +110°C, maintaining structural stability in extreme temperatures. It is suitable for cold regions or high-temperature industrial scenarios.

Q: Where can Geocells be used?
A:Roads/Railways: Load distribution over weak subgrades.

Slopes: Erosion control and vegetation support.

Temporary Access Roads: Rapid deployment on soft ground.

Retaining Walls: Cost-effective alternative to gabions.

Q: Are Geocells eco-friendly?
A:Recyclable: HDPE can be repurposed.

Vegetation-Compatible: Some designs allow root penetration.
