Foundation Support System Welded Geocell 100mm Height HDPE Black ESCR OIT

Large Image : Foundation Support System Welded Geocell 100mm Height HDPE Black ESCR OIT

Product Details:

Place of Origin:	ANHUI,CHINA
Brand Name:	GeoMax
Certification:	ISO9001-2015;CE
Model Number:	GM 100-445

Payment & Shipping Terms:

Minimum Order Quantity:	3600 ㎡
Price:	Negotiation

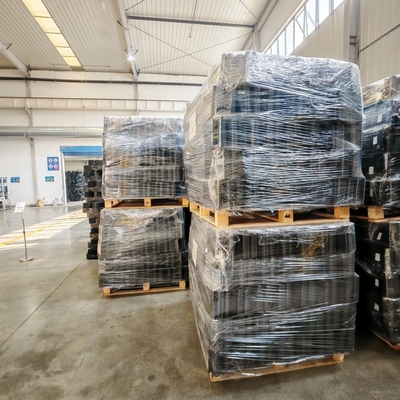

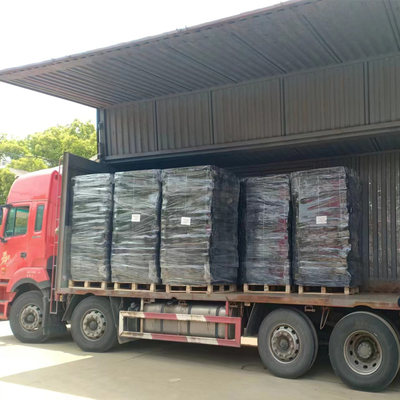

Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T,L/C
Supply Ability:	40000㎡ per day

Contact Now

Foundation Support System Welded Geocell 100mm Height HDPE Black ESCR OIT

Description

Geocell Material:	High Density Polyethylene	Thickness About Geocell:	1.2mm-1.5mm
Quality Standard:	ASTM Or GB Standard	Geocell Height:	100mm
Geocell Surface:	Textured& Perforated	Welded Distance:	445mm
HDPE Geocell Density:	0.950 G/cm3	Geocell Carbon Black:	1.5%
HDPE Geocell Peeling Strength:	10-14.2kN/m	HDPE Geocell Tensile Strength:	25kN/m
HDPE Geocell Our Minimum Quantity:	3600m2	Environmental Stress Crack Resistance:	4900 Hours
Oxidation Induction Time:	150min

Retaining Wall Solution HDPE Material Geocell 100mm Height 445mm Welded ESCR OIT Green

PRODUCT INTRODUCTION

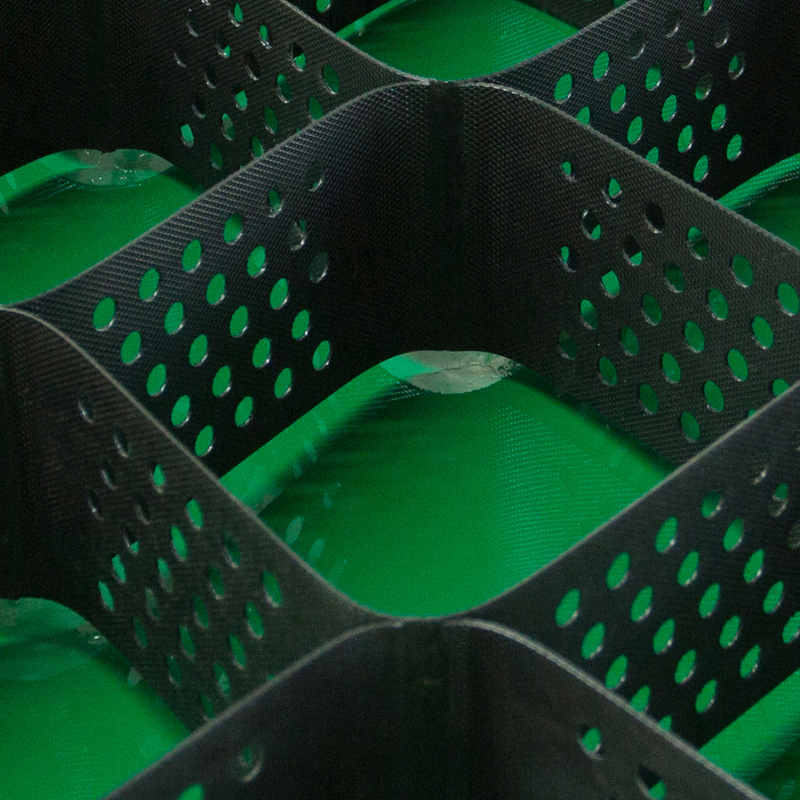

GeoMax® Geocells are strong, three-dimensional honeycomb structures composed of high-density polyethylene (HDPE) sheets that are welded together using ultrasound.

These honeycombs can be filled with sand, soil, or other materials from the local environment. This renders them a practical and economical solution for a variety of geotechnical projects.

This innovative system provides a high return on investment in a variety of applications, including driveways, highways, railroads, landscaping, landfills, parking lots, and pipelines. The system has been shown to reduce project costs, environmental impact, and installation time, thereby saving both time and labor.

GEOCELL SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

GEOCELL APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax® (HDPE Geocell) has been demonstrated to provide stability and protection for channels.
The subject was exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax® (HDPE Geocell) has been proven effective as an impermeable material, with an exceptional capacity for use as a medium for a vast array of planting pots. It functions by facilitating the percolation of rainwater, thereby reducing the volume of runoff produced by rainfall.

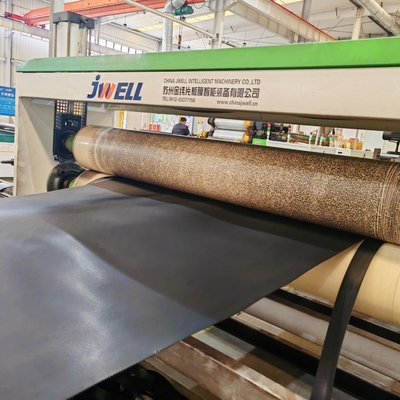

PRODUCTION LINE

GEOCELL INVENTION AND TESTING

GEOMAX CERTIFICATES

PHOTO OF THE EXHIBITION

Foundation Support System Welded Geocell 100mm Height HDPE Black ESCR OIT 7

FAQ:

Q: Does the product have a warranty? How does after-sales service work during the warranty period?
A: A 10-year warranty is offered. For damage due to material defects within the warranty period, free replacement is provided. The after-sales team responds within 24 hours and provides solutions within 48 hours.

Q: Has Geocell passed third-party testing? What certifications does it have?
A: Products are tested by third parties (e.g., SGS, Intertek) and certified with CE, ISO9001, ISO14001, etc. Complete test reports and certification documents are available

Q: In which specific projects is Geocell suitable?
A: Widely used in road subbases, parking lots, riverbank revetments, golf courses, airport runway foundations, mine storage areas, etc.—especially for projects requiring fast construction or high environmental standards.

Q: What are the advantages of Geocell's honeycomb structure design?
A: The honeycomb structure distributes load pressure, reducing material usage by over 50% compared to traditional materials (e.g., concrete). It also enhances foundation stability and deformation resistance, making it ideal for soft soil reinforcement.

Q: How does Geocell perform in terms of UV resistance?
A: The HDPE material is added with UV-resistant additives, effectively preventing material aging caused by long-term sunlight. Its service life is not affected by outdoor lighting

Q: Why choose Geocell over geogrids or other geosynthetics?
A: Geocell’s 3D honeycomb structure provides stronger lateral confinement, enhancing bearing capacity by 40% more than 2D geogrids in soft soil reinforcement, with faster construction efficiency.

Q: Are Geocells eco-friendly?
A:Recyclable: HDPE can be repurposed.

Vegetation-Compatible: Some designs allow root penetration.
