100mm Height 1.5mm Thickness HDPE Geocell Highway Construction ASTM D6993 ISO13426 Standard High Quality Control

Large Image : 100mm Height 1.5mm Thickness HDPE Geocell Highway Construction ASTM D6993 ISO13426 Standard High Quality Control

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM100-356

Payment & Shipping Terms:

Minimum Order Quantity:	3000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

100mm Height 1.5mm Thickness HDPE Geocell Highway Construction ASTM D6993 ISO13426 Standard High Quality Control

Description

Geocell Material:	100% HDPE Plastic	Cell Thickness:	1.65mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Quality Standard:	ASTM; GB Standard	Seam Peel Strength:	14.2 KN/m
Height:	100mm	Color:	Black
Welding Distance:	356mm	Density:	0.950 G/cm3
HPOIT:	400Min	ESCR:	5000 Hours

100mm Height 1.5mm Thickness HDPE Geocell Highway Construction ASTM D6993 ISO13426 Standard High Quality Control

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is a high-performance, three-dimensional cellular structure made of

Our high-density polyethylene (HDPE) sheets are ultrasonically welded together to form a robust mesh.

The cells can be filled with sand, soil, or locally sourced materials, making it a versatile and cost-effective solution for a wide range of geotechnical applications.

This is the most effective solution for a variety of geotechnical applications.

This innovative system offers value-engineered solutions for various infrastructure projects, including driveways, highways, railways, landscapes, landfills, parking lots, and more.

Driveways, highways, railways, landscapes, landfills and parking lots are all examples of applications.

We will reduce overall project costs, minimise environmental impact and streamline pipelines. It is vital to reduce project costs, minimise environmental impact and streamline processes.

It delivers significant savings in both time and labour by reducing overall project costs and minimising environmental impact.

GEOCELL SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

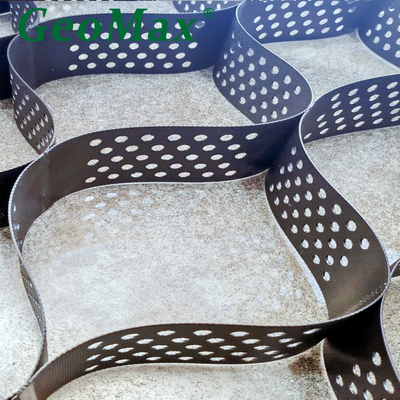

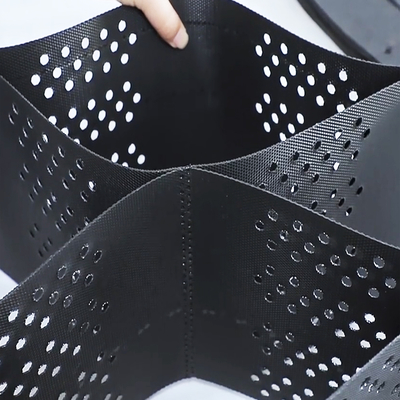

DETAILED PHOTOS

100mm Height 1.5mm Thickness HDPE Geocell Highway Construction ASTM D6993 ISO13426 Standard High Quality Control 0

100mm Height 1.5mm Thickness HDPE Geocell Highway Construction ASTM D6993 ISO13426 Standard High Quality Control 2

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

Welding space: 356mm
