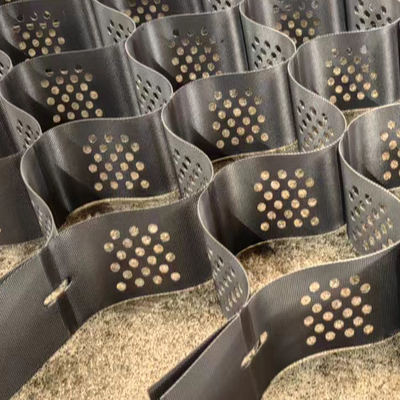

200mm Black HDPE Geocell for Road Base Stabilization High Tensile Strength 1,65mm Thickness 14.2kN/m Peeling Strength

Large Image : 200mm Black HDPE Geocell for Road Base Stabilization High Tensile Strength 1,65mm Thickness 14.2kN/m Peeling Strength

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM200-445

Payment & Shipping Terms:

Minimum Order Quantity:	3500 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	35000㎡ per day

Contact Now

200mm Black HDPE Geocell for Road Base Stabilization High Tensile Strength 1,65mm Thickness 14.2kN/m Peeling Strength

Description

Material:	Virgin HDPE	Cell Thickness:	1.65mm
Geocell Standard:	ASTM Or GB Standard	Cell Height:	200mm
Cell Size:	250-445	Surface Tone:	Green; Yellow;Black
Welding Distance:	445mm	Surface:	Smooth Textured Perforated
Density:	0.950 G/cm3	Slope Steepness:	4:1
Peeling Strength:	10-14.2kN/m	Seam Tensile Strength:	25mpa

200mm Black HDPE Geocell for Road Base Stabilization High Tensile Strength 1,65mm Thickness 14.2kN/m Peeling Strength

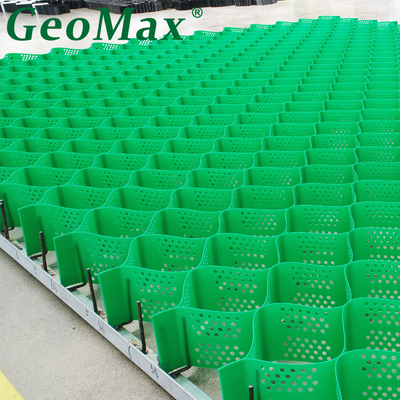

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® is a top innovator in geotechnical engineering, with a proven track record of over 20 years in developing cellular confinement systems. The company's got over 100 patented solutions in its tech portfolio, covering services like ground stabilisation, erosion control and soil reinforcement.

The geocells are really strong, flexible and long-lasting, so they're perfect for today's infrastructure and environmental challenges. All our products have got ISO and CE certification, and they're made to really high standards to make sure they're up to scratch worldwide.

GeoMax® offers fully customised solutions that are tailored to project-specific needs. We're all about engineering excellence and making sure our clients succeed, and we're helping to build smarter, stronger, and more sustainable ground systems all over the world.

GEOMAX® GEOCELL SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

HDPE GEOCELL APPLICATIONS

SOIL REINFORCEMENT

Geomax® (HDPE Geocell) has been identified as a solution for the stabilization or reinforcement of soil. This approach has been demonstrated to enhance the load-bearing capacity of pavements, thereby mitigating the risk of cracking.

SLOPE PROTECTION

Geomax® (Hdpe Geocell) is the optimal solution for slope protection or erosion control. The product exhibits both effective drainage capabilities and the capacity to provide slope protection.

CHANNEL PROTECTION

Geomax® (HDPE Geocell) has been found to contribute to stability and protection of channels.

It has been exposed to erosive conditions ranging from low to high flows, both intermittent and continuous.

RETAINING WALLS

Geomax® (Hdpe Geocell) has the potential to offer highly permeable properties, which could be suitable for a variety of planting pots. This could be an effective way to allow rainwater to infiltrate and minimize runoff.

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

CERTIFICATES

FAQ:

Q: What is Geocell made from?
A: GeoMax® Geocells are made from high-density polyethylene (HDPE), offering excellent strength and durability. Ultrasonic welding ensures structural integrity, while perforations allow for natural drainage and soil stability.

Q: Do special certifications are needed for exporting to other countries?
A: Customized certification support is provided for standards in different countries (e.g., US DOT, Australia AS/NZS) to ensure compliance with local engineering codes.

Q: Where is GeoMax Geocell produced?
A: GeoMax Geocell is produced in Anhui, China.

Q: Do you offer customized sizes?
A: Yes, we manufacture Geocell panels in custom sizes to meet your specific project requirements.

Q: How to handle slopes or irregular terrain when laying Geocell?
A: Geocell’s flexible design can adapt to slope gradients from 1:1 to 1:3. After fixing with anchors or soil nails, it effectively prevents soil landslides.
