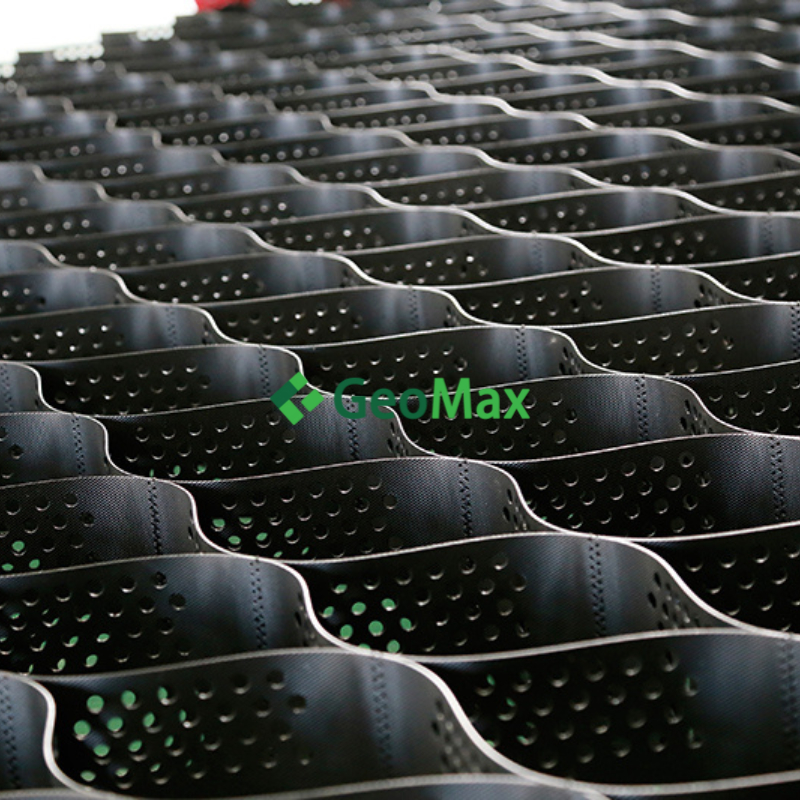

100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention

100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention
100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention 100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention 100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention 100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention

Large Image :  100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE,ISO9001-2015
Model Number: GM100-660
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day

100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention

Description
Geocell Material: 100% HDPE Plastic Cell Thickness: 1.65mm
Surface: Smooth Or Textured Surface HDPE Geocell Tensile Strength: 25kN/m
Quality Standard: ASTM; GB Standard Seam Peel Strength: 14.2 KN/m
Geocell Height: 100mm Geocell Color: Black;Yellow
Welding Distance: 660mm Density: 0.950 G/cm3
HPOIT: 400Min ESCR: 4999 Hours
Highlight:

HDPE geocell for slope stabilization

,

UV stabilized geocell landslide prevention

,

100mm thickness geocell steep slope

100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention



GEOCELL SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

















































DETAILED PHOTOS

100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention 0 100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention 1

100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention 2 100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention 3

APPLICATIONS

100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention 5

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention 8

INVENTION AND TESTING

100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention 9



PRODUCT AREA

100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention 10







100mm Thickness HDPE UV Stabilized Geocell for Steep Slope Stabilization Landslide Prevention 11



  • Q: In which specific projects is Geocell suitable?
    A: Widely used in road subbases, parking lots, riverbank revetments, golf courses, airport runway foundations, mine storage areas, etc.—especially for projects requiring fast construction or high environmental standards.
  • Q: How does Geocell integrate with vegetation in ecological slope protection projects?
    A: After filling Geocell with soil, it can be sown with grass seeds or planted with shrubs. The honeycomb structure stabilizes soil to prevent erosion while providing space for root growth, achieving dual effects of ecological greening and slope reinforcement.
  • Q: Does Geocell comply with environmental standards in municipal projects?
    A: HDPE is recyclable and free of harmful substances, conforming to EU EN13242 and US ASTM D618 standards—suitable for eco-friendly municipal projects.
  • Q: What are the advantages of Geocell's honeycomb structure design?
    A: The honeycomb structure distributes load pressure, reducing material usage by over 50% compared to traditional materials (e.g., concrete). It also enhances foundation stability and deformation resistance, making it ideal for soft soil reinforcement.
  • Q: How does Geocell perform in terms of UV resistance?
    A: The HDPE material is added with UV-resistant additives, effectively preventing material aging caused by long-term sunlight. Its service life is not affected by outdoor lighting.
  • Q: Will Geocell deform in low or high temperatures?
    A: HDPE has a temperature resistance range of -70°C to +110°C, maintaining structural stability in extreme temperatures. It is suitable for cold regions or high-temperature industrial scenarios.
