100mm Height 660mm Weld Geocell for Cost-Efficient MSE Wall Construction Retaining Wall High Quality Standard for Dubai Projects

Large Image : 100mm Height 660mm Weld Geocell for Cost-Efficient MSE Wall Construction Retaining Wall High Quality Standard for Dubai Projects

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM100-660

Payment & Shipping Terms:

Minimum Order Quantity:	3000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

100mm Height 660mm Weld Geocell for Cost-Efficient MSE Wall Construction Retaining Wall High Quality Standard for Dubai Projects

Description

Material:	High Density Polyethylene	Geocell Thickness:	1.55mm
Geocell Standard:	ASTM; GB Standard	Geocell Height:	100mm
Geocell Surface:	Textured&Non Perforated	Welded Distance:	660mm
HDPE Geocell Density:	0.950 G/cm3	Carbon Black:	1.5%
Peeling Strength:	12-14.2kN/m	HDPE Geocell Our Minimum Quantity:	3000m2
Geocell ESCR:	4999hours	Geocell HPOIT:	400min
Elongation At Break:	9%-15%
Highlight:	100mm height HDPE geocell , 660mm weld geocell for MSE walls , geocell for retaining wall construction

100mm Height 660mm Weld Geocell for Cost-Efficient MSE Wall Construction Retaining Wall High Quality Standard for Dubai Projects

GEOMAX SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

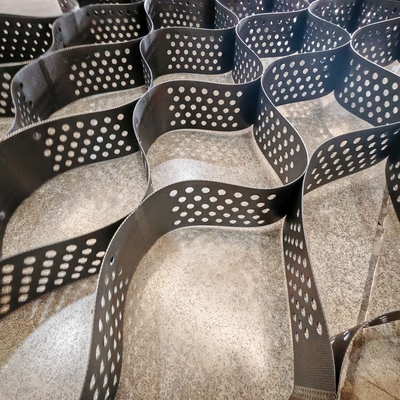

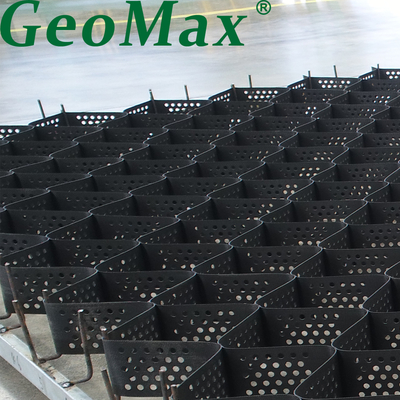

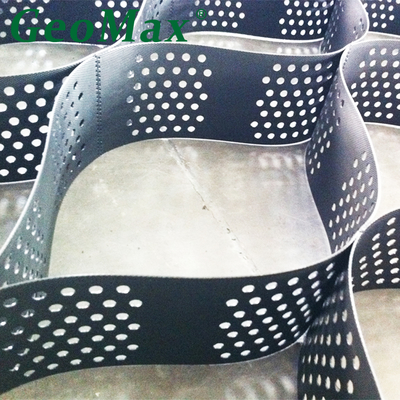

HDPE GEOCELL DETAILED PHOTOS

100mm Height 660mm Weld Geocell for Cost-Efficient MSE Wall Construction Retaining Wall High Quality Standard for Dubai Projects 0

100mm Height 660mm Weld Geocell for Cost-Efficient MSE Wall Construction Retaining Wall High Quality Standard for Dubai Projects 2

HDPE GEOCELL APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

GEOCELL PRODUCTION LINE

GEOMAX INVENTION AND TESTING

GEOMAX PRODUCT AREA

GEOMAX CERTIFICATES

PHOTO OF THE EXHIBITION

100mm Height 660mm Weld Geocell for Cost-Efficient MSE Wall Construction Retaining Wall High Quality Standard for Dubai Projects 12

FAQ:

Q: Can Geocell be used for river and canal bank protection?

A: Yes, Geocell is effective for river and canal bank protection. It resists water erosion, stabilizes the bank, and can be combined with vegetation to create a natural and ecological bank protection system.

Q: Is Geocell applicable to parking lot construction?

A: Definitely. Using Geocell in parking lot construction can reduce the thickness of the pavement structure, lower costs, and improve the bearing capacity to handle vehicle loads.

Q: Can Geocell be used in landfill engineering?

A: Yes, Geocell can be used in landfill engineering to reinforce the landfill cover and base, prevent soil deformation, and help control the migration of leachate.

Q: What is the application of Geocell in mining areas?

A: In mining areas, Geocell can be used for reinforcing haul roads, stabilizing mine dumps, and reclaiming land, helping to reduce environmental damage and improve engineering stability.

Q: Can Geocell be used for ecological restoration projects?

A: Yes, Geocell is widely used in ecological restoration. It can stabilize slopes, prevent soil erosion, and provide a suitable environment for vegetation growth, promoting ecological recovery.

Q: Is Geocell suitable for sports field construction?

A: Geocell can be used in sports field construction, such as for reinforcing the base of football fields or golf courses, improving drainage and stability, and ensuring a good playing surface.

Q: How does Geocell perform in seismic zones?

A: Its flexible structure can absorb and disperse seismic energy, reducing the impact of earthquakes on structures. The lateral confinement it provides helps maintain soil stability during seismic activity, making it a viable option for construction in seismic zones.

Q: What is the creep resistance of Geocell?

A: Creep resistance refers to the ability to resist long-term deformation under constant load. High-quality Geocell is designed with good creep resistance, ensuring that it doesn't undergo excessive deformation over time, which is crucial for maintaining the stability of engineering structures.

Q: Can Geocell be used in high-water-table areas?

A: Yes, Geocell can be used in high-water-table areas. Its drainage performance helps reduce water pressure, and the material's water resistance prevents degradation, ensuring stable performance even in moist environments.

Q: How does the cell shape affect Geocell's performance?

A: Common cell shapes include hexagonal and square. Hexagonal cells distribute stress more evenly, providing better overall stability, while square cells may be easier to manufacture and install in certain scenarios. The choice depends on specific project requirements.

Q: What is the puncture resistance of Geocell?

A: Geocell has moderate puncture resistance, but it can be damaged by sharp objects. During construction, care should be taken to avoid contact with sharp stones or tools. In areas with high puncture risks, thicker or reinforced Geocell can be selected.
