150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China

150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China
150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China
150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China 150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China 150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China 150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China

Large Image :  150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE,ISO9001-2015
Model Number: GM150-445
Payment & Shipping Terms:
Minimum Order Quantity: 2000 ㎡
Price: Negotiation

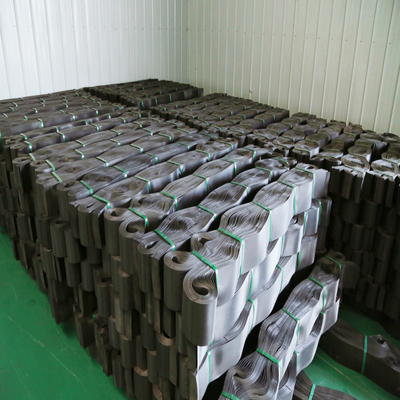

Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day
Contact Now

150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China

Description
Geocell Material: 100% HDPE Cell Thickness: 1.1-1.5mm
Surface: Smooth Textured Surface Tensile Strength: 25kN/m
Quality Standard: ASTM; GB Standard;ISO-9001-2015 Seam Peel Strength: 14.2 KN/m
Height: 150mm Color: Black
Welding Distance: 445mm Density: 0.950 G/cm3
OIT: 100Min

150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is a high-performance three-dimensional cellular structure crafted from high-density polyethylene (HDPE) sheets. These sheets are bonded together using ultrasonic welding technology to create a sturdy mesh framework.

The cells within this structure can be filled with sand, soil, or locally available materials, which makes it a flexible and cost-efficient option for numerous geotechnical uses. In fact, it stands as one of the most effective solutions for addressing a broad spectrum of geotechnical challenges.

This cutting-edge system provides value-optimized solutions for a variety of infrastructure initiatives, such as driveways, highways, railways, landscape projects, landfills, parking areas, and beyond—all of which serve as typical application scenarios for the product.

By leveraging this system, we can lower overall project expenses, reduce environmental footprint, and optimize workflow efficiency. These goals—cutting project costs, minimizing environmental impact, and streamlining processes—are crucial for successful project execution.

Additionally, it generates substantial time and labor savings, as it directly contributes to reducing total project costs while lessening environmental consequences.

GEOCELL SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

















































DETAILED PHOTOS

150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China 0 150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China 1

150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China 2 150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China 3

APPLICATIONS

150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China 5

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China 8

INVENTION AND TESTING

150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China 9



PRODUCT AREA

150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China 10

FAQ:

  1. Q: For airport taxiways that need to bear the load of large civil aircraft (such as Boeing 747), what performance indicators should Geocell meet?​
A: Geocell for airport taxiways should have high strength and stability. Key indicators include: tensile strength ≥ 30MPa, elongation at break ≤ 15%, creep rate ≤ 2% under 30% of the ultimate load, UV resistance (after 500h UV aging test, tensile strength retention rate ≥ 85%), and compressive modulus ≥ 500MPa. Additionally, the Geocell should be tested for plate load under simulated aircraft load (1.2 times the design load), requiring no obvious deformation (settlement ≤ 5mm) after 1000 load cycles.​
  1. Q: How to use Geocell to reinforce the airport runway subgrade in soft soil areas to meet the strict flatness requirements?​
A: First, carry out ground treatment: use dynamic compaction to compact the soft soil (compaction energy 2000 - 3000kN·m) to improve the bearing capacity. Then, lay a 300g/m² non - woven geotextile, and unfold the Geocell (cell height 200mm, cell side length 400mm) on the geotextile. Connect adjacent Geocell panels by welding (welding width ≥ 50mm) to ensure a seamless connection. Fill the Geocell with cement - stabilized macadam (cement content 6% - 8%) in layers (layer thickness 100mm), and compact each layer with a 20t vibratory roller to a compaction degree of ≥ 98%. After filling, use a laser leveler to level the surface, ensuring the flatness error ≤ 3mm/3m.​
  1. Q: Can Geocell be used for the construction of airport apron areas, and what are the considerations for aircraft parking?​
A: Yes. The apron area should use Geocell with a cell height of 150 - 200mm and a tensile strength ≥ 25MPa. The filling material should be C40 concrete - filled crushed stone (particle size 20 - 40mm) to ensure high bearing capacity. For aircraft parking positions, the Geocell should be reinforced: increase the cell density (reduce the cell side length to 250mm) and use double - layer Geocell (total height 300mm) to withstand the concentrated load of the aircraft landing gear. Additionally, the surface of the Geocell - filled area should be covered with a 100mm thick C35 concrete slab, and expansion joints should be set every 6m to prevent cracking due to temperature changes.​
  1. Q: How to protect Geocell from damage by airport ground service equipment (such as aircraft tugs and fuel trucks) during use?​
A: First, the Geocell - reinforced area should be marked with clear boundaries (using yellow paint) to avoid equipment exceeding the scope. Second, lay a 10mm thick wear - resistant rubber sheet on the surface of the Geocell - filled area where ground service equipment frequently passes to reduce wear. Third, choose Geocell with high wear resistance (abrasion loss ≤ 50mg after 1000 cycles of wear test). Additionally, regularly inspect the Geocell area, and repair any damaged parts in a timely manner (replace the damaged Geocell and refill with new material).





150mm Black HDPE Geocell for Spillway Outfall Erosion Control OIT 100min High Strength Manufacturer In China 11
