HDPE Cellular Confinement Solution Designed for Green Slopes and Soil Stability

Name: HDPE Cellular Confinement Solution Designed for Green Slopes and Soil Stability
Brand: Anhui Hechuang New Synthetic Materials Co., Ltd
SKU: GM100-445
Price: 9.50 USD
Availability: InStock

All Products

HDPE Geocell
(360)

Slope Protection Geocell
(105)

Geocell For Road Construction
(85)

Erosion Control Geocell
(27)

Geocell Ground Grid
(6)

Geo Cell Grid
(7)

Geobin Compost Bin
(10)

HDPE Liner Sheet
(11)

Soil Reinforcement Geogrid
(20)

HDPE Geomembrane Sheet
(10)

Geotextile Fabric
(0)

Certification

Customer Reviews

HCNS team is trustworthy, I have a project that needs Geocells, they offer me the right Geocell type and send free samples to us, after checking their samples, we buy and do our project very perfectly. Once we have a project for Geocell in the future, we will definitely cooperate with you again.

—— Tony

I'm Online Chat Now

HDPE Cellular Confinement Solution Designed for Green Slopes and Soil Stability

Large Image : HDPE Cellular Confinement Solution Designed for Green Slopes and Soil Stability

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM100-445

Payment & Shipping Terms:

Minimum Order Quantity:	3000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

HDPE Cellular Confinement Solution Designed for Green Slopes and Soil Stability

Description

Material:	100% HDPE Plastic	Thickness:	1.2-1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard；	Peel Strength:	14.2 KN/m
Height:	100mm	Color:	Black;Yellow;Green
Welding Distance:	445mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM
Highlight:	HDPE geocell for green slopes , cellular confinement soil stability , HDPE geocell slope stabilization

Textured HDPE Geocell Cellular Structure for Vegetated Slope Protection and Long-Term Ground Support

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax specializes in the design and manufacture of high-quality geocell and geosynthetic solutions for soil stabilization and ground reinforcement.
Our HDPE geocell systems are engineered to improve load distribution, enhance slope stability, and effectively control erosion in a wide range of civil and infrastructure applications, including roads, slopes, embankments, retaining structures, and green engineering projects.

Manufactured from high-density polyethylene with strict quality control, GeoMax geocells offer excellent durability, long service life, and reliable performance even under harsh environmental conditions. By combining structural confinement with natural fill materials, our products provide a cost-effective and sustainable solution for long-term ground support.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

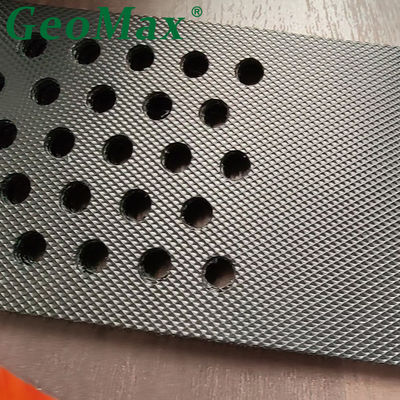

DETAILED PHOTOS

HDPE Cellular Confinement Solution Designed for Green Slopes and Soil Stability 0

HDPE Cellular Confinement Solution Designed for Green Slopes and Soil Stability 2

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

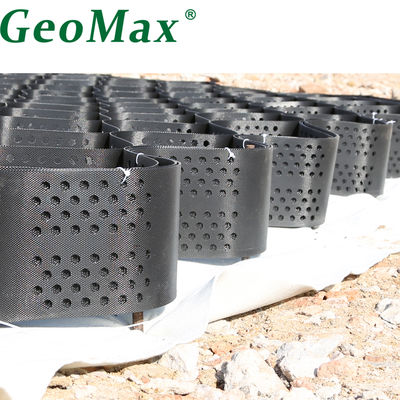

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

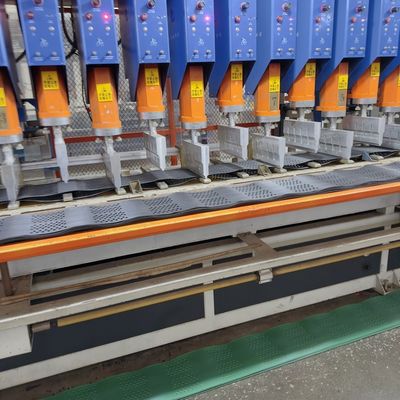

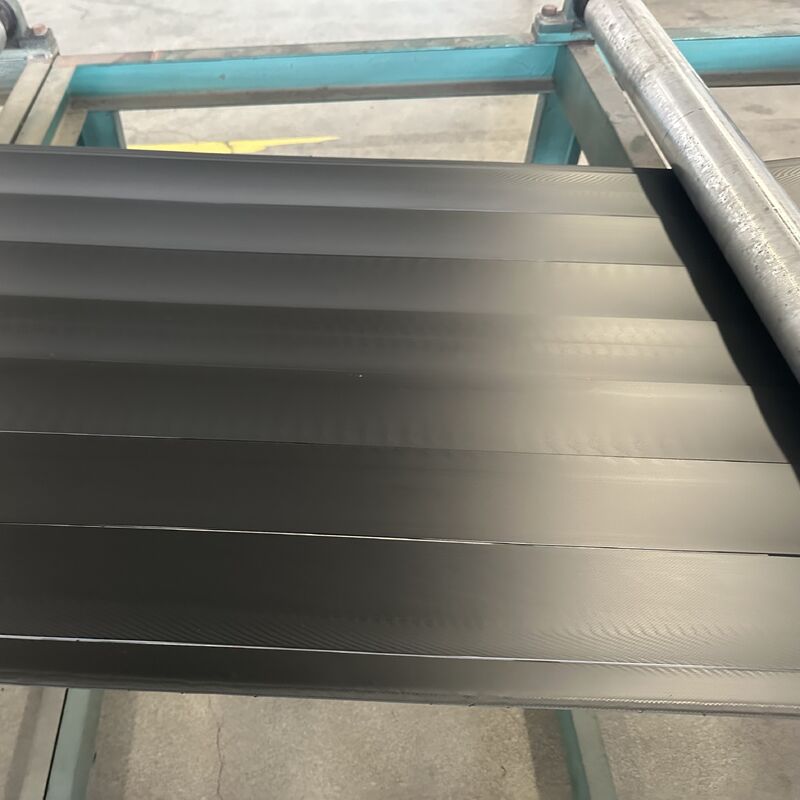

PRODUCTION LINE

INVENTION AND TESTING

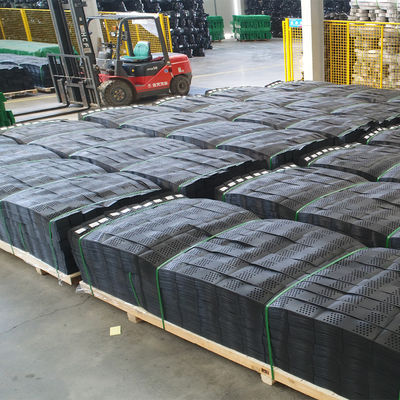

PRODUCT AREA

FAQ:

1. What is a geocell?

A geocell is a three-dimensional cellular confinement system made from polymer sheets that are welded together to form a honeycomb-like structure for soil reinforcement and stabilization.

2. How does a geocell system work?

Geocells confine infill materials such as soil, sand, or aggregate within individual cells, creating a semi-rigid structure that distributes loads laterally and vertically.

3. What materials are geocells usually made of?

Most geocells are manufactured from high-density polyethylene (HDPE) due to its flexibility, chemical resistance, and long-term durability.

4. What are the main applications of geocells?

Geocells are widely used for slope protection, load support, road base reinforcement, retaining walls, erosion control, and channel lining.

5. Can geocells be used on soft soil?

Yes. Geocells are especially effective on weak or soft subgrades, as they significantly improve bearing capacity and reduce settlement.
