Railway Embankment Stabilization Welded Geocell 150mm Height HDPE Green ESCR

Large Image : Railway Embankment Stabilization Welded Geocell 150mm Height HDPE Green ESCR

Product Details:

Place of Origin:	ANHUI,CHINA
Brand Name:	GeoMax
Certification:	CE And ISO9001-2015
Model Number:	GM150-356

Payment & Shipping Terms:

Minimum Order Quantity:	3300 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

Railway Embankment Stabilization Welded Geocell 150mm Height HDPE Green ESCR

Description

Material:	High Density Polyethylene	Thickness:	1.2mm-1.5mm
HDPE Geocell Standard:	ASTM Or GB Standard	HDPE Geocell Height:	100mm
Surface:	Textured& Perforated	Welded Distance:	356mm
HDPE Geocell Density:	0.950 G/cm3	Geocell Carbon Black:	1.5%
Peeling Strength:	10-14.2kN/m	Tensile Strength:	25kN/m
HDPE Geocell Our Minimum Quantity:	3300m2

Railway Embankment Stabilization Welded Geocell 150mm Height HDPE Green ESCR

PRODUCT INTRODUCTION

GeoMax® Geocells are high-performance, three-dimensional honeycomb structures made of
We're so excited to tell you about our Reinforced High-Density Polyethylene (HDPE) sheets! They're ultrasonically welded together to form a strong mesh, making them incredibly durable and reliable. These geocells are incredibly versatile and cost-effective, making them a go-to solution for a wide range of geotechnical applications. You can fill them with sand, soil, or whatever materials you have on hand — whatever works best for you!

GEOCELL SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

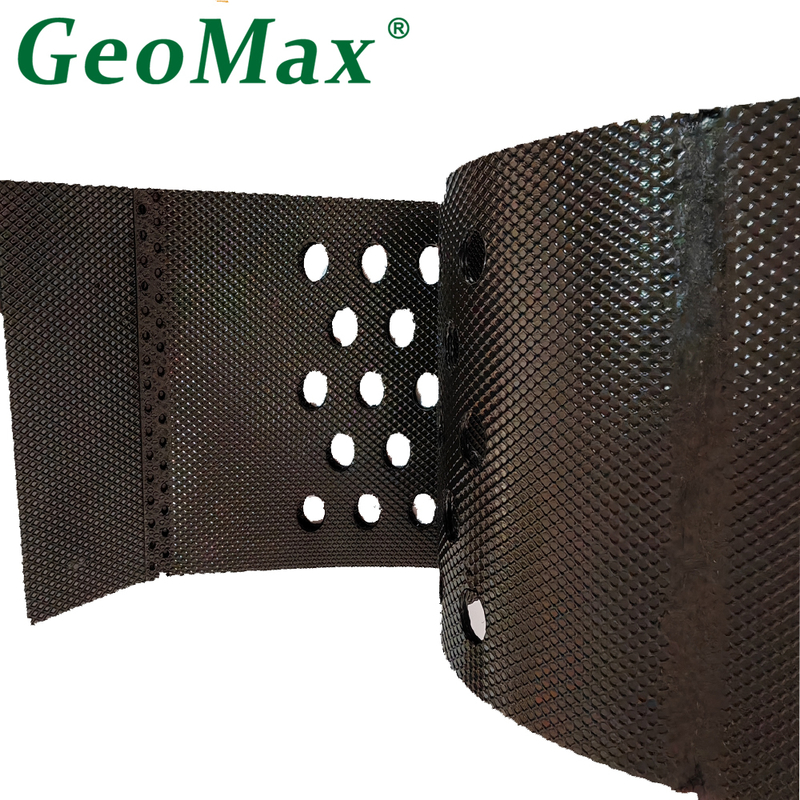

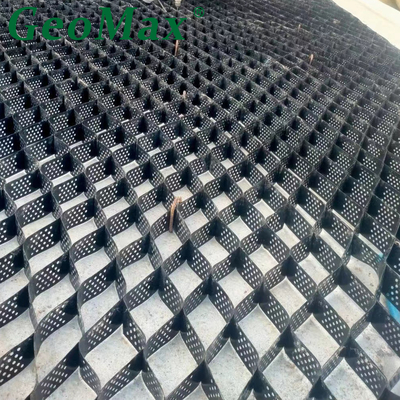

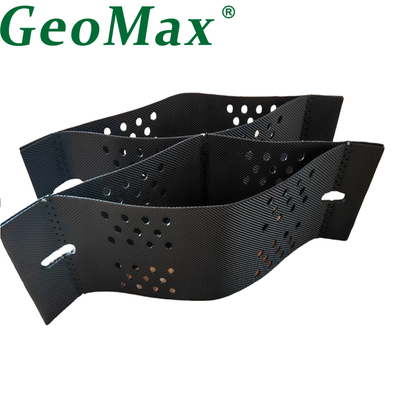

GEOMAX DETAILED PHOTOS

Railway Embankment Stabilization Welded Geocell 150mm Height HDPE Green ESCR 0

GEOCELL APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

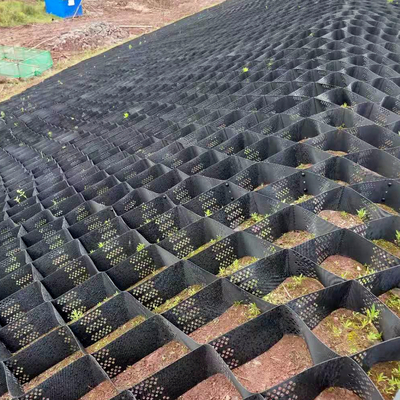

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

GEOMAX CERTIFICATES

FAQ:

Q: Does the product have a warranty? How does after-sales service work during the warranty period?
A: A 10-year warranty is offered. For damage due to material defects within the warranty period, free replacement is provided. The after-sales team responds within 24 hours and provides solutions within 48 hours.

Q: In which specific projects is Geocell suitable?
A: Widely used in road subbases, parking lots, riverbank revetments, golf courses, airport runway foundations, mine storage areas, etc.—especially for projects requiring fast construction or high environmental standards.

Q: How to prevent infill loss?
A:Top Layer Geotextile: Prevents washout.

Use Cohesive Soil-Crushed Stone Mix.

Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.

Q: Do you offer customized sizes?
A: Yes, we manufacture Geocell panels in custom sizes to meet your specific project requirements.

Q: Will Geocell deform in low or high temperatures?
A: HDPE has a temperature resistance range of -70°C to +110°C, maintaining structural stability in extreme temperatures. It is suitable for cold regions or high-temperature industrial scenarios.

Q: Where can Geocells be used?
A:Roads/Railways: Load distribution over weak subgrades.

Slopes: Erosion control and vegetation support.

Temporary Access Roads: Rapid deployment on soft ground.

Retaining Walls: Cost-effective alternative to gabions.

Q: Are Geocells eco-friendly?
A:Recyclable: HDPE can be repurposed.

Vegetation-Compatible: Some designs allow root penetration.
